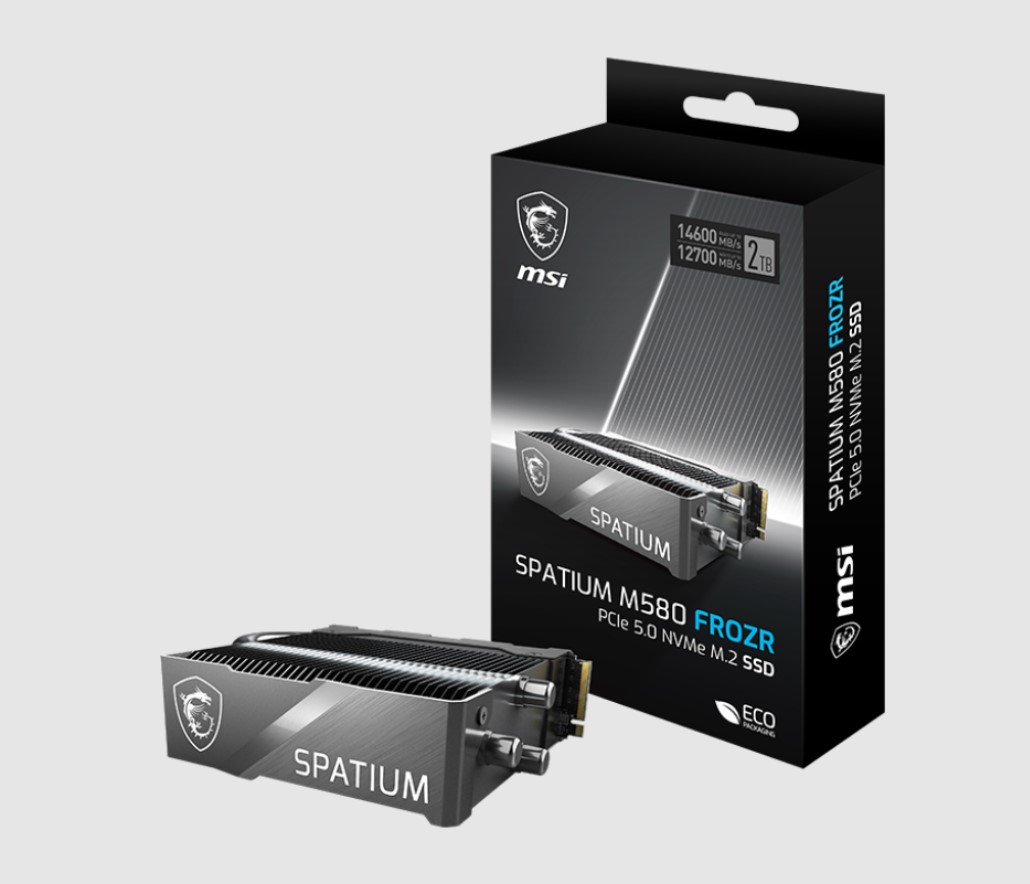

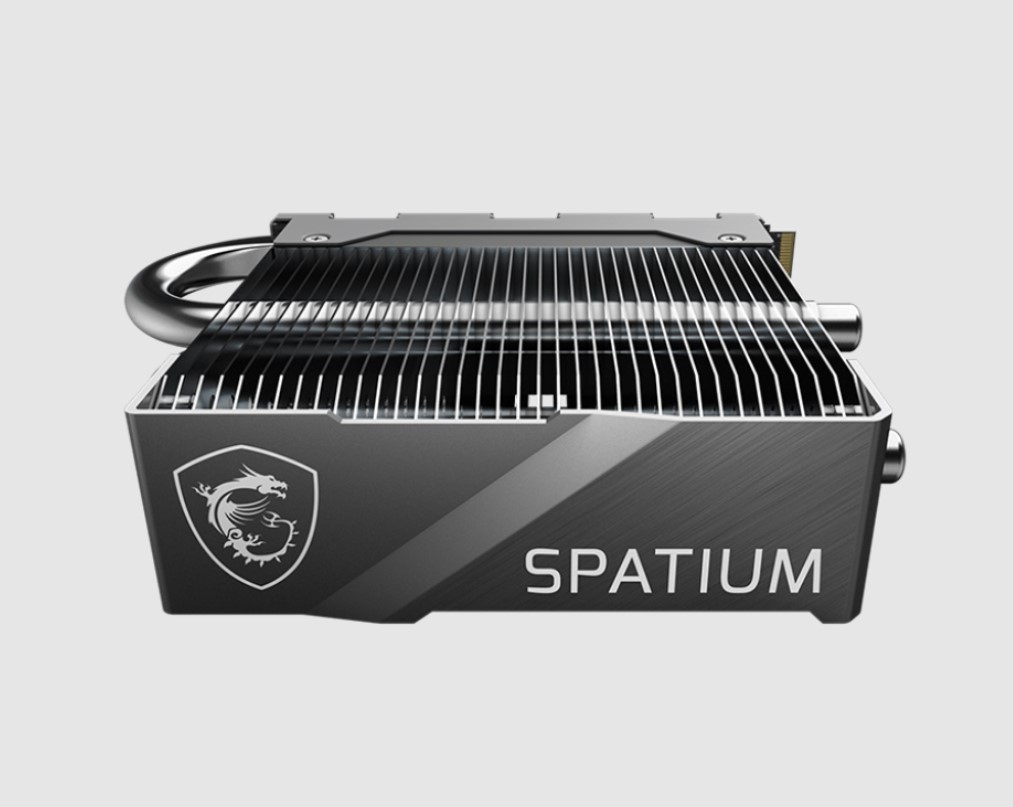

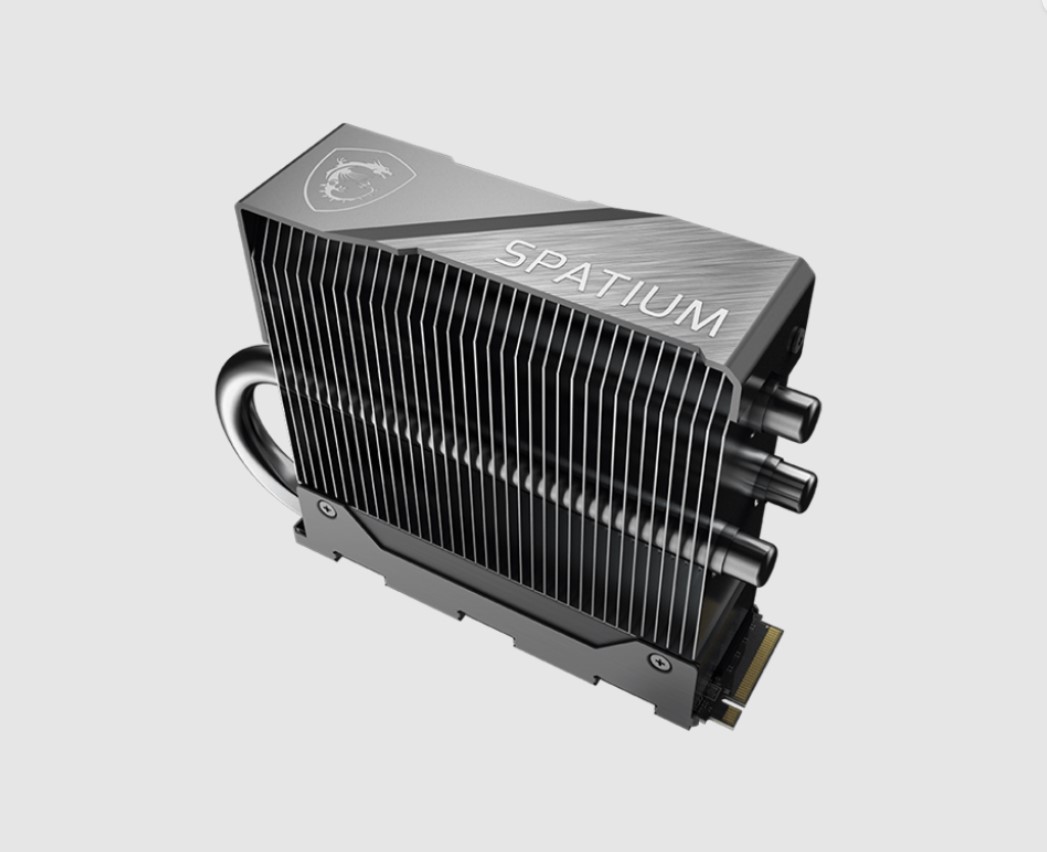

MSI SPATIUM M580 PCIe 5.0 NVMe M.2 FROZR 2TB, 4GB LPDDR4, Sequential Read up to 14600MB/s, Sequential Write up to 12700MB/s, 1400 TBW, 5 Year Warranty | SPATIUM M580 PCIe 5.0 NVMe M.2 2TB FROZR

MSI SPATIUM M580 PCIe 5.0 NVMe M.2 FROZR 2TB, 4GB LPDDR4, Sequential Read up to 14600MB/s, Sequential Write up to 12700MB/s, 1400 TBW, 5 Year Warranty

SPECIFICATION

CAPACITY 2TB
CONTROLLER PHISON E26
FLASH MEMORY 3D NAND
DRAM Cache 4GB LPDDR4
FORM FACTOR M.2 2280
INTERFACE PCIe Gen5x4, NVMe 2.0
COMPATIBILITY PCIe Gen5 / Gen4 / Gen3 / Gen2 / Gen1
DIMENSIONS 94.80mm (L) x 24.00mm (W) x 71.65mm (H)

SEQUENTIAL READ UP TO (MB/S): 14,600
SEQUENTIAL WRITE UP TO (MB/S): 12,700
MAXIMUM OPERATING POWER (W): 11.5
IDLE POWER PS3 (MW): 144
LOW POWER L1.2 (MW): 85
OPERATING TEMPERATURES: 0°C – 70°C
STORAGE TEMPERATURES: -40°C – 85°C
TERABYTES WRITTEN (TBW): 1400
MEAN TIME BETWEEN FAILURE (MTBF): Up to 1,600,000 Hours

LIMITED WARRANTY: 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

ADVANCED FEATURES
TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
Pyrite (Encryption, Data Security)
