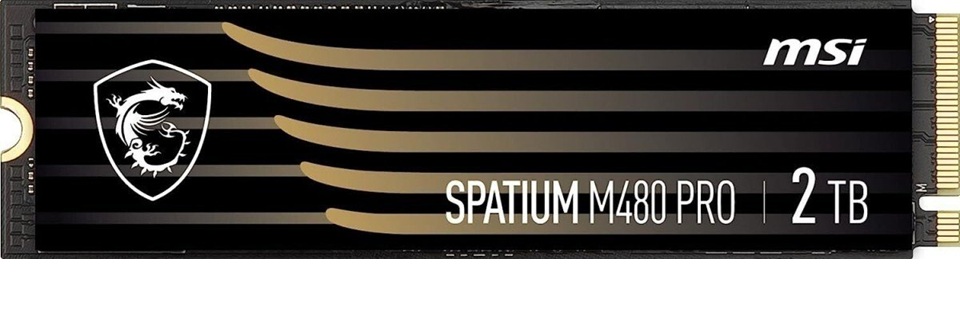

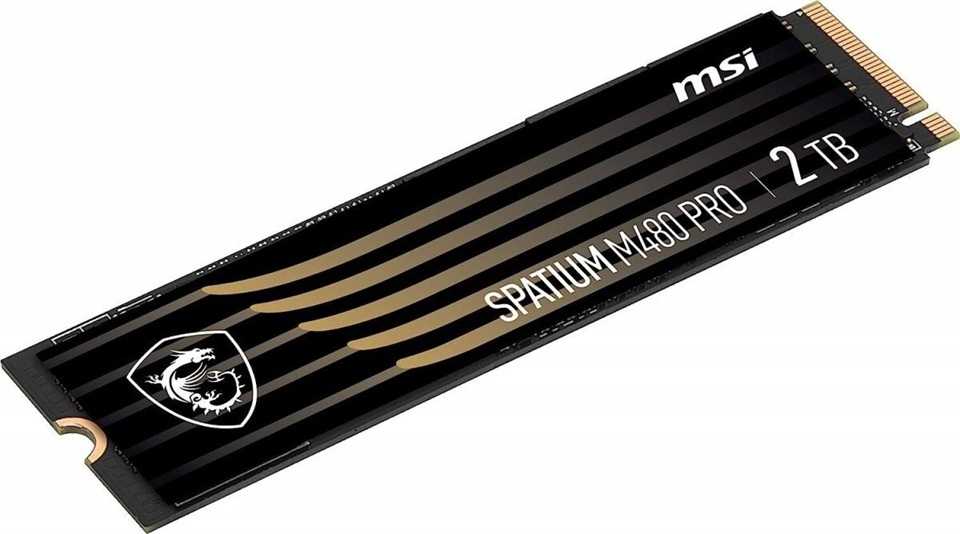

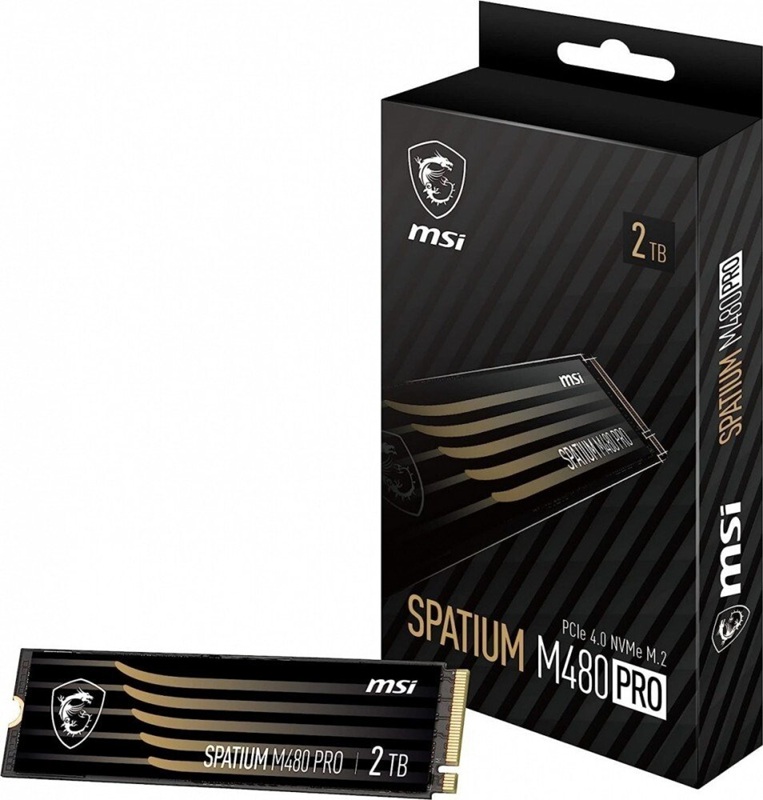

MSI SPATIUM M480 PRO PCIe 4.0 NVMe M.2 2TB SSD, 2GB DDR4, Sequential Read up to 7400MB/s, Sequential Write up to 7000MB/s, 1400 TBW, 5 Year Warranty | SPATIUM M480 PRO PCIe 4.0 NVMe M.2 2TB

MSI SPATIUM M480 PRO PCIe 4.0 NVMe M.2 2TB SSD, 2GB DDR4, Sequential Read up to 7400MB/s, Sequential Write up to 7000MB/s, 1400 TBW, 5 Year Warranty

SPECIFICATION

Model Name
SPATIUM M480 PCIe 4.0 NVMe M.2

Capacity
2TB

Controller
PHISON E18

Flash Memory
3D NAND

Dram Cache
2GB DDR4

Form FActor
M.2 2280

Interface
PCIe Gen4x4, NVMe 1.4

Compatibility
PCIe Gen4 / Gen3 / Gen2 / Gen1

Dimensions
80.00mm (L) x 22.00mm (W) x 2.15mm (H)

Sequential Read up to (MB/s)
7400

Sequential Write up to (MB/s)
7000

Random Read 4KB up to (IOPS)
1,000,000

Random Write 4KB up to (IOPS)
1,000,000

Maximum Operating Power (W)
10.5

Idle Power PS3 (mW)
45

Low Power L1.2 (mW)
3

Operating Temperatures
0°C – 70°C

Storage Temperatures
-40°C – 85°C

Terabytes Written (TBW)
1400

Mean Time Between Failure (MTBF)
Up to 1,600,000 Hours

Limited Warranty
5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

Advanced Features
TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/Pyrite (Encryption, Data Security)

Product Last Updated: 23/11/2025
