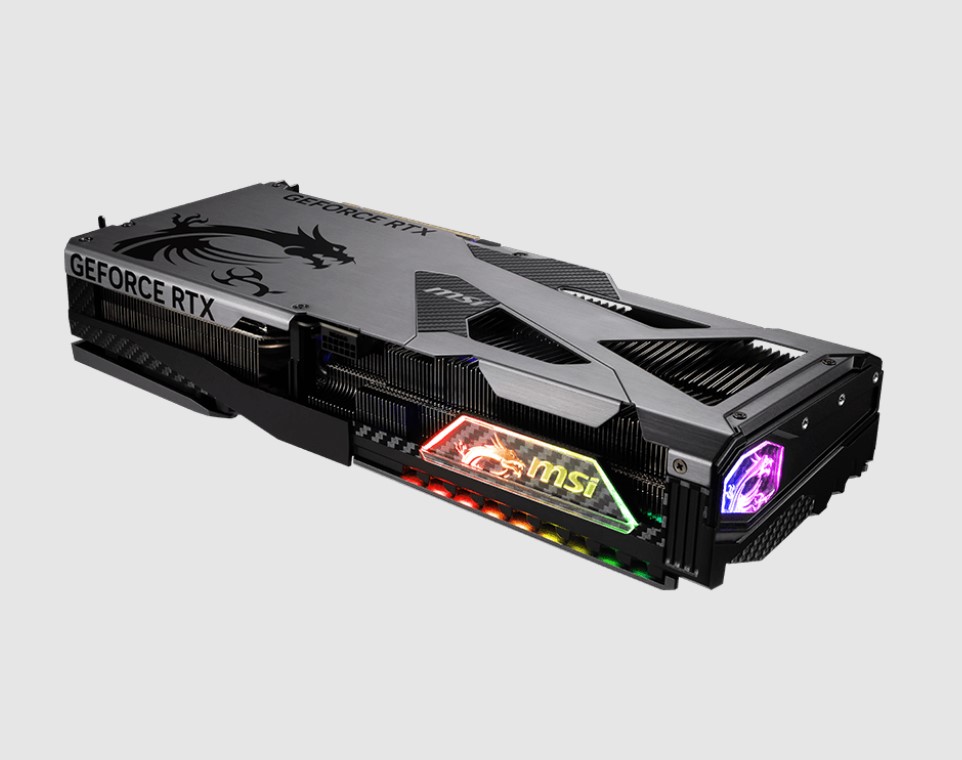

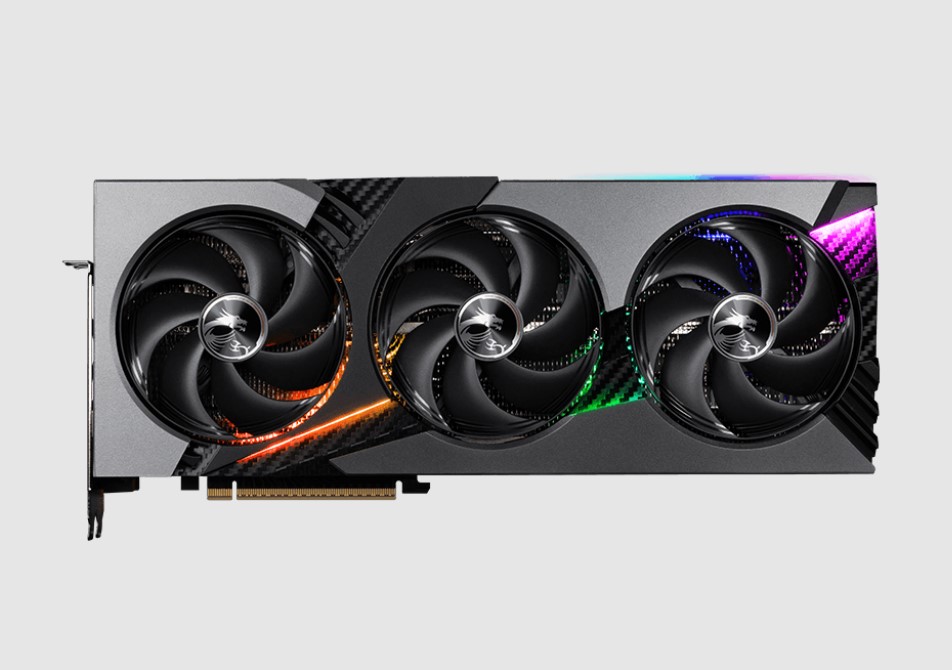

MSI nVidia GeForce RTX 5070 12G VANGUARD SOC, PCI Express® Gen 5, Boost: 2640 MHz, CUDA 6144 Units, 12GB GDDR7, HDMI™ x 1, 192-bit | GeForce RTX 5070 12G VANGUARD SOC

MSI nVidia GeForce RTX 5070 12G VANGUARD SOC, PCI Express® Gen 5, Boost: 2640 MHz, CUDA 6144 Units, 12GB GDDR7, HDMI™ x 1, 192-bit

SPECIFICATIONS

Marketing Name GeForce RTX™ 5070 12G VANGUARD SOC
Model Name G5070-12VGS
Graphics Processing Unit NVIDIA® GeForce RTX™ 5070
Interface PCI Express® Gen 5
Core Clocks Extreme Performance: 2655 MHz (MSI Center)
Boost: 2640 MHz
CUDA® CORES 6144 Units
Memory Speed 28 Gbps
Memory 12GB GDDR7
Memory Bus 192-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 250W
Power connectors 16-pin x 1
Recommended PSU 650W
Card Dimension (mm) 337 x 140 x 61 mm
Weight (Card / Package) 1503 g / 2296 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

FEATURES

HYPER FROZR THERMAL DESIGN
An apex evolution of advanced thermal design that delivers
unparalleled cooling and quiet operation.
STORMFORCE FAN
Seven fan blades, claw texturing, and a circular arc are designed
for optimal airflow with minimal noise.
Advanced Vapor Chamber
Built-in Vapor Chamber swiftly transfers heat from the GPU and
VRAM to the core pipe for optimal dissipation.
Core Pipes
Core Pipes feature a square design to maximize contact with the
GPU baseplate for optimal thermal management.
Filled Fins
Updated heat pipe pathing has allowed more space for additional
heatsink fins.
Air Antegrade Fin 2.0
The fins feature a V-shaped cutout and a high-low design at the
airflow passthrough to optimize flow efficiency.
Wave Curved 4.0
Precision-engineered wave edges with a high-low fin design
enhance airflow and reduce turbulence.
Metal Backplate
A reinforcing metal backplate with airflow vents and thermal pads
enhances cooling.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.

Product Last Updated: 11/12/2025
