MSI nVidia GeForce RTX™ 5060 Ti 16G INSPIRE 2X OC, PCI Express® Gen 5 x16, Boost: 2617 MHz, CUDA 4608 Units, 16GB GDDR7, HDMI™ x 1 | GeForce RTX 5060 Ti 16G INSPIRE 2X OC

MSI nVidia GeForce RTX™ 5060 Ti 16G INSPIRE 2X OC, PCI Express® Gen 5 x16, Boost: 2617 MHz, CUDA 4608 Units, 16GB GDDR7, HDMI™ x 1
SPECIFICATIONS

Marketing Name GeForce RTX™ 5060 Ti 16G INSPIRE 2X OC
Model Name G506T-16I2C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti
Interface PCI Express® Gen 5 x16 (uses x8)
Core Clocks Extreme Performance: 2632 MHz (MSI Center)
Boost: 2617 MHz
CUDA® CORES 4608 Units
Memory Speed 28 Gbps
Memory 16GB GDDR7
Memory Bus 128-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 180W
Power connectors 8-pin x1
Recommended PSU 600 W
Card Dimension (mm) 204 x 117 x 50 mm
Weight (Card / Package) 657g / 927g
DirectX Version Support 1 2 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

FEATURES

Dual Fan
Two fans and a huge heatsink ensure a cool and quiet experience
for you.
STORMFORCE FAN
Seven fan blades, claw texturing, and a circular arc are designed
for optimal airflow with minimal noise.
Nickel-plated Copper Baseplate
Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.
Core Pipes
Core Pipes feature a square design to maximize contact with the
GPU baseplate for optimal thermal management.

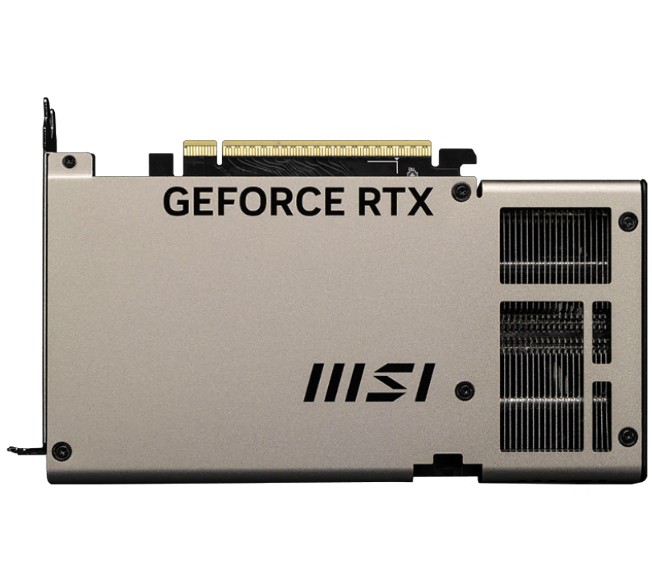

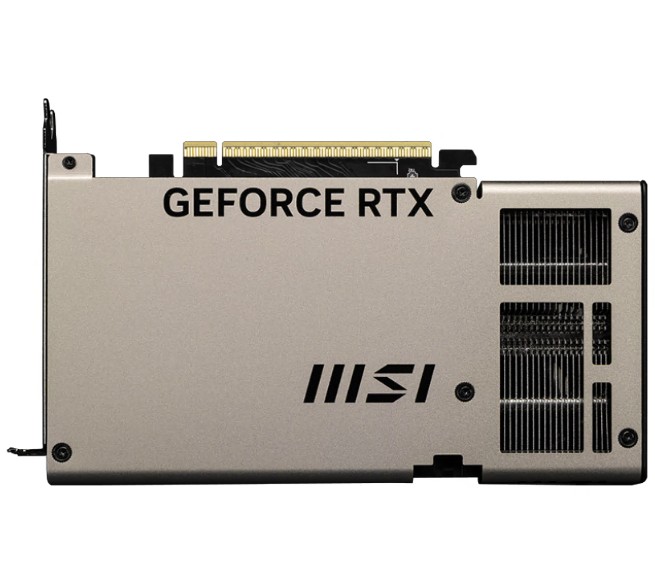

Metal Backplate
A sturdy metal backplate strengthens the graphics card while the
airflow vent design reduces excess heat.
Zero Frozr
The fans completely stop when temperatures are relatively low,
eliminating all noise.
Air Antegrade Fin
Fins with a V-shaped cutout are located at the airflow
passthrough to improve flow efficiency.
Wave Curved 3.0
Additional efficiency is gained by adjusting the size of the wave
edges under the fan motor and other spots where there is less
airflow.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.
