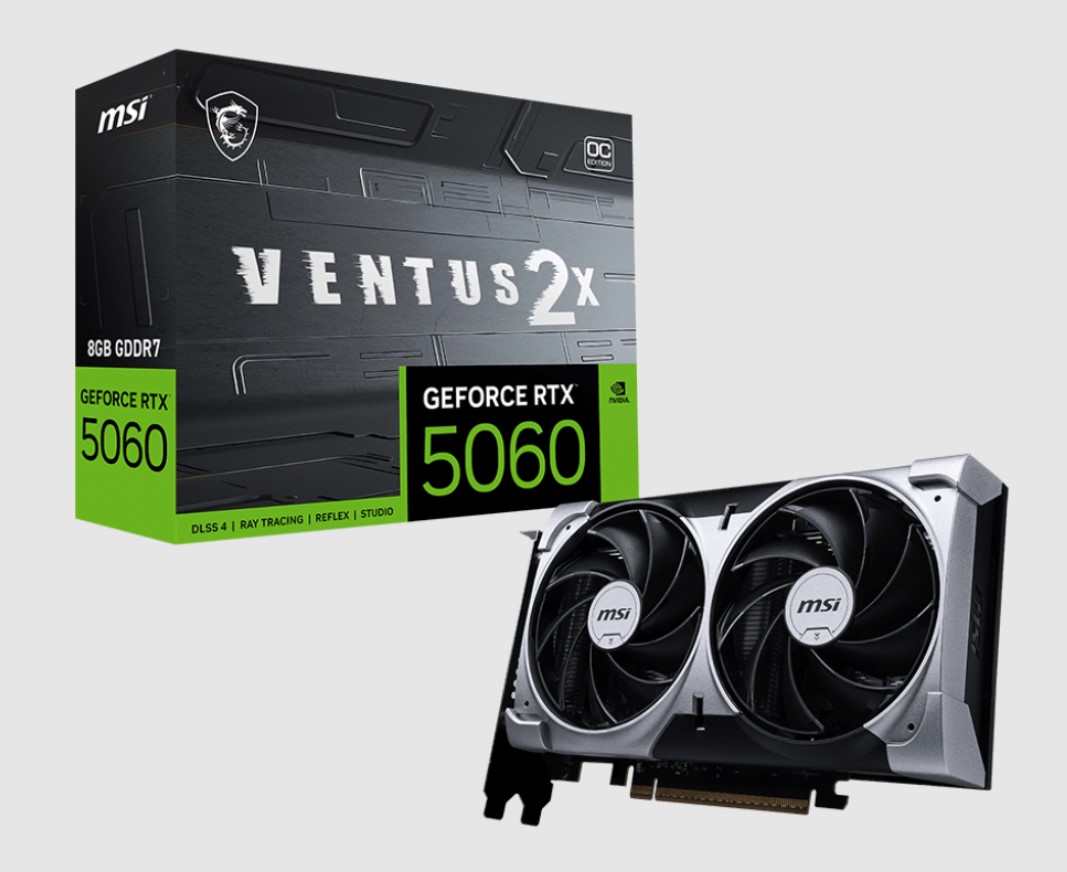

MSI nVidia GeForce RTX 5060 8G VENTUS 2X OC, PCI Express® Gen 5 x16, Boost: 2527 MHz, CUDA 3840 Units, 8GB GDDR7, . HDMI™ x 1 | GeForce RTX 5060 8G VENTUS 2X OC

MSI nVidia GeForce RTX 5060 8G VENTUS 2X OC, PCI Express® Gen 5 x16, Boost: 2527 MHz, CUDA 3840 Units, 8GB GDDR7, . HDMI™ x 1

SPECIFICATIONS

Marketing Name GeForce RTX™ 5060 8G VENTUS 2X OC
Model Name G5060-8V2C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060
Interface PCI Express® Gen 5 x16 (uses x8)
Core Clocks Extreme Performance: 2535 MHz (MSI Center)
Boost: 2527 MHz
CUDA® CORES 3840 Units
Memory Speed 28 Gbps
Memory 8GB GDDR7
Memory Bus 128-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 145 W
Power connectors 8-pin x1
Recommended PSU 550 W
Card Dimension (mm) 197 x 120 x 41 mm
Weight (Card / Package) 511 g / 829 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

FEATURES

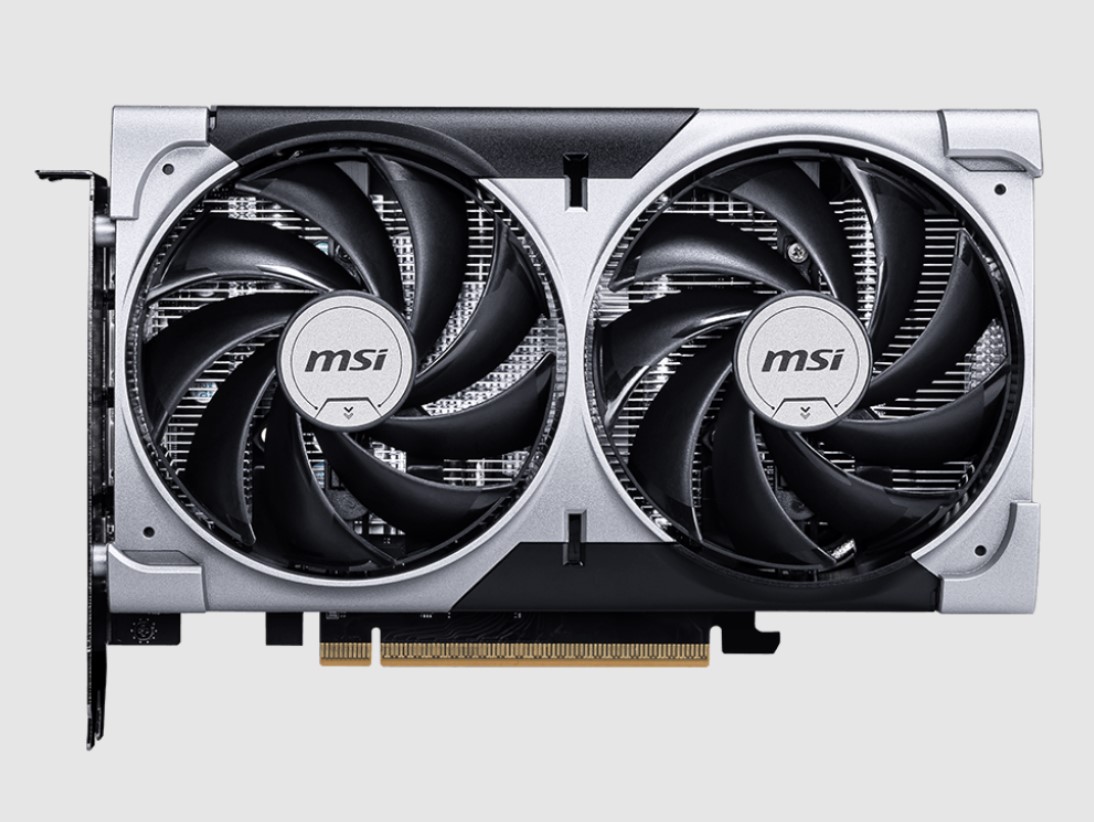

Dual Fan
Two fans and a huge heatsink ensure a cool and quiet experience
for you.
TORX FAN 5.0
Fan blades linked by ring arcs and a fan cowl work together to
stabilize and maintain high-pressure airflow.

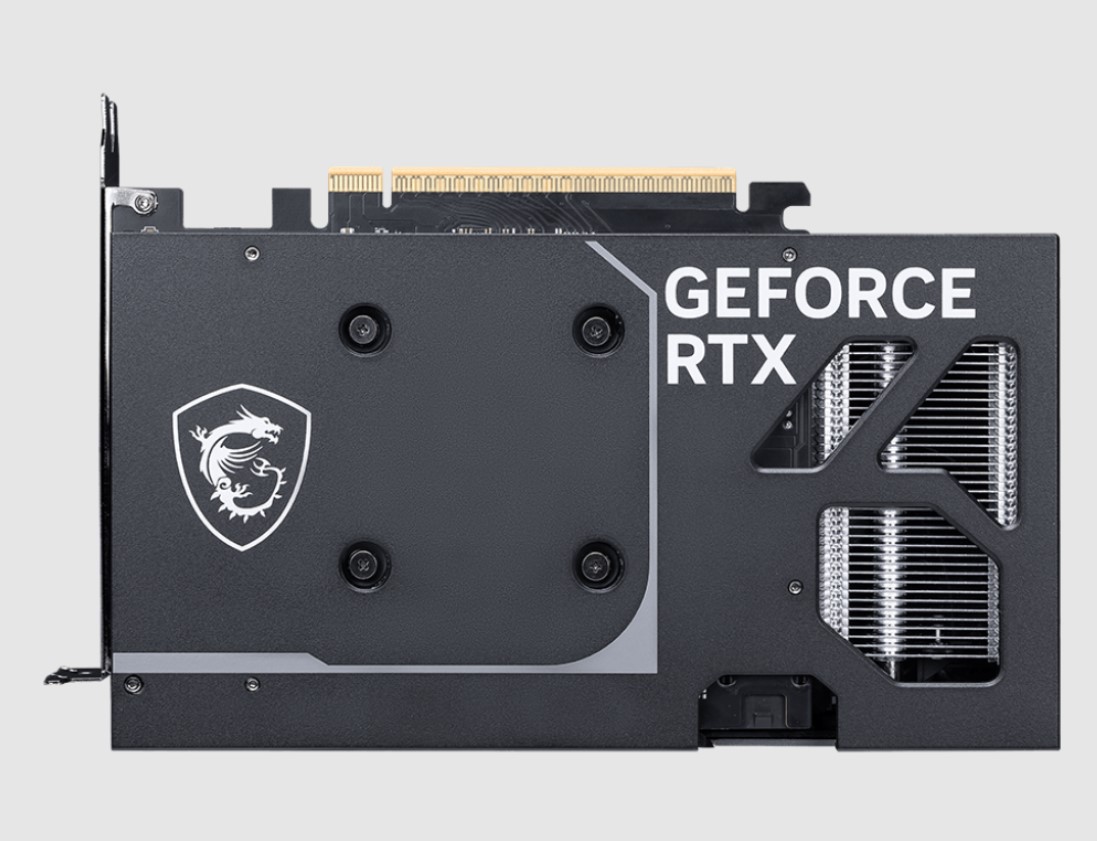

Reinforcing Backplate
The reinforcing backplate features a flow-through design that
provides additional ventilation.
Zero Frozr
The fans completely stop when temperatures are relatively low,
eliminating all noise.
Fuse
Additional fuses built into the custom PCB provide additional
safeguards against electrical damage.
DrMOS
DrMOS power stage solutions provide great efficiency with low
power loss and enhanced voltage controls.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.

Product Description Last Updated: 23/09/2025
