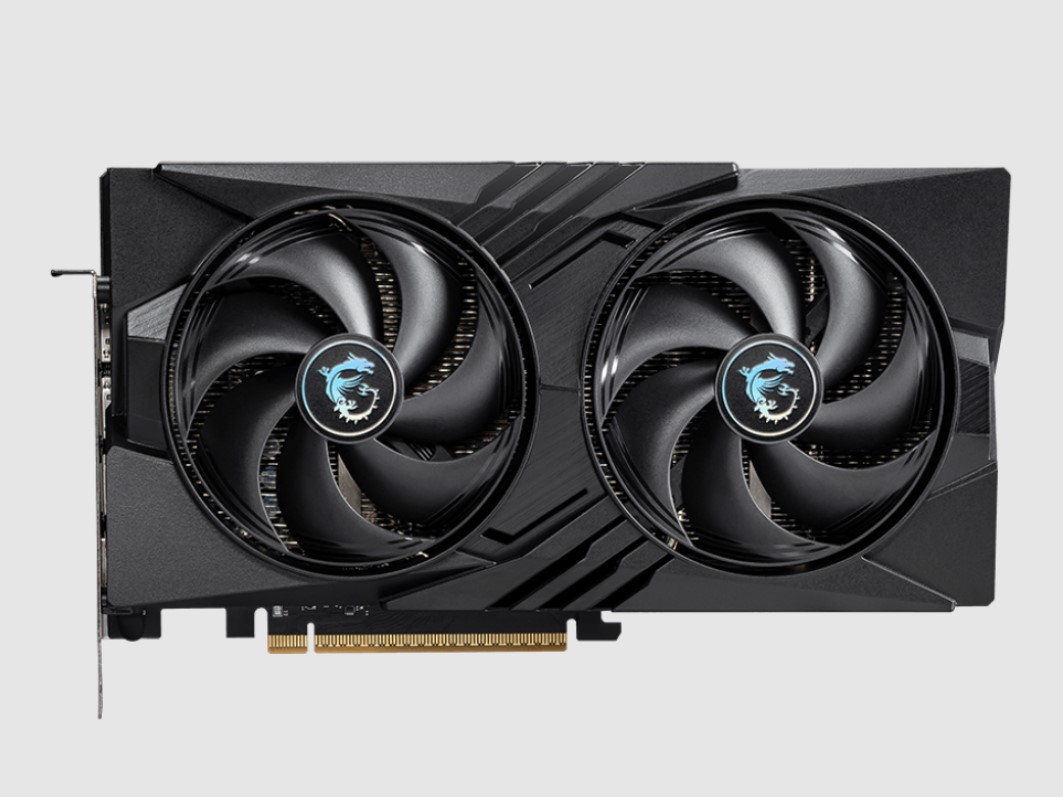

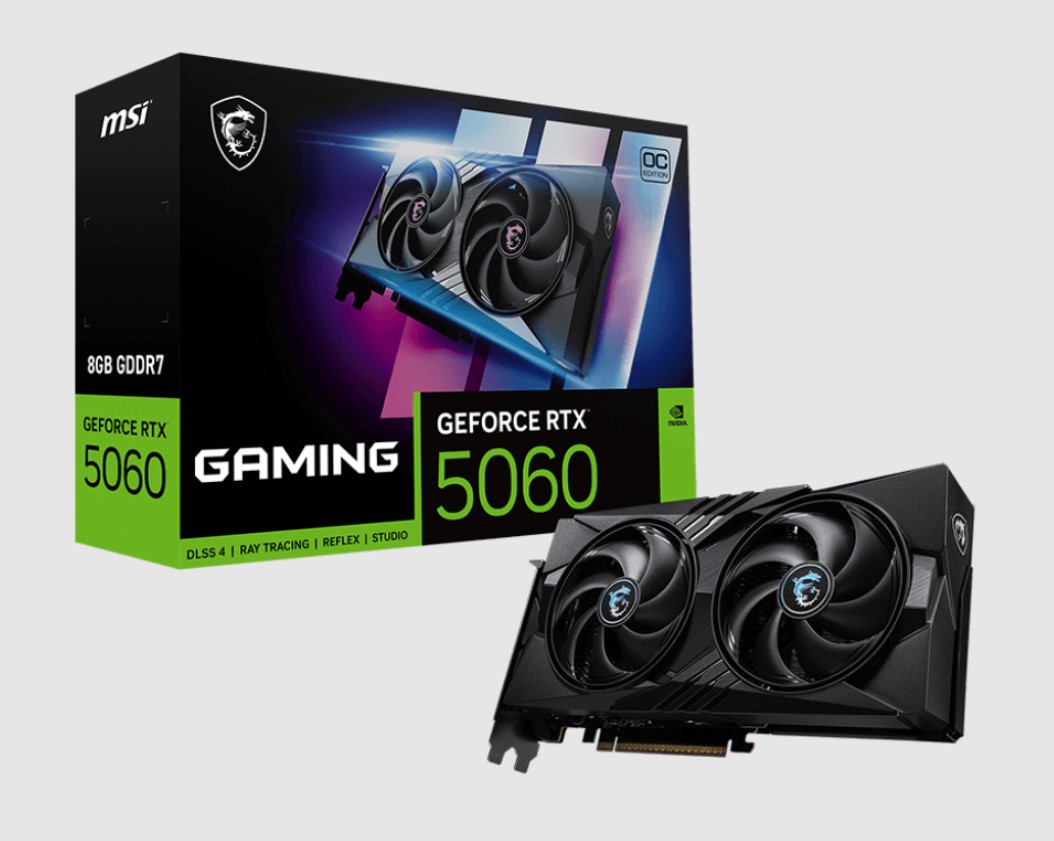

MSI nVidia GeForce RTX 5060 8G GAMING OC, PCI Express® Gen 5 x16, Boost: 2625 MHz, CUDA 3840 Units, 8GB GDDR7, . HDMI™ x 1 | GeForce RTX 5060 8G GAMING OC

MSI nVidia GeForce RTX 5060 8G GAMING OC, PCI Express® Gen 5 x16, Boost: 2625 MHz, CUDA 3840 Units, 8GB GDDR7, . HDMI™ x 1
SPECIFICATIONS

Marketing Name GeForce RTX™ 5060 8G GAMING OC
Model Name G5060-8GC
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060
Interface PCI Express® Gen 5 x16 (uses x8)
Core Clocks Extreme Performance: 2640 MHz (MSI Center)
Boost: 2625 MHz
CUDA® CORES 3840 Units
Memory Speed 28 Gbps
Memory 8 GB GDDR7
Memory Bus 128-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 155W
Power connectors 8-pin x 1
Recommended PSU 550W
Card Dimension (mm) 248 x 135 x 41 mm
Weight (Card / Package) 649 g / 966 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

FEATURES

Twin Frozr 10
Experience superior cooling and quieter performance with MSI’s
enhanced fan blade design.
STORMFORCE FAN
Seven fan blades, claw texturing, and a circular arc are designed
for optimal airflow with minimal noise.
Nickel-plated Copper Baseplate
Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.
Core Pipes
Core Pipes feature a square design to maximize contact with the
GPU baseplate for optimal thermal management.

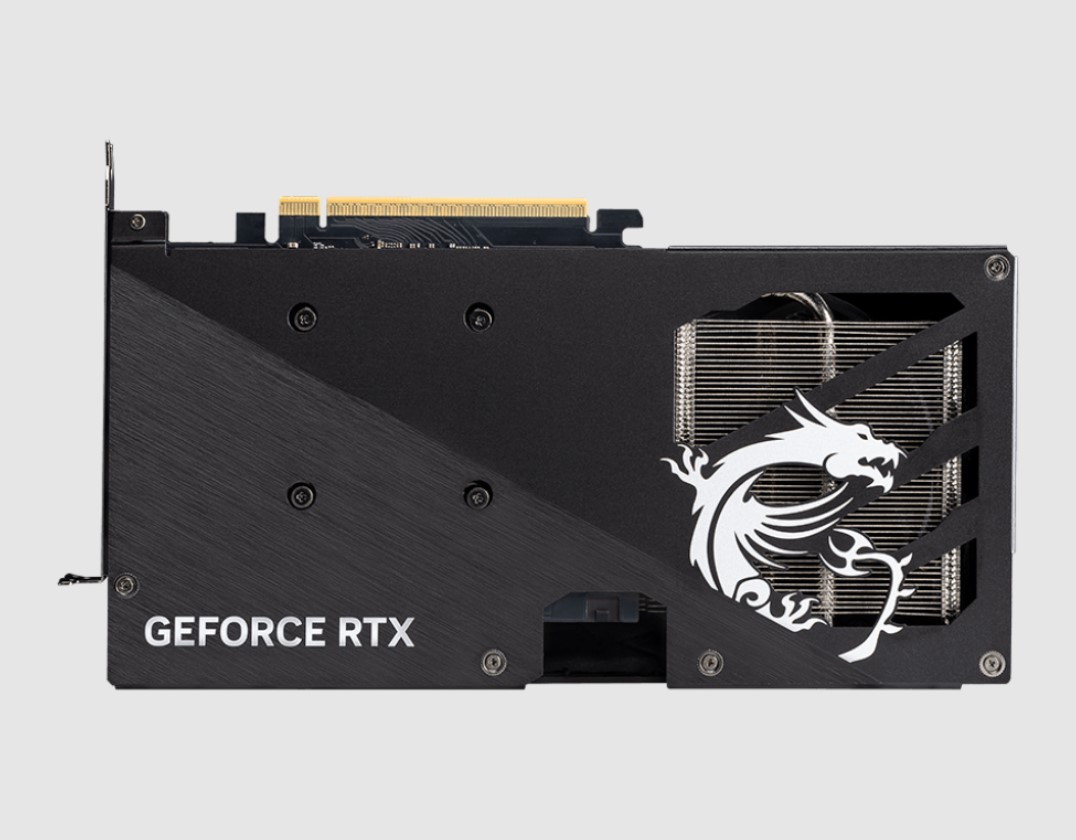

Metal Backplate
A reinforcing metal backplate with airflow vents and thermal pads
enhances cooling.
Wave Curved 3.0
Additional efficiency is gained by adjusting the size of the wave
edges under the fan motor and other spots where there is less
airflow.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.

Product Last Updated: 11/12/2025
