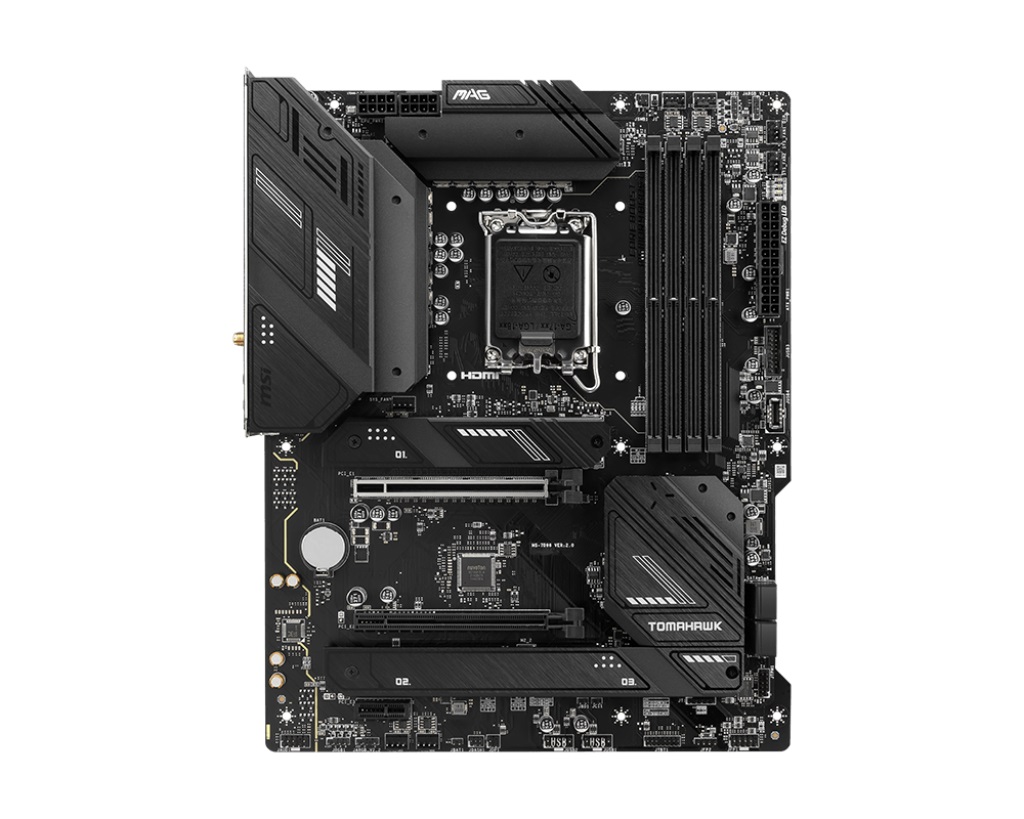

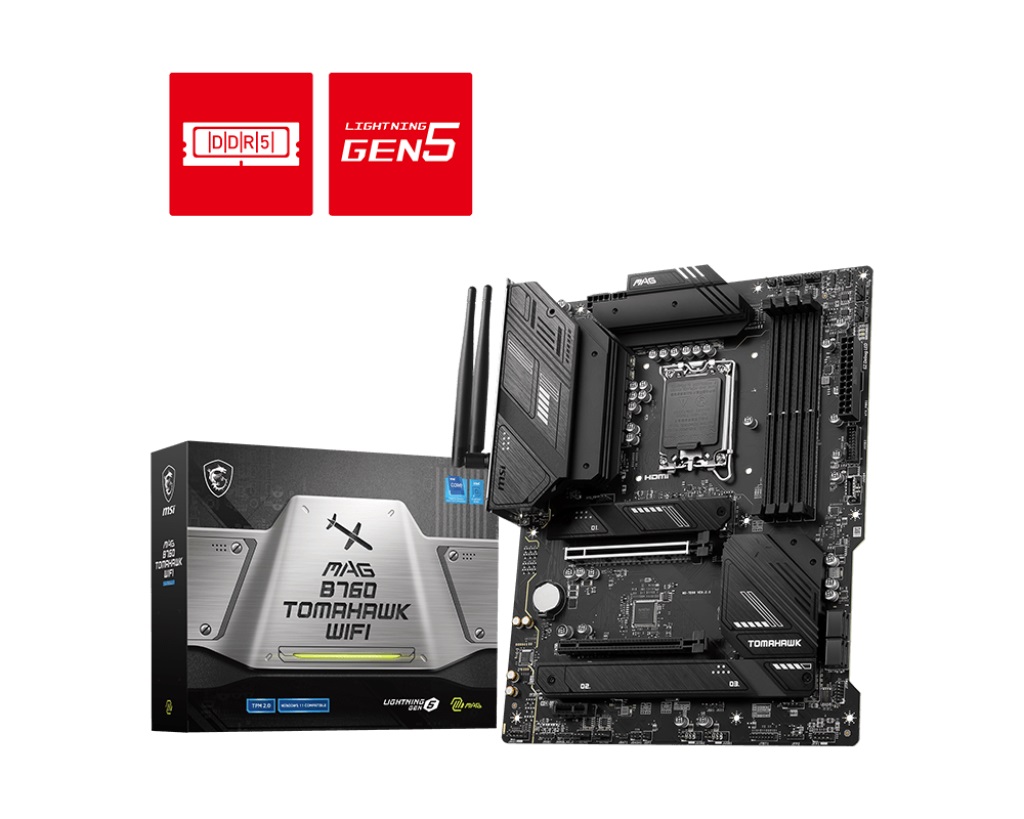

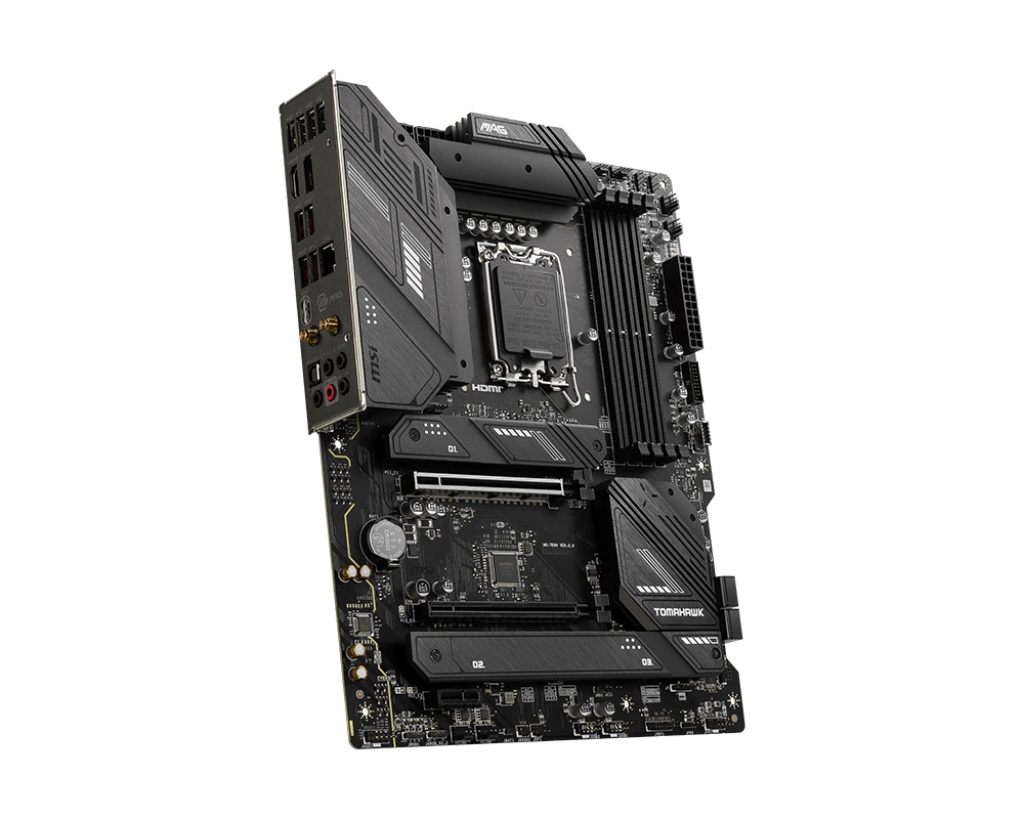

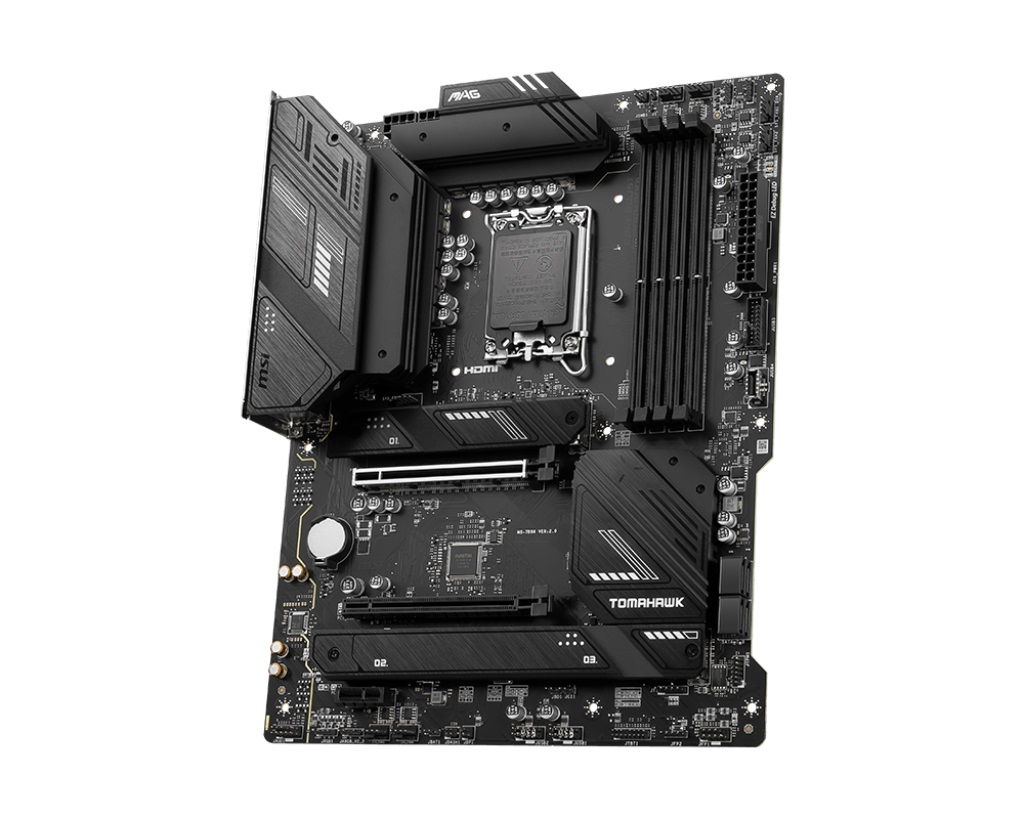

MSI MAG B760 TOMAHAWK WIFI ATX Motherboard, 4x DDR5~192GB, 2x PCI-E x 16, 1x PCI-E x 1, 3x M.2, 4x SATA, 4x USB 3.2 , 4x USB 2.0, 1x USB Type C | MAG B760 TOMAHAWK WIFI

MSI MAG B760 TOMAHAWK WIFI ATX Motherboard, 4x DDR5~192GB, 2x PCI-E x 16, 1x PCI-E x 1, 3x M.2, 4x SATA, 4x USB 3.2 , 4x USB 2.0, 1x USB Type C

CHIPSET INTEL B760
CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA1700

MEMORY
4x DDR5, Maximum Memory Capacity 192GB
Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

ONBOARD GRAPHICS
1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT
2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

STORAGE
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB DIMENSION ATX 243.84mmx304.8mm

Product Last Updated: 03/06/2025
