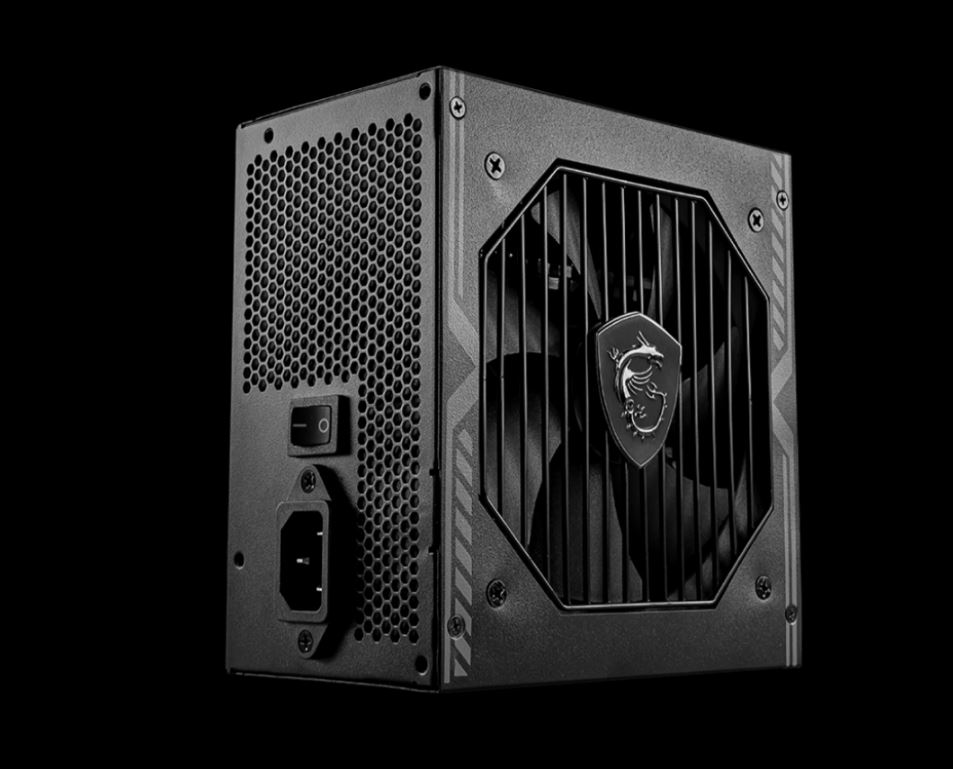

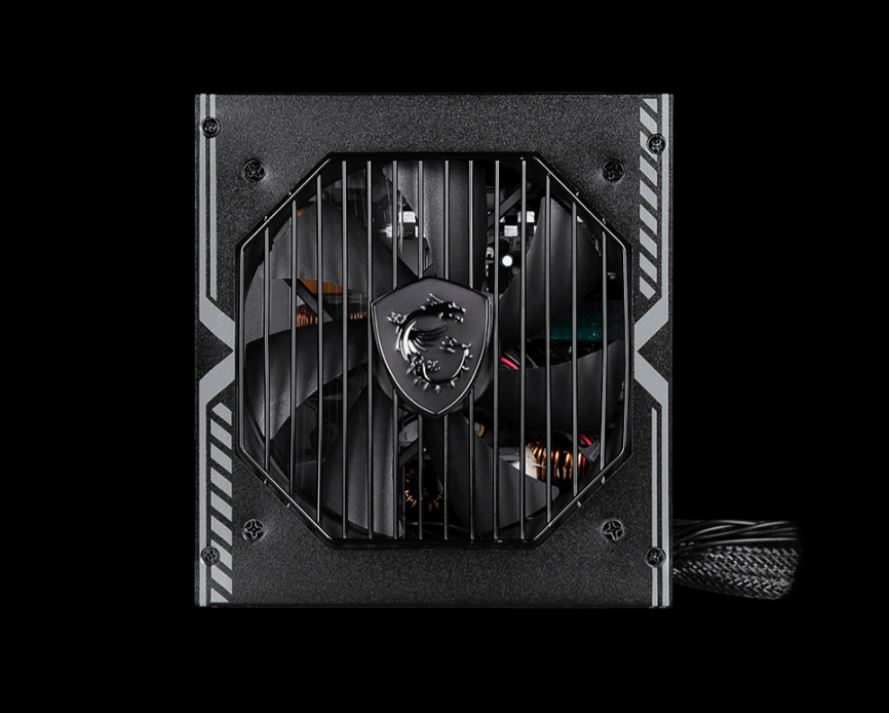

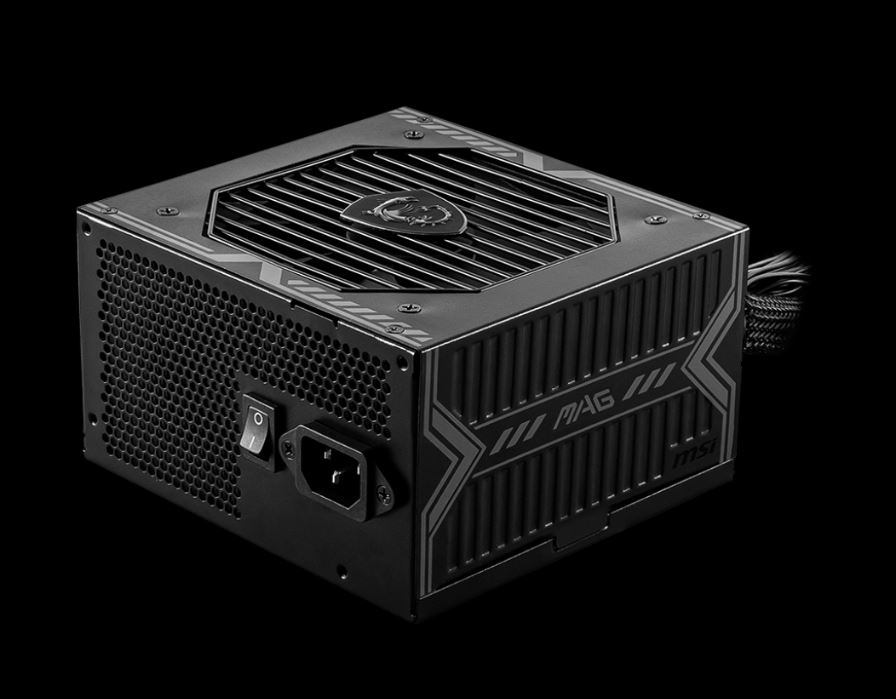

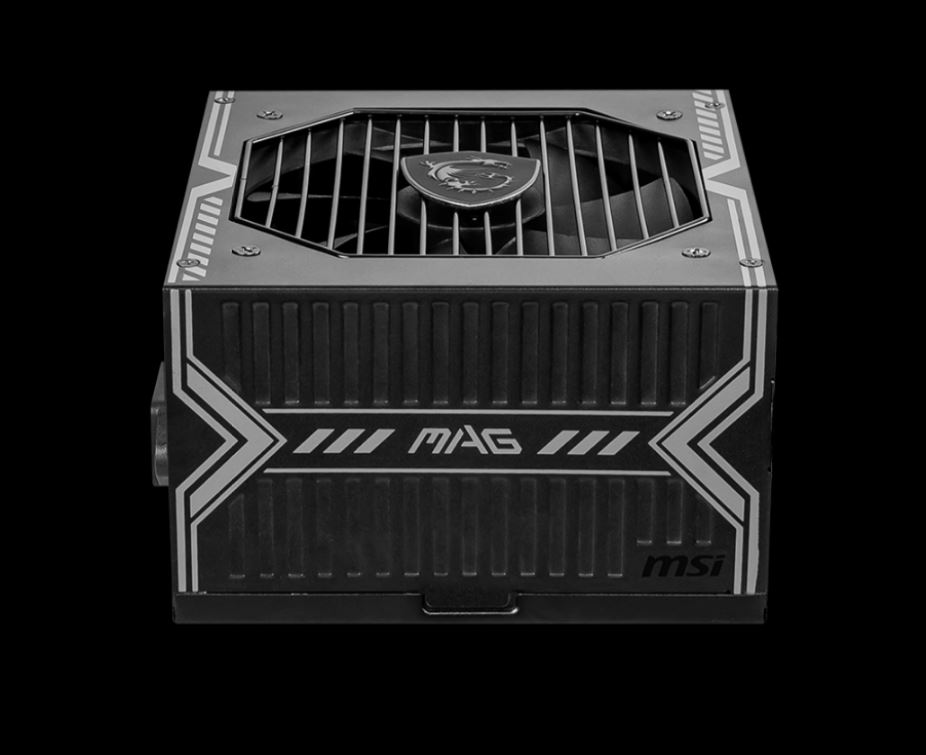

MSI MAG A750BN PCIE5 750W ATX Power Supply Unit, 80 PLUS Bronze (up to 85%), PFC, 100-240~, 750W, 50~60Hz, ATX, 1x PCI-E 5.0, 2x PCI-E, SATA, FDD

MSI MAG A750BN PCIE5 750W ATX Power Supply Unit, 80 PLUS Bronze (up to 85%), PFC, 100-240~, 750W, 50~60Hz, ATX, 1x PCI-E 5.0, 2x PCI-E, SATA, FDD

FEATURES:
MSI MPG A750GF The MPG gaming power supply can support the NVIDIA GeForce RTX™ 30/20 Series and AMD GPUs. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
Supports the NVIDIA GeForce RTX™ 30 Series GPUs
Full modular cable design
Flat cable equipment
10-year warranty
80 PLUS Bronze (up to 85%)
100% all Japanese 105oC capacitor
Active PFC design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC module design

SPECIFICATIONS:

EFFICIENCY RATING 80 PLUS Bronze (up to 85%)
MODULAR Yes (full modular)
FAN SIZE 120 mm
FAN BEARING Fluid Dynamic Bearing
DIMENSIONS (DXWXH) 140 x 150 x 86 mm
PFC TYPE Active PFC
INPUT VOLTAGE RANGE 100~240 VAC
POWER WATT 750W
POWER EXCURSION 1500W (*up to 200% of the PSU’s rated power for 100μs)
INPUT FREQUENCY RANGE 47-63Hz
PROTECTION OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 PIN) 1
EPS (4+4 PIN) 2
PCI-E 5.0 (16 PIN) 1 (450W)
PCI-E (6+2 PIN) 3
SATA (15 PIN) 8
MOLEX (4 PIN) 4
FDD (4 PIN) 1
