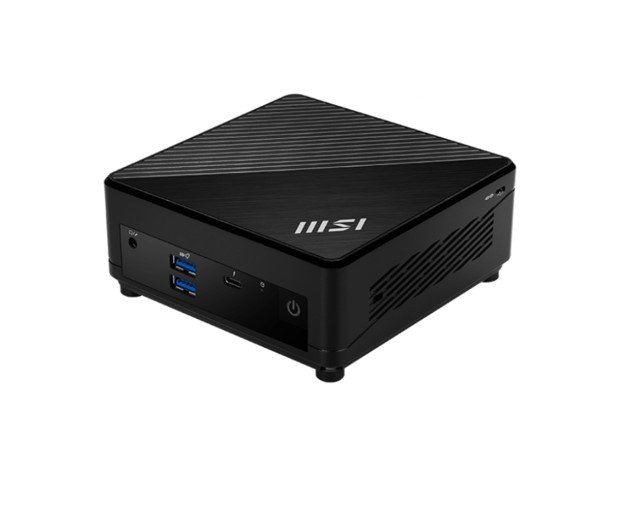

MSI Cubi NUC 5 12M-202BAU Mini PC barebone Intel i3-1215U 2xDDR4 upto 64GB Intel® Iris® Xe Graphics 1x M.2 1×2.5’SSD (similar to RNUC12WSHI30000)(LS) | Cubi 5 12M-202BAU

MSI Cubi NUC 5 12M-202BAU Mini PC barebone Intel i3-1215U 2xDDR4 upto 64GB, Intel® Iris® Xe Graphics 1x M.2,1×2.5’SSD, (similar to RNUC12WSHI30000)

FEATURES:
– MSI recommends Windows 11 Pro for business
Up to 12th Gen Intel® Core™ i7 Processors
Support up to 8K UHD Display
Support three displays that allow you to see more and do more
Thunderbolt 4 delivers the fastest, most versatile connection to any do
Could be the best alternative model to Intel NUC RNUC12WSHI30000

SPECIFICATIONS:
OPERATING SYSTEM no OS, support win11 home/ win 11 pro
CPU Intel® Core™ i3-1215U

CHIPSET Intel® SoC
GRAPHICS Intel® Iris® Xe Graphics(Core i5 above)
Intel® UHD Graphics (Core i3)
STORAGE 1x M.2 SSD (NVMe PCIe Gen4 x4 / SATA auto switch)
1x 2.5′ HDD / SSD
SYSTEM MEMORY 2x DDR4 2666/ 3200MHz SO-DIMMs, up to 64GB

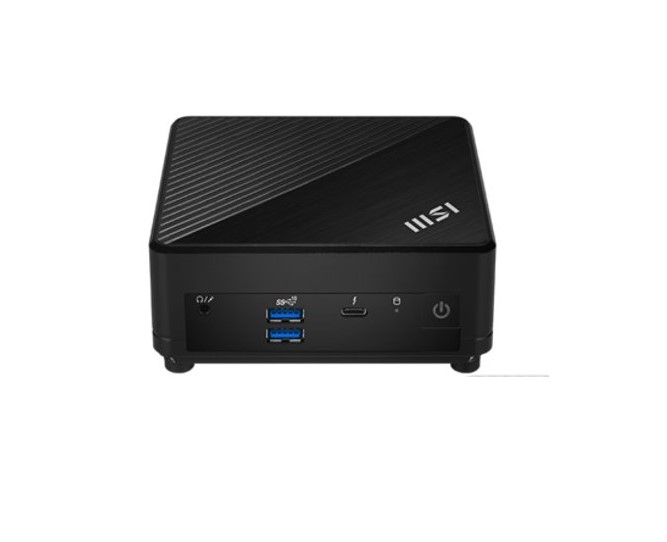

I/O (FRONT) 2x USB 3.2 Gen 2 Type A
1x Thunderbolt 4 (USB Type C port)
1x Mic-in/ Headphone-out combo

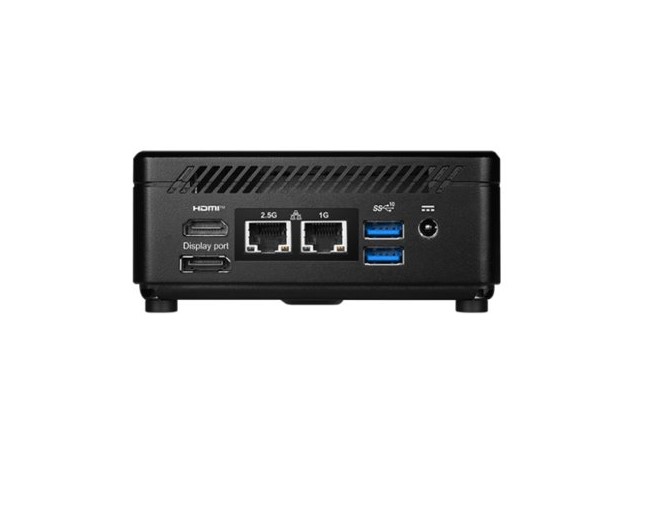

I/O (REAR) 2x USB 3.2 Gen 2 Type A
2x RJ45
1x HDMI™-out (2.0b)
1x DP-out (1.4)
BLUETOOTH 5.3 (for AX211)

WIRELESS LAN Intel Wireless AX211

LAN 1x Realtek® RTL8111H
1x Realtek® RTL8125BG-CG
COOLING SYSTEM Fan Cooler
AC ADAPTER / PSU 65W
MANAGEMENT UTILITY MSI Center:
SECURITY UTILITY DEVICE MSI Center: System Diagnosis
DIMENSION (WXDXH) 124 x 124 x 53.7 mm

WEIGHT (N.W./ G.W.) 0.55 kg / 1.4 kg
VESA MOUNT 100 x 100 mm / 75 x 75 mm
ACCESSORIES 1x User Manual (Optional)
1x Quick Guide
1x Warranty Card
1x Adpator
1x Power Cord
VESA Mount Scre

Product Last Updated: 11/12/2025
