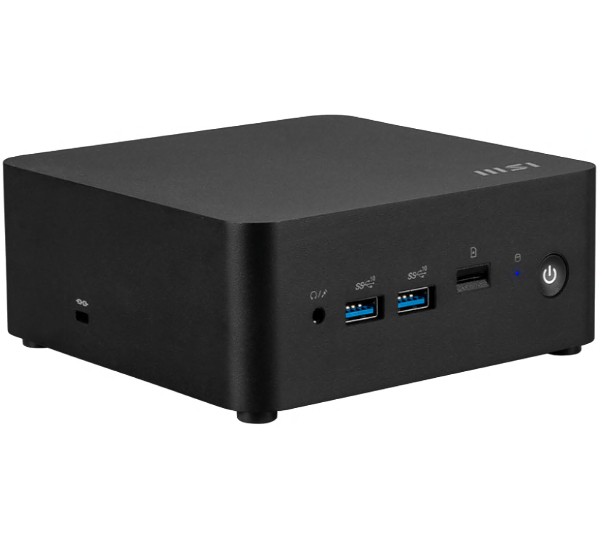

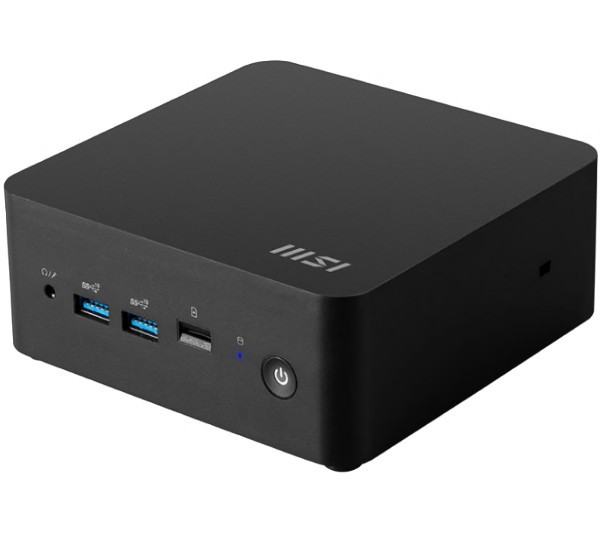

MSI Cubi NUC 1M-017BAU miniPC barebone, Black Intel Core 3-100U DDR5 2*M.2 2*HDMI 2*TBT 2*LAN Wifi6 Card Reader Switch Cable 3Y | Cubi NUC 1M-017BAU-B3100UXX

MSI Cubi NUC 1M-017BAU miniPC barebone, Black, Core 3-100U/Up to DDR5/2*M.2/2*HDMI/2*TBT/2*LAN/Wifi6/Card Reader/Switch Cable/3Y

SPECIFICATION

OS
Windows 11 Home
Windows 11 Pro

CPU
Intel® Core™ 3 processor 100U (10M Cache, 1.20 GHz up to 4.70 GHz)

CHIPSET
Intel® SoC

GRAPHICS
Intel® Graphics

I/O PORTS
1x Card Reader
2x RJ45

COOLER
Air

MEMORY
DDR5 5200 MHz Max 64GB SO-DIMM 2 Slots

STORAGE
1x SATA connectors
1x 2.5′ Drive Bays
2x M.2 SSD (NVMe PCIe Gen4 x4)

AUDIO
Realtek ALC256 2.1 Channel HD Audio

COMMUNICATION
2x Intel I226-V Intel Wireless AX211 + Bluetooth v5.3
Intel Wi-Fi 7 BE200 + Bluetooth 5.4

I/O PORTS (FRONT)
1x Mic-in/Headphone-out combo
2x USB 3.2 Gen 2 (10G) Type A

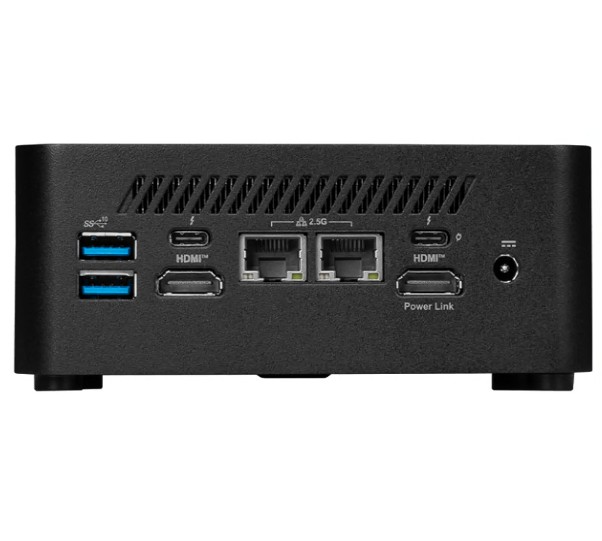

I/O PORTS(REAR)
2x (v2.1) HDMI out
Kensington Lock 2x (Thunderbolt 4) Thunderbolt

POWER SUPPLY
120W

VESA
100 x 100 mm

PRODUCT DIMENSION (WXDXH)
135.6 x 132.5 x 50.10 (mm)

SIZE
0.826 Liter

WEIGHT
0.63 (Net kg)
1.45 (Gross kg)

NOISE LEVEL
28 db Idle mode
38 db Full loading mode
