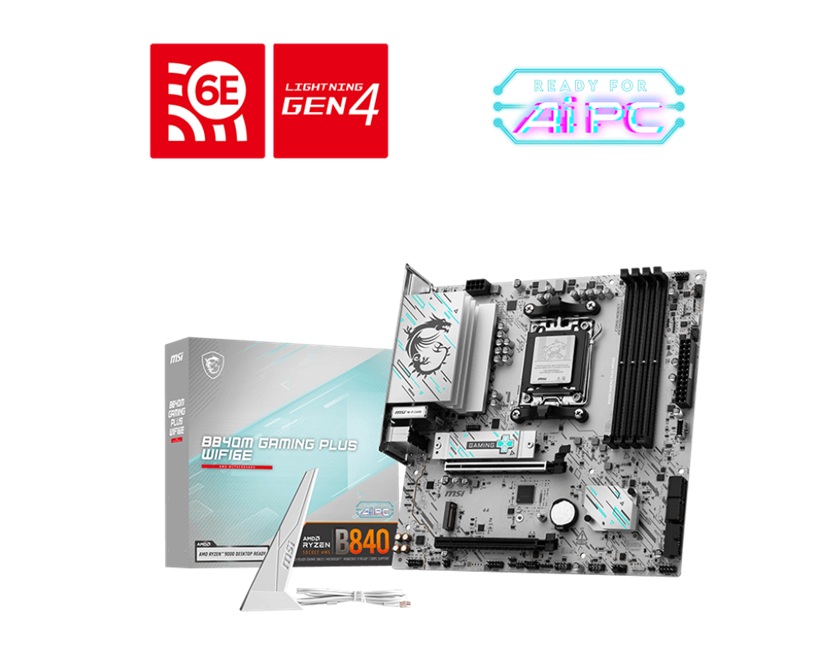

MSI B840M GAMING PLUS WIFI6E, AM5 ATX Motherboard, 4x DDR5 256GB, 1x HDMI, 2x PCI-E x16 slot, 2x M.2, 4x SATA 6G, Wi-Fi 6E, Bluetooth 5.3 | B840M GAMING PLUS WIFI6E

MSI B840M GAMING PLUS WIFI6E, AM5 ATX Motherboard, 4x DDR5 256GB, 1x HDMI, 2x PCI-E x16 slot, 2x M.2, 4x SATA 6G, Wi-Fi 6E, Bluetooth 5.3

Chipset
AMD B840

CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s

Onboard Graphics
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

Slot
2x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)

PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio

Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

LAN
Realtek® 8125D 2.5G LAN

WIRELESS LAN BLUETOOTH
Wi-Fi 6E Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

LED FEATURE
4x EZ Debug LED
1x EZ Memory Detection LED

OPERATING SYSTEM
Support for Windows® 11 64-bit

Product Last Updated: 11/12/2025
