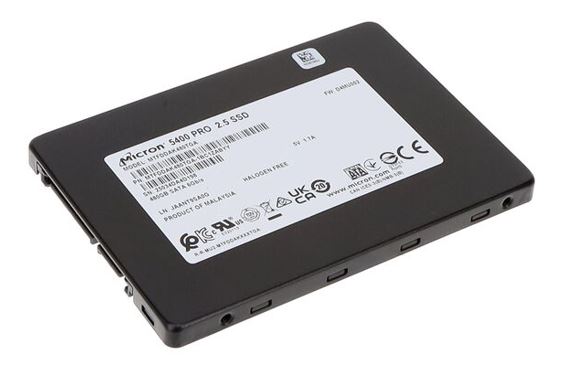

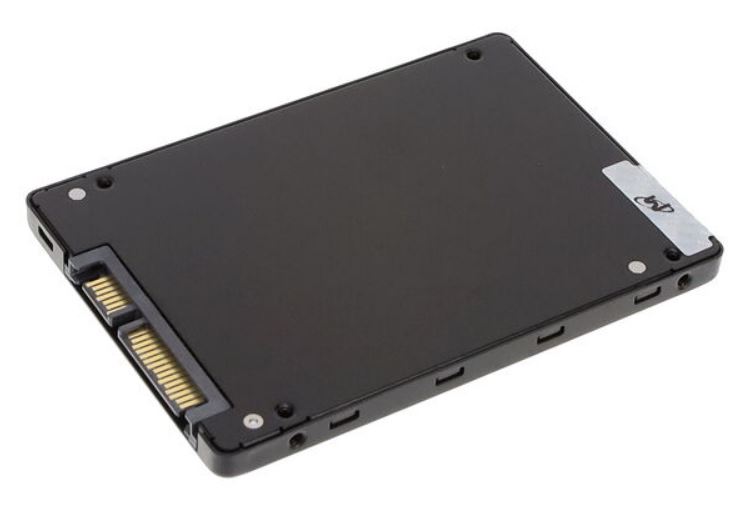

Micron 5400 PRO 480GB 2.5′ SATA Enterprise SSD 540R/520W MB/s 95K/37K IOPS 876TBW 1DWPD 3M hrs MTTF AES 256-bit encryption Server Data Centre 5yrs | MTFDDAK480TGA-1BC1ZABYY

Micron 5400 PRO 480GB 2.5′ SATA Enterprise SSD 540R/520W MB/s 95K/37K IOPS 876TBW 1DWPD 3M hrs MTTF AES 256-bit encryption Server Data Centre 5yrs

Maximize your data center with the performance, consistency, and expanded data security of the Micron 5300 SATA SSD

Overview
Built with Micron’s innovative 96-layer 3D TLC NAND, the Micron 5300 combines the latest in NAND technology and a proven architecture to provide performance upgrades now and a path forward for moving to an all-flash future. The Micron 5300 offers high capacity, added security, and enhanced endurance to enable strong performance.

Benefits
The Next Evolution in SATA Leadership
Expand your capability with the industry’s first 96-layer 3D TLC NAND in the data center.

Solid Data Security
Secure your data with power-loss protection, and data center-grade data path protection along with optional TCG Opal 2.0, TCG Enterprise, and AES 256-bit encryption.

Strong Read-Intensive, Mixed-Use Performance
Optimizations drive strong performance for media streaming, business analytics, OLTP, and block and object storage.

Broadest SATA Portfolio
Micron’s market-leading data center SATA SSD options range from 240GB boot drives to high-capacity 7.68TB SSDs.

Core Specs
Capacity: 480GB
Form Factor: 2.5′
Interface: SATA III (6Gb/s)
NAND Type: 176‑Layer TLC
Endurance (TBW): ~1.0 DWPD (Device‑Write‑Per‑Day class for 5 years)
MTBF: 3 million hours
Encryption: TCG Enterprise / TCG Opal 2.01 (model‑dependent; this ZABYY variant = non‑SED)
Power Loss Protection: Yes (enterprise‑grade PLP)
Performance
Sequential Read: up to 540 MB/s
Sequential Write: up to 520 MB/s
Random Read (4K): up to 95K IOPS
Random Write (4K): up to 40K IOPS
(Values vary slightly by capacity; these are Micron’s official 480GB ratings.)
Reliability Endurance
Endurance: approx. 876 TBW (Micron 5400 PRO 480GB rating)
UBER: < 1 sector per 10¹⁷ bits read Warranty: 5‑year enterprise warranty (Micron standard) Physical Dimensions: 100.45 × 69.85 × 7 mm Weight: ~60g Operating Temperature: 0°C to 70°C Datasheet - https://bit.ly/39n4L16

Product Last Updated: 09/07/2026
