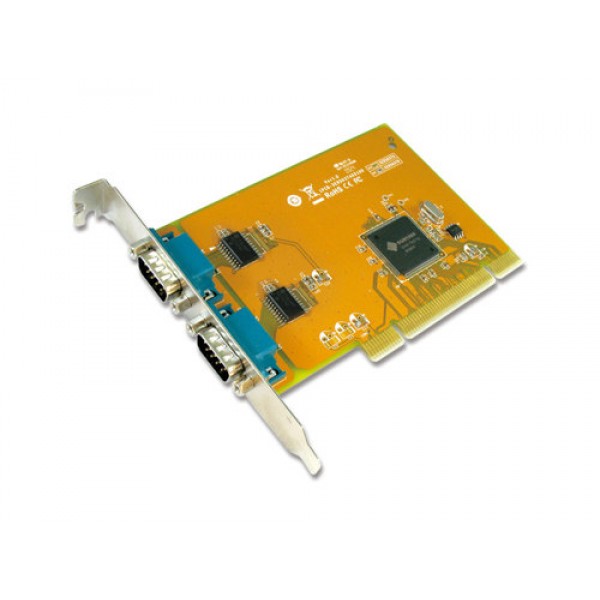

(LS) Sunix COMCARD-2P SER5037A Dual Port Serial IO Card PCI Card; speeds up to 115.2Kbps; Support Microsoft Windows, Linux, and DOS(L) | SER5037A

Sunix COMCARD-2P SER5037A Dual Port Serial IO Card PCI Card; speeds up to 115.2Kbps; Support Microsoft Windows, Linux, and DOS

Description
Product Description 2-port RS-232 Universal PCI Serial Board
Serial Communication
Interface RS-232
Controller SUNIX SUN1989 (16C950 UART Compatible)
Bus Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
No. of Port 2-port
IRQ IO Assigned by System
FIFO 128 byte (Hardware)
Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
Baud rate 50 bps to 115.2 Kbps
Data bit 5,6,7,8
Stop bit 1,1.5,2
Parity None, Even, Odd, Space, Mark
Flow Control None, Xon/Xoff, RTS/CTS
Protection ±2KV ESD protection for each signal Human Body Model (HBM)
PCB connector DB9 Male
Driver Support
Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012 / 2016 (X64)
Windows Embedded Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux Linux 2.x / 3.x / 4.x
DOS DOS
FreeBSD FreeBSD 5.3~5.5 / 6.0~6.4
QNX QNX 6.3.2/6.4.0
* IBM OS/2 WARP 3/WARP 4
* SCO UnixWare UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0
* Sun Microsystems Solaris 10
Note : “ * ‘ Supported by special inquiry.
Regulatory Approvals
Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, RoHS
Software Microsoft WHQL Windows
• Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
• Windows Server: 2003 / 2008 / 2012 / 2016 (X64)
Environment
Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)
Dimension
PCB Dimension 120 x 82 mm
Bracket Standard 121 mm
Bracket Space 1

Product Last Updated: 15/06/2025
