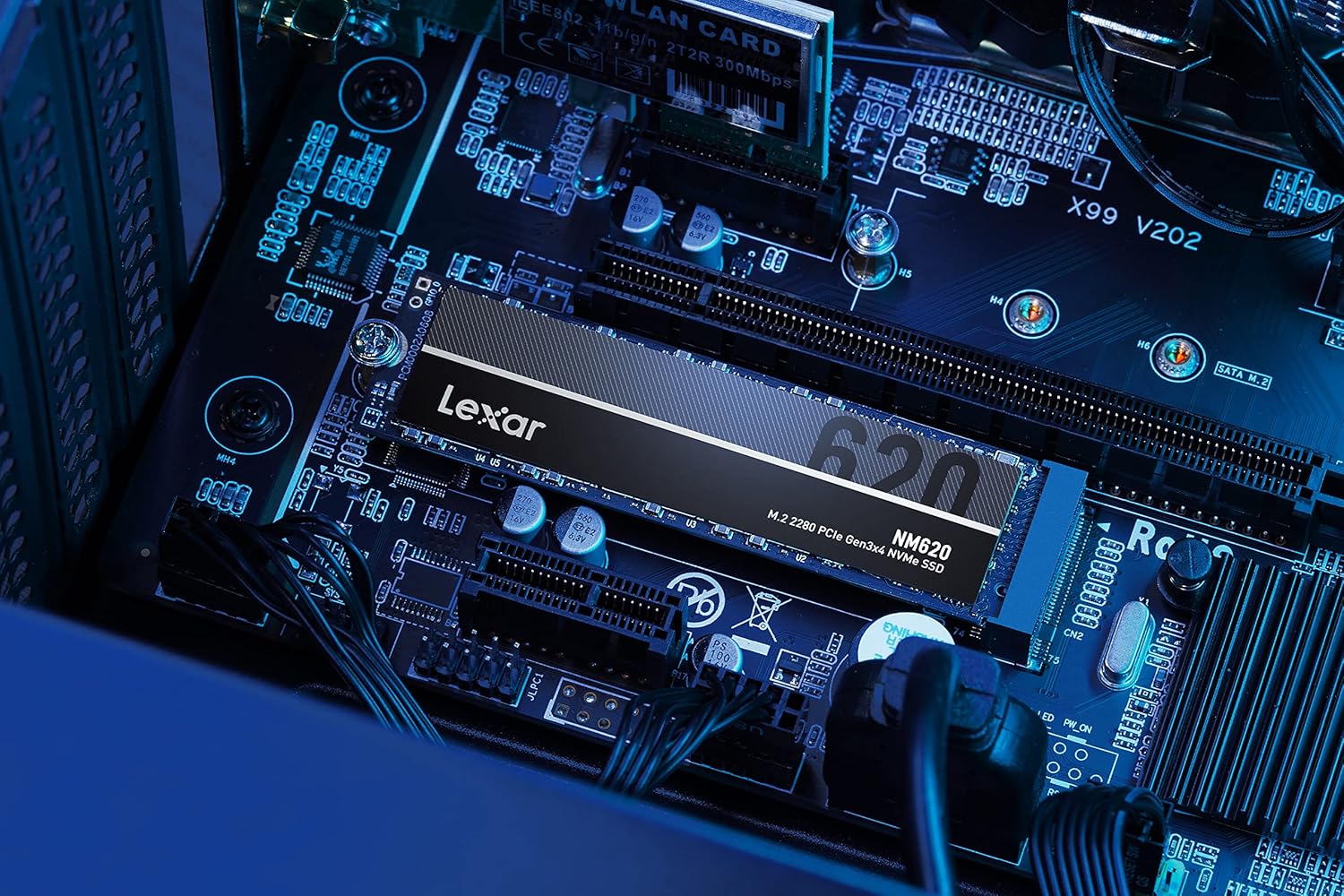

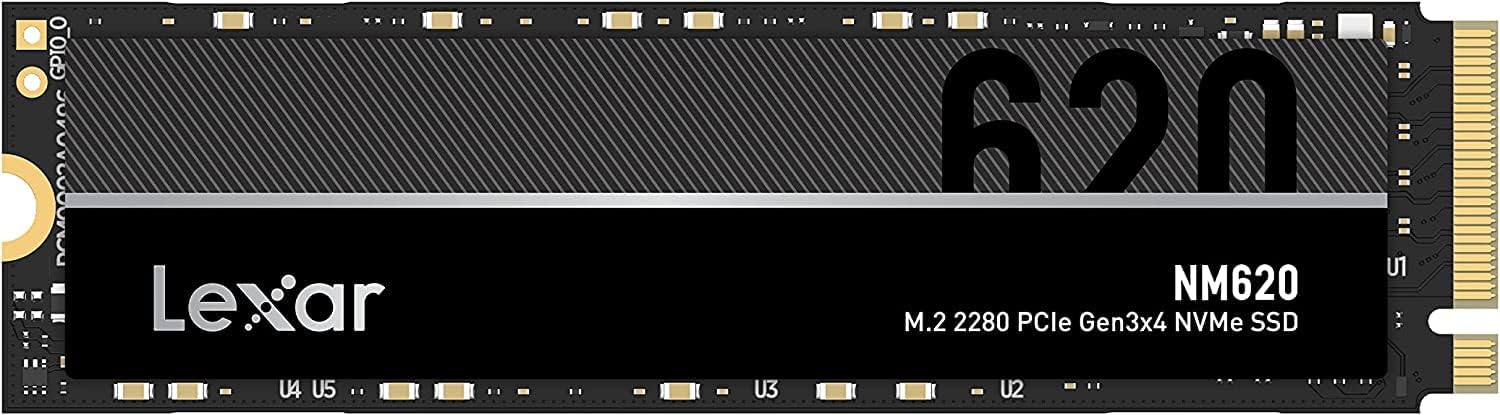

Lexar LNM620X512G-RNNNG Internal SSD 512GB M.2 2280 PCIe Gen3x4, read up to 3500MB/s, write up to 2400MB/s | LNM620X512G-RNNNG

Lexar LNM620X512G-RNNNG Internal SSD 512GB M.2 2280 PCIe Gen3x4, read up to 3500MB/s, write up to 2400MB/s

– High-speed PCIe Gen3x4 interface: Lexar 1TB SSD up to 3500MB/s read and 3000MB/s write – NVMe 1.4 supported.

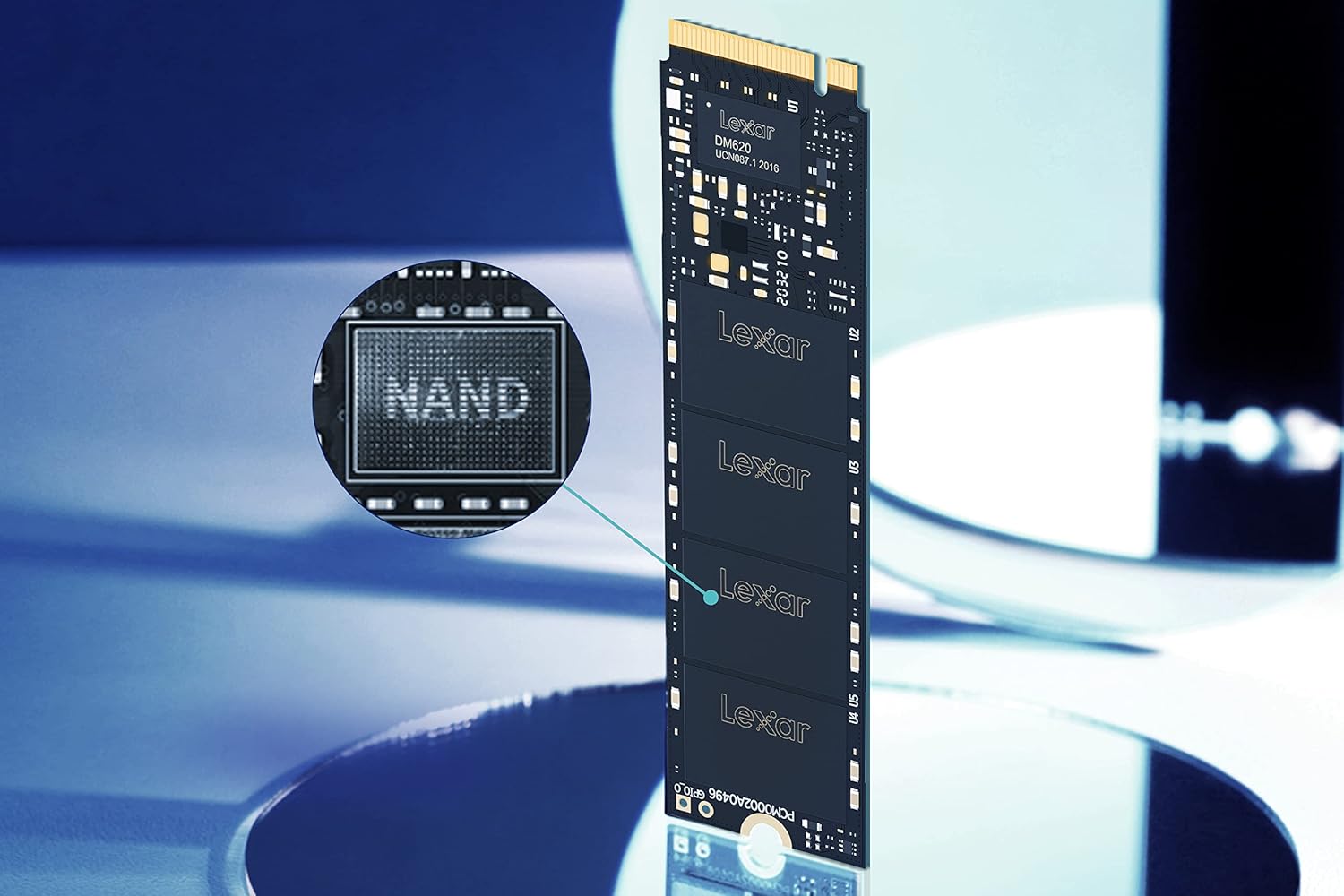

– Lexar internal SSD M.2 2280 form factor’s with 3D NAND.
– Lexar solid state drive gets 6x the speed of a SATA-based SSD.
– Lexar SSD’s ideal for PC enthusiasts and gamers.
– Lexar internal solid state drive’s shock and vibration resistant with no moving parts.

Specifications

Form Factor
M.2 2280
Interface
PCIe Gen3x4
Performance
256GB —sequential read up to 3500MB/s, write up to 1300MB/s
IOPS: up to 92/240K
512GB —sequential read up to 3500MB/s, write up to 2400MB/s
IOPS: up to 200/256K
1TB —sequential read up to 3500MB/s, write up to 3000MBs
IOPS: up to 300/256K
2TB —sequential read up to 3500MB/s, write up to 3000MBs
IOPS: up to 300/256K
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Dimension (L x W x H)
80 mm x 22 mm x 2.25 mm / 3.15′ x 0.87′ x 0.09′
Weight
9g
Warranty
5 year limited warranty
Shock Resistant
1500 G, duration 0.5ms, Half Sine Wave
Vibration Resistant
10~2000Hz, 1.5mm, 20 G, 1 Oct/min, 30min/axis(X,Y,Z)
TBW
2TB:1000, 1 TB: 500 TB, 512 GB: 250 TB,, 256 GB: 125 TB
DWPD
1 TB: 0.44, 512 GB: 0.44, 256 GB: 0.44
NAND flash
3D TLC
MTBF
1,500,000 Hours
