LENOVO ThinkSystem SR250 V3, SR250 V3 2.5 Chassis Base, Xeon E-2456 6C 80W 3.2GHz, 16GB 4800MHz , 8×2.5 HS BP Kit, OB SATA RAID, 800WP AC PSU, Frictio | 7DCLA012AU

LENOVO ThinkSystem SR250 V3 2.5 Chassis Base, Xeon E-2456 6C 80W 3.2GHz, 16GB 4800MHz , 8×2.5 HS BP Kit, OB SATA RAID, 800WP AC PSU, Friction v2 Rail Kit

The Lenovo ThinkSystem SR250 V3 is a high-value single-socket 1U rack server for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security. The server supports one Intel Xeon 6300 Series processor or one Intel Xeon E-2400 Series processor (formerly codenamed ‘Raptor Lake-E (RPL-E)’) or Intel Pentium (‘Alder Lake (ADL)’) and up to 128 GB memory.

Flexible and scalable internal storage configurations include up to ten 2.5-inch or four 3.5-inch drives with affordable software RAID or advanced hardware RAID protection and a wide selection of drive sizes and types, including NVMe PCIe SSDs, SATA SSDs, and SAS/SATA HDDs. Also, it features integrated dual-port 1 Gb Ethernet NIC and additional PCIe expansion slots for hardware RAID protection, network scalability, and external storage connectivity. The next-generation Lenovo XClarity Controller 2 (XCC2), which is built into the SR250 V3 server, provides advanced service processor control, monitoring, and alerting functions.

The SR250 V3 offers the following features to boost performance, improve scalability, and reduce costs:
Improved single-socket processor performance:
Intel Xeon E-2400 Series processors (‘Raptor Lake’) up to to 8 cores and core speeds up to 3.5 GHz
Intel Pentium G7400 and G7400T processors (‘Alder Lake’) with 2 cores and core speeds up to 3.7 GHz
Up to four 4800 MHz DDR5 ECC UDIMMs provide speed and capacity of up to 128 GB

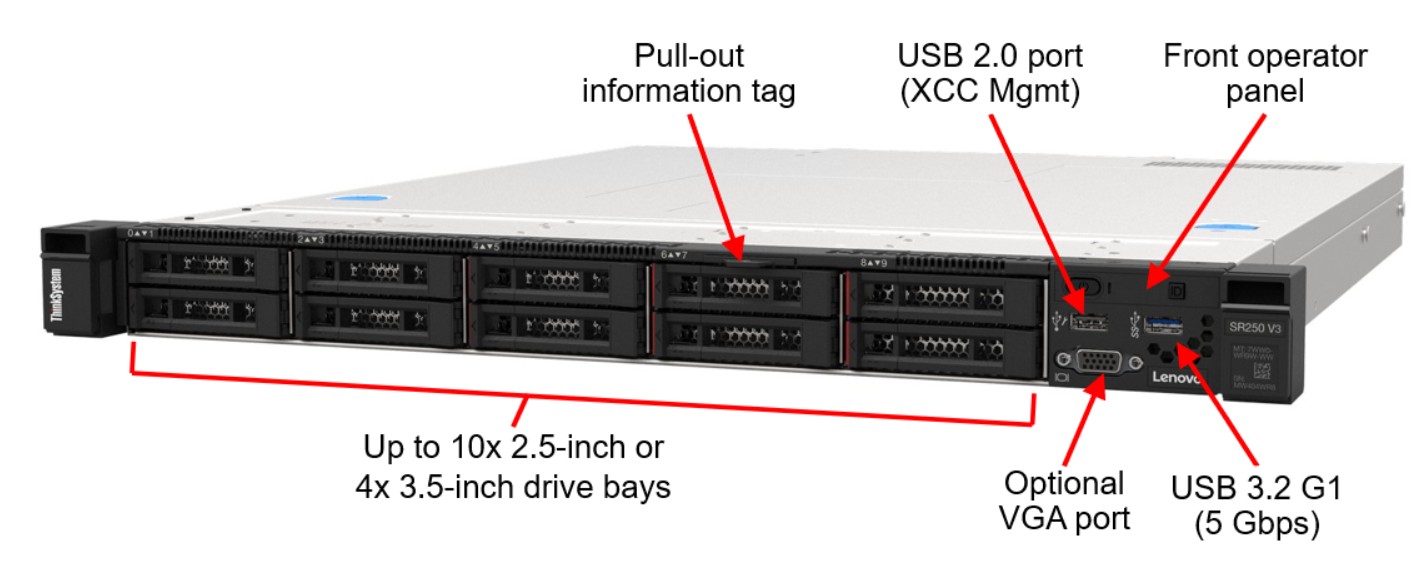

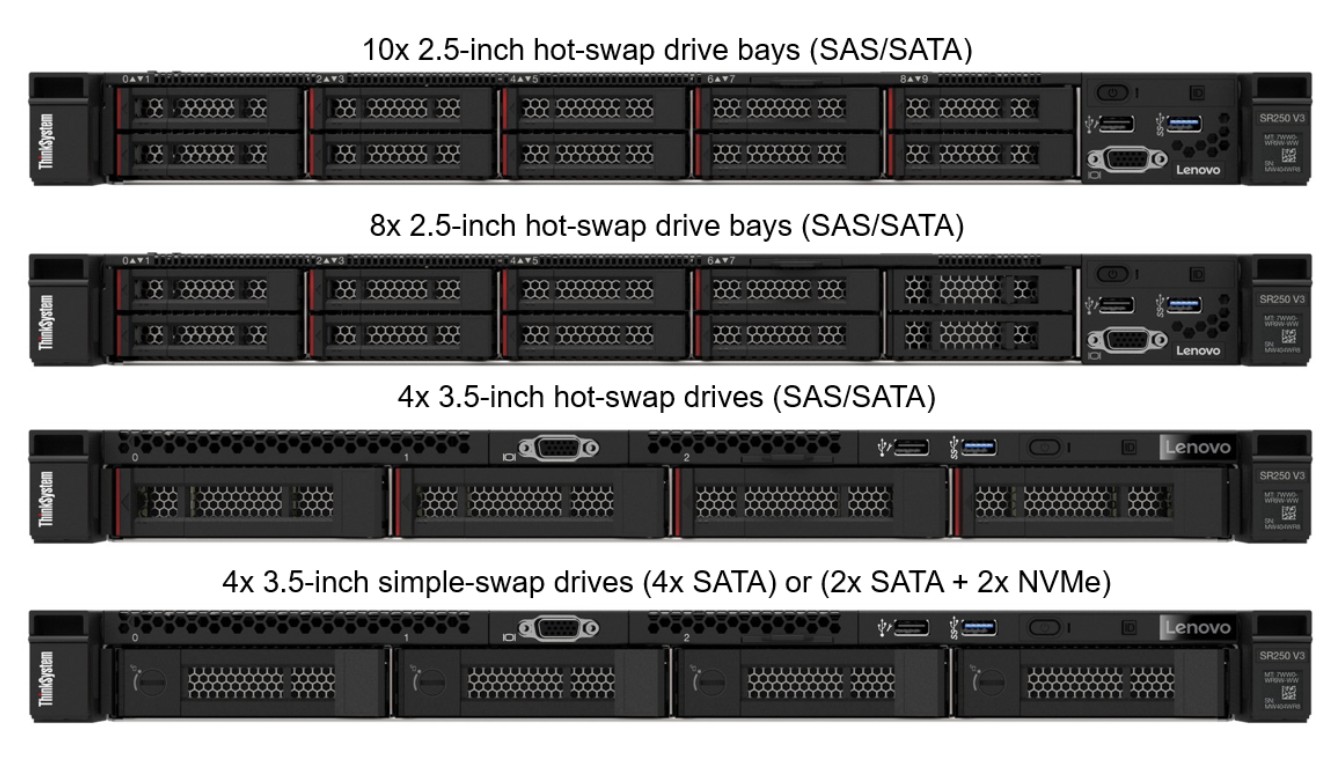

Offers flexible and scalable internal storage in a 1U rack form factor with up to 10x 2.5-inch drives for performance-optimized configurations or up to 4x 3.5-inch drives for capacity-optimized configurations

The SR250 V3 server provides many features to simplify serviceability and increase system uptime:
Designed to run 24 hours a day, 7 days a week
The SR250 V3 supports UDIMM memory with ECC protection which provides error correction not available in PC-class ‘servers’ that use parity memory. Avoiding system crashes (and data loss) due to soft memory errors means greater system uptime.
Provides easy access to upgrades and serviceable parts (such as memory DIMMs and adapter cards) with tool-less cover removal.

Powerful systems management features simplify local and remote management of the SR250 V3 server and deliver enterprise-class data protection:
The server includes an XClarity Controller 2 (XCC2) to monitor server availability. Optional upgrade to XCC2 platinum to provide remote control (keyboard video mouse KVM) functions, support for the mounting of remote media files (ISO and IMG image files), boot capture, and power capping among other features.
Lenovo XClarity Administrator offers comprehensive hardware management tools that help to increase uptime, reduce costs and improve productivity through advanced server management capabilities.
