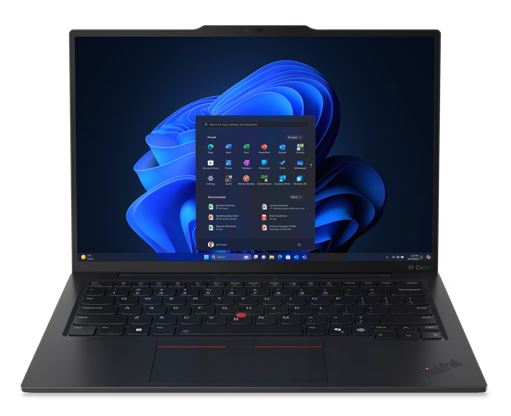

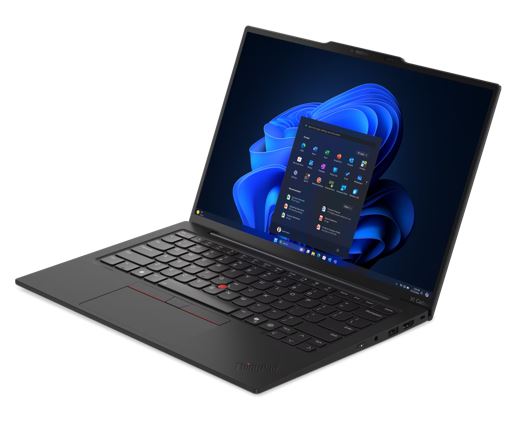

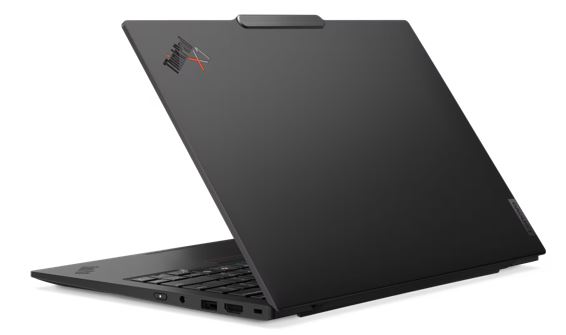

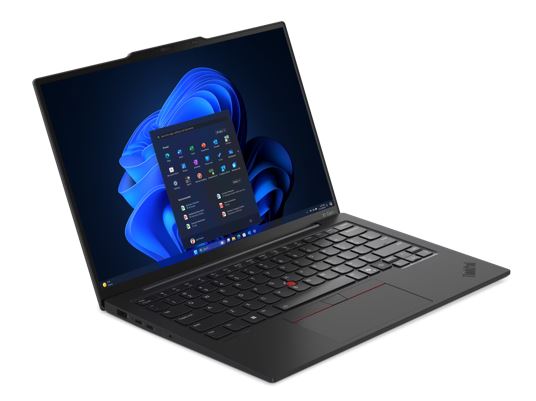

LENOVO ThinkPad X1 Carbon 14″ WUXGA TOUCH IR Intel U7-258V 32GB DDR5 512GB SSD WIN 11 PRO Arc GPU Copilot+ PC 47 TOPS 3yr PRE 1.1kg | 21NS0048AU

LENOVO ThinkPad X1 Carbon 14″ WUXGA TOUCH IR Intel U7-258V 32GB DDR5 512GB SSD WIN 11 PRO Arc Graphics Copilot+ PC NPU 47 TOPS Thunderbolt 3yr PRE 1.1kg

PERFORMANCE
Processor Intel® Core™ Ultra 7 258V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.8GHz, 12MB
AI PC Category Copilot+ PC
NPU Integrated Intel® AI Boost, up to 47 TOPS
Graphics Integrated Intel® Arc™ Graphics 140V
Chipset Intel® SoC Platform
Memory 32GB Soldered LPDDR5x-8533, MoP Memory
Memory Slots Memory soldered to systemboard, no slots, dual-channel
Max Memory 32GB soldered memory, not upgradable
Storage 512GB SSD M.2 2280 PCIe® 4.0×4 NVMe® Opal 2.0
Storage Support One drive, up to 2TB M.2 2280 SSD
Storage Slot One M.2 2280 PCIe® 5.0 x4 slot
Card Reader None
Audio Chip High Definition (HD) Audio, Realtek® ALC713 codec
Speakers Stereo speakers, 2W x2, Dolby Atmos®
Camera FHD 1080p + IR Discrete with Privacy Shutter
Microphone 2x, 360°
Battery Integrated 57Wh
Power Adapter 65W USB-C® Slim GaN (3-pin)
DESIGN
Display 14″ WUXGA (1920×1200) IPS 500nits Anti-glare, 100% sRGB, 60Hz, Low Power, Touch
Touchscreen On-cell, 10-point Multi-touch
Keyboard Backlit, English
Touchpad Trackpad
Case Color Black, Paint
Case Material Carbon Fiber (Top), Aluminium (Bottom)
Pen Pen Not Supported
Weight Starting at 1.1 kg (2.43 lbs)
SOFTWARE
Operating System Windows® 11 Pro, English (US) / English (UK)
Bundled Software Intel® Connectivity Performance Suite
CONNECTIVITY
Ethernet No Onboard Ethernet
WLAN + Bluetooth Intel® Wi-Fi® 7 BE201, 802.11be 2×2 + BT5.4
WWAN Non-WWAN
SIM Card None
NFC None
Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
Optional Ports (configured) None
Docking Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® X1 Carbon Gen 13
SECURITY PRIVACY
Smart Card Reader None
Security Chip Discrete TPM 2.0 Enabled
Fingerprint Reader Touch Style, Match-on-Chip, in Keyboard Key
Physical Locks Kensington® Nano Security Slot™, 2.5 x 6 mm
Other Security Camera privacy shutter
Ultrasonic Human Presence Detection (FHD 1080p + IR camera models)
IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 1-year, Courier or Carry-in
Included Upgrade 3Y Premier Support Upgrade from 1Y Courier/Carry-in, CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
ACCESSORIES
Bundled Accessories None
CERTIFICATIONS
Green Certifications ENERGY STAR® 8.0
EPEAT™ Gold Registered
ErP Lot 6/26
RoHS compliant
TCO Certified 10.0
Other Certifications Eyesafe® Certified 2.0
Intel® Evo™ Platform
SGS High Performance Al PC Certification
Mil-Spec Test MIL-STD-810H military test passed

Product Last Updated: 31/10/2026
