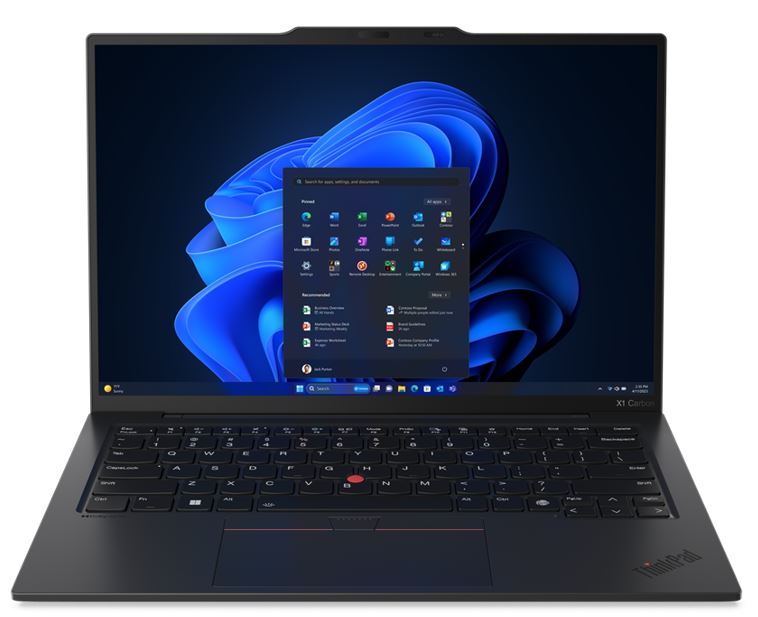

LENOVO ThinkPad X1 Carbon 14′ WUXGA IR Intel U5-125U 16GB DDR5 512GB SSD WIN 11 PRO Intel Graphics NPU 11 TOPS Thunderbolt 3yr Pre 1kg | 21KC002NAU

LENOVO ThinkPad X1 Carbon 14′ WUXGA IR Intel AI U5-125U 16GB DDR5 512GB SSD WIN 11 PRO Intel Graphics Fingerprint Thunderbolt Backlit 3yr PS 1kg 57Wh

Technical Specification

Display 14′ WUXGA (1920×1200) IPS 400nits Anti-glare, 100% sRGB, 60Hz, Low Power

Touchscreen None

Processor Intel® Core™ Ultra 5 125U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.3GHz, 12MB

Memory 16GB Soldered LPDDR5x-6400

Max Memory 16GB soldered memory, not upgradable

Storage 512GB SSD M.2 2280 PCIe® 4.0×4 NVMe® Opal 2.0

Card Reader None

Operating System Windows® 11 Pro

Graphics Integrated Intel® Graphics

Standard Ports
1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)

Fingerprint Reader Touch Style, Match-on-Chip, in Keyboard Key

Ethernet No Onboard Ethernet

WLAN + Bluetooth Intel® Wi-Fi® 6E AX211, 802.11ax 2×2 + BT5.3

Dimensions (WxDxH) 312.80 x 214.75 x 14.96 mm

Weight 1.08 kg

Base Warranty 3Y Premier Support

Product Last Updated: 11/12/2025
