LENOVO ThinkCentre M90A G5 AIO 27′ QHD Intel i5-14500 VPRO 16GB DDR5 512GB SSD Windows 11 Pro 3yrs OS Wty Webcam Speakers Keyboard Mouse | 12JQS09S00

LENOVO ThinkCentre M90A G5 AIO 27′ QHD Intel i5-14500 VPRO 16GB DDR5 512GB SSD Windows 11 Pro 3yrs OS Wty Webcam Speakers Keyboard Mouse

PERFORMANCE
Processor Intel® Core i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB
Graphics Integrated Intel® UHD Graphics 730
Chipset Intel® Q670 Chipset
Memory 1x 16GB SODIMM DDR5-4800
Memory Slots Two DDR5 SODIMM slots, dual-channel capable
Max Memory Models with Core i3/i5: Up to 64GB DDR5-4800
Models with Core i7: Up to 64GB DDR5-5200
Storage 512GB SSD M.2 2280 PCIe® 4.0×4 Performance NVMe® Opal 2.0
Max Storage Support Models with Intel® UHD graphics: Up to two drives, 2x M.2 SSD • M.2 SSD up to 2TB each
Card Reader 3-in-1 Card Reader
Optical DVD±RW
Audio Chip High Definition (HD) Audio, Realtek® ALC233NL-VB2-CG codec
Speakers 3Wx2
Camera 5.0MP + IR Hybrid
Microphone 2x, Array
Power Supply 180W 90%
DESIGN

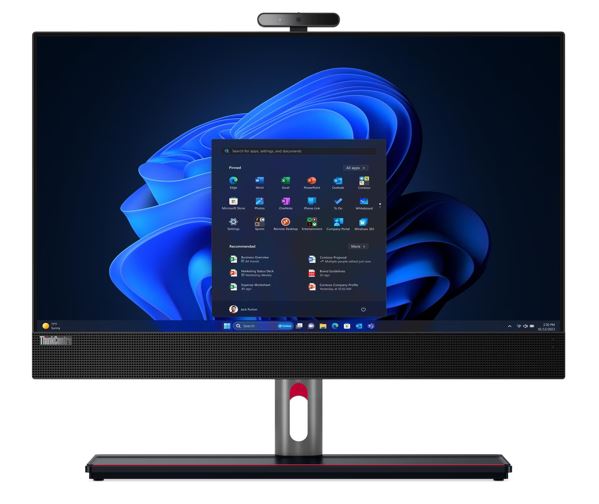

Display 23.8′ FHD (1920×1080) IPS Anti-glare 250nits, 60Hz, 72% NTSC, software low blue light, flicker free, touch
Touchscreen 10-point Multi-touch
Keyboard USB Calliope Keyboard, Black, Russian
Mouse USB Calliope Mouse, Black
Optional Bay None
Expansion Slots Models with Intel® UHD graphics: Three M.2 slots (one for WLAN, two for SSD)
Case Color Black

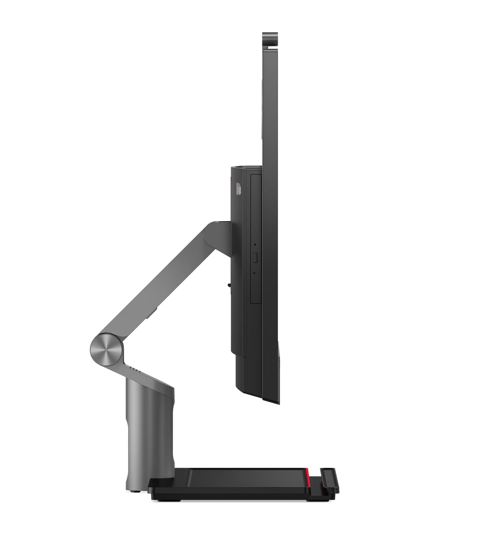

Stand UltraFlex V Stand
Mounting VESA mount
Pen Pen Not Supported
Form Factor AIO (23.8 inches)
Dimensions (WxDxH) Lowest in flat mode: 539.6 x 344.19 x 227.54 mm (21.24 x 13.55 x 8.96 inches) Highest in vertical mode: 539.6 x 252.60 x 472.00 mm (21.24 x 9.94 x 18.58 inches)
Weight Around 7.83 kg (17.3 lbs)
CONNECTIVITY
WLAN + Bluetooth Intel® Wi-Fi® 6E AX211, 802.11ax 2×2 + BT5.3, vPro®
WWAN Non-WWAN
Ethernet Integrated 100/1000M

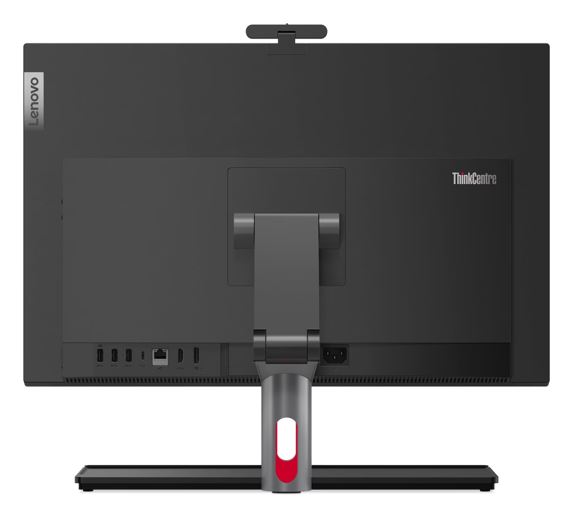

Rear Ports 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with data transfer and 15W charging
3x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x HDMI® (HDMI in 1.4 / HDMI out 2.1 TMDS combo port)
1x DisplayPort™ 1.4
1x Ethernet (RJ-45)
Optional Rear Ports (configured) 1x serial

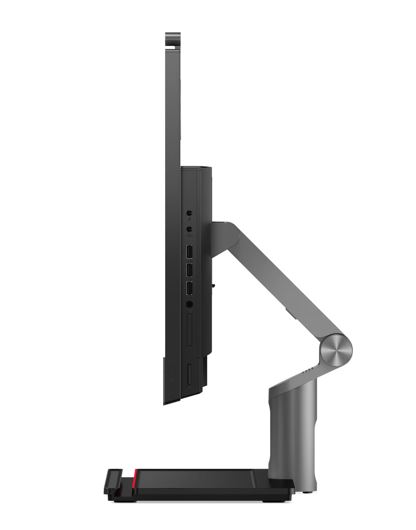

Right Ports 3x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)
Optional Right Ports (configured) 1x card reader
Optional Ports (configured) 1x Serial
SECURITY PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Chassis Intrusion Switch Chassis Intrusion Switch
Additional Security None
Other Security ThinkShutter camera cover (camera models)
MANAGEABILITY
System Management Non-vPro®
SERVICE
Warranty 3-year warranty
CERTIFICATIONS
Green Certifications ErP Lot 3
GREENGUARD®
RoHS compliant
TCO Certified 9.0
TCO edge
Other Certifications TÜV Rheinland® Low Blue Light (Software Solution)
TÜV Rheinland® Flicker Free
UL Anti-dust
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation, Contamination by Fluids, Salt Fog)

Product Last Updated: 11/12/2025
