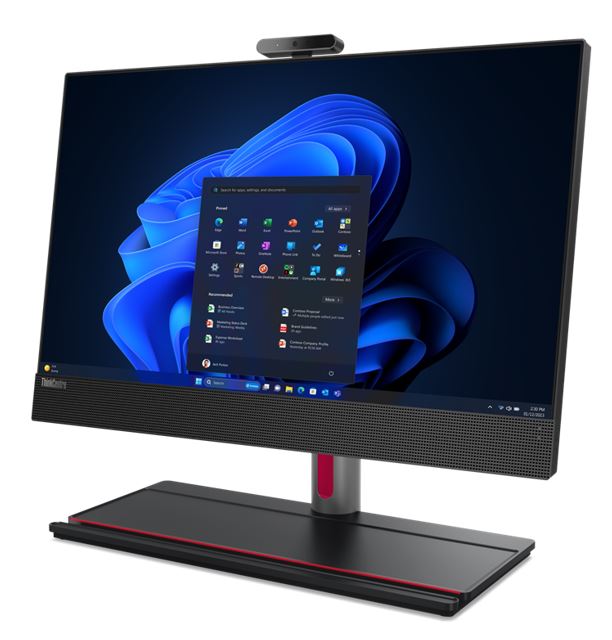

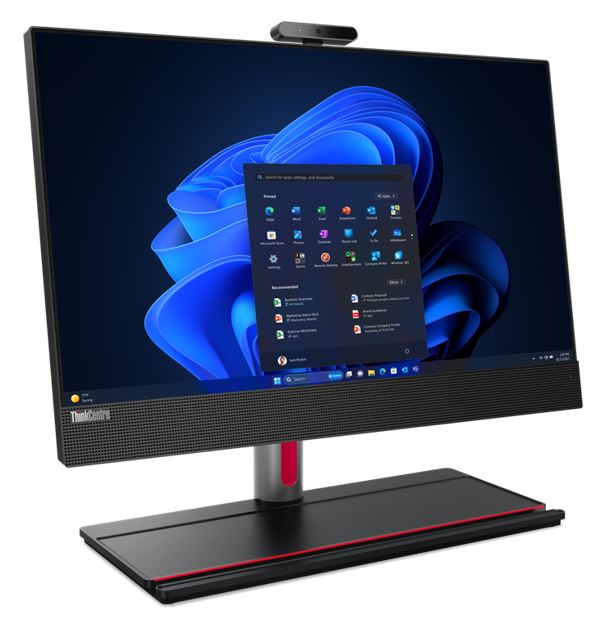

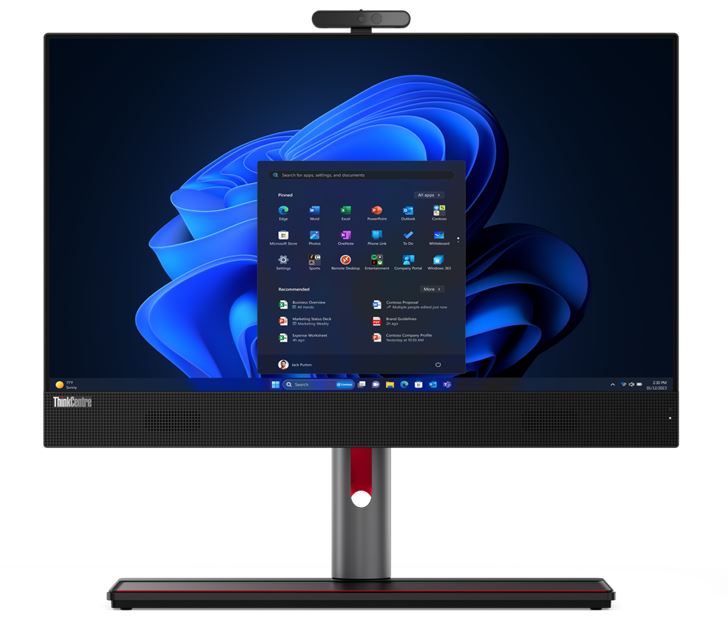

LENOVO ThinkCentre M90A AIO 23.8′ FHD Touch Intel i5-14500 vPro 16GB 512GB SSD WIN 11 PRO 3yrs Onsite Wty Webcam Speakers Mic Keyboard Mouse | 12SH001EAU

LENOVO ThinkCentre M90A AIO 23.8′ FHD Touch Intel i5-14500 vPro 16GB 512GB SSD WIN 11 PRO 3yrs Onsite Wty Webcam Speakers Mic Keyboard Mouse

Technical Specification
Form Factor AIO (23.8 inches)
Display 23.8′ FHD (1920×1080) IPS Anti-glare 250nits, 60Hz, 72% NTSC, software low blue light, flick free, touch
Chipset Intel® Q670 Chipset
Processor Intel® Core™ i5-14500, 14C (6P + 8E) / 20T, P-core 2.6 / 5.0GHz, E-core 1.9 / 3.7GHz, 24MB
Memory 16GB= 2x 8GB SO-DIMM DDR5-4800
Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable
Storage 512GB SSD M.2 2280 PCIe® 4.0×4 NVMe® Opal 2.0
Display 23.8′ FHD (1920×1080) IPS Anti-glare 250nits, 60Hz, 72% NTSC, software low blue light, flick free, touch
Storage Support Models with Intel® UHD graphics: Up to two drives, 2x M.2 SSD • M.2 SSD up to 2TB each
Graphics Integrated Intel® UHD Graphics 770

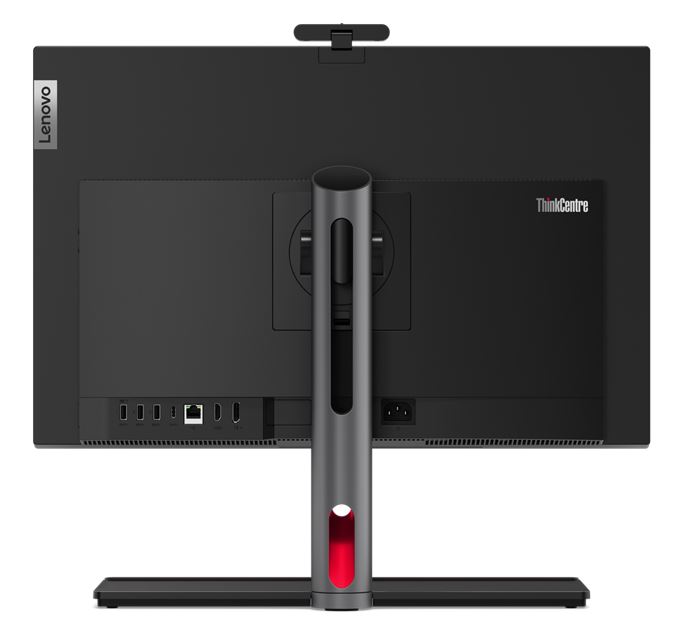

Ports
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with data transfer and 15W charging
3x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x HDMI® (HDMI in 1.4 / HDMI out 2.1 TMDS combo port)
1x DisplayPort™ 1.4
1x Ethernet (RJ-45)
3x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)
Ethernet Integrated 100/1000M
WLAN + Bluetooth Intel® Wi-Fi® 6 AX201, 11ax 2×2 + BT5.2
Expansion Slots Models with Intel® UHD graphics: Three M.2 slots (one for WLAN, two for SSD)
Keyboard USB Traditional Keyboard, Black
Mouse USB Calliope Mouse, Black
Operating System Windows® 11 Pro
Dimensions (WxDxH) 539.6 x 344.19 x 227.54 mm
Weight 7.83 kg
Base Warranty 3-year, Onsite
Camera 5.0MP + IR Hybrid
Speakers 3Wx2
Card Reader 3-in-1 Card Reader
Ethernet Integrated 100/1000M

Product Last Updated: 11/12/2025
