LENOVO ThinkCentre M70s G5 SFF Desktop PC i7-14700 16GB DDR5 512GB SSD Windows 11 Pro 3yrs Onsite Wty WiFi6E LAN UHD GPU Keyboard Mouse | 12U30018AU

LENOVO ThinkCentre M70s G5 SFF Desktop PC i7-14700 16GB DDR5 512GB SSD Windows 11 Pro 3yrs Onsite Wty Ethernet RJ-45 LAN UHD Graphics Keyboard Mouse

PERFORMANCE
Processor Intel® Core™ i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB
Graphics Integrated Intel® UHD Graphics 770
Chipset Intel® Q670 Chipset
Memory 2x 8GB UDIMM DDR5-5600
Memory Slots Two DDR5 UDIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5
Storage 512GB SSD M.2 2280 PCIe® 4.0×4 NVMe® Opal 2.0
Storage Support Up to three drives, 1x 3.5′ HDD + 1x 2.5′ HDD + 1x M.2 SSD • 3.5′ HDD up to 2TB • 2.5′ HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Card Reader None
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC623-CG codec
Speakers 1Wx1
Power Supply 260W 90%
DESIGN
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Optional Bay None
Expansion Slots One PCIe® 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Two M.2 slots (one for WLAN, one for SSD)
Case Color Black
Stand None
Dust Filter None
Pen Pen Not Supported
Form Factor SFF (8.2L)
Dimensions (WxDxH) 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
Weight Around 5.3 kg (11.7 lbs)
CONNECTIVITY
Ethernet Integrated 100/1000M
WLAN + Bluetooth Intel® Wi-Fi® 6 AX201, 802.11ax 2×2 + BT5.2
WWAN Non-WWAN

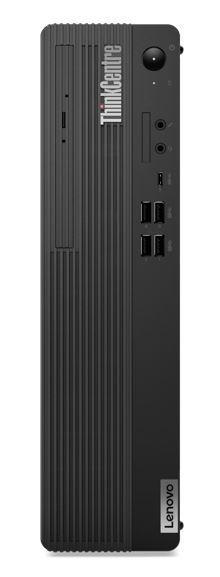

Front Ports 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)

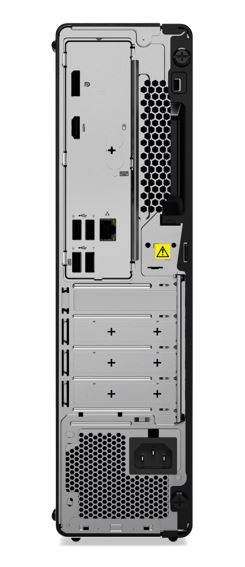

Rear Ports 4x USB-A (Hi-Speed USB / USB 2.0)
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4a (HBR2, DSC)
1x Ethernet (RJ-45)
Optional Rear Ports (configured) None
SECURITY PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Padlock Loop
Smart Cable Clip None
Chassis E-Lock None
Chassis Intrusion Switch None
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 3-year,
Included Upgrade None
CERTIFICATIONS
Green Certifications ENERGY STAR® 8.0
EPEAT™ Gold Registered
ErP Lot 3
GREENGUARD®
RoHS compliant
TCO Certified 9.0
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)

Product Last Updated: 11/12/2025
