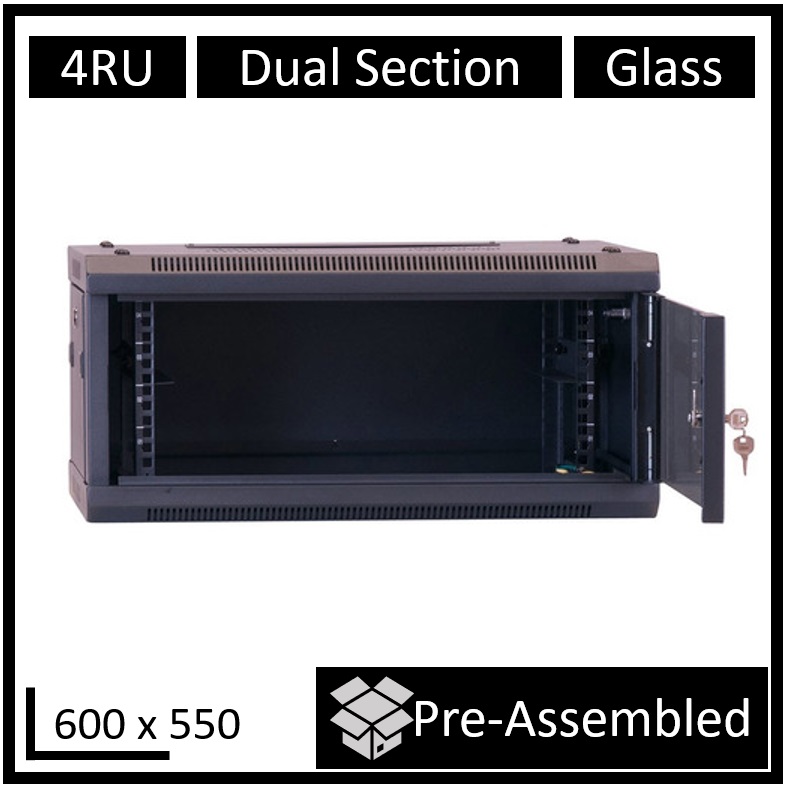

LDR Two-Section Hanging Cabinets RCLDR-DS550-4U-A

The LDR two-section hanging cabinets RCLDR-DS550-4U-A are specifically designed for close circuit television, security alarm, and access control system installations. Their unique feature is quick and easy access to the back section of the cabinet, ensuring efficient maintenance and device management.

Data Sheet: Click Here

FEATURES:
•Side Doors: Mounted on latches with a lock assembly option.
•Frame Load Capacity: 60kg.
•Protection Class: IP20 (Indoor protection).
•Front Door: Glass with a lock.

SPECIFICATIONS:
•Nominal Height: 4U (approximately 280mm).
•Outer Dimensions:
•Length: 600mm
•Width : 550mm
•Height : 300mm
•Mounting Depth: 400mm
•Product Weight: 16kgs
•Color: Black
•Front Doors: Glass with a lock
•Back Doors: Not applicable (n/a)
•Side Panels: Full steel, dismounted on latches with a lock assembly option.
•Shipping Dimensions: 620mmx570mmx300mm ( Length xWidth x Height )
•Shipping Weight: 17kgs
•Carton:1pc/box

Product Description Last Updated: 29/09/2025
