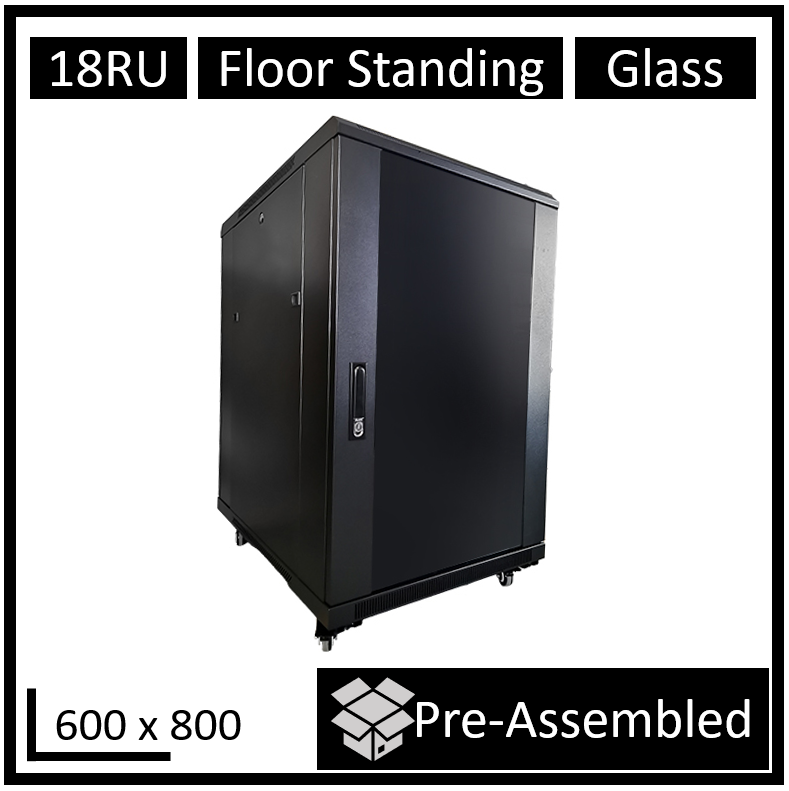

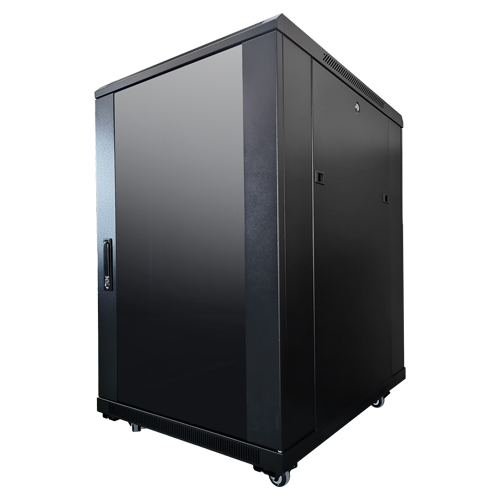

LDR Assembled 18U Server Rack Cabinet RCLDR-FS800-18U-A

The LDR single section cabinets of the mounting height 18U are most often used in close circuit television, security alarm, and access control system installations. Apart from security and organization, they provide quick access to the elements mounted inside. The glass in the front door is made of smoked tempered glass with a thickness of 5mm. Apart from the possibility to mount devices in 19-inch standard, other devices that are not compatible with the rack system (such as switches or recorders) may be placed in the cabinets with the use of shelves. A wide range of optional accessories allows to adjust the cabinet to your own needs.

Data Sheet: Click Here

FEATURES:

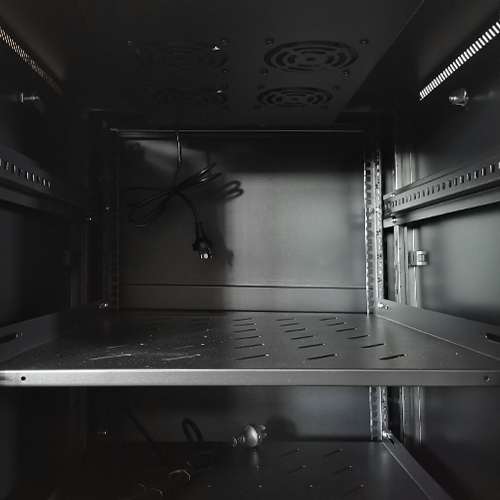

•4 Way Fan, 8-Port PDU Two Shelves Included
•Side doors mounted on latches with a lock assembly option
•A frame with a load capacity of 800kg
•Protection class IP20
•Front door – glass

SPECIFICATIONS:
•Nominal height 18U
•Total outer height 820mm
•Outer width 600mm
•Outer depth 900mm
•Mounting depth 800mm
•Colour Black
•Maximum load capacity 800kg
•Protection class IP20
•Front doors Glass with a lock
•Back doors Solid with a lock
•Side panels Full steel dismounted on latches with a lock assembly option
•Shipping Dimensions: 1000mm x 620mm x 820mm
•Shipping Weight: 56kgs
•Carton: 1pc/box
