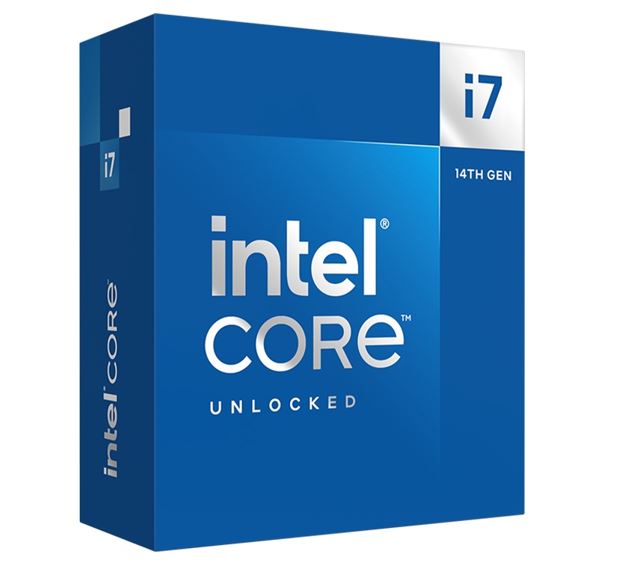

Intel i7 14700K CPU 4.3GHz (5.6GHz Turbo) 14th Gen LGA1700 20-Cores 28-Threads 33MB 125W UHD Graphic 770 Unlocked Retail Raptor Lake no Fan | BX8071514700K

Intel i7 14700K CPU 4.3GHz (5.6GHz Turbo) 14th Gen LGA1700 20-Cores 28-Threads 33MB 125W UHD 770 Graphic Unlocked Retail Raptor Lake no Fan

Total Cores 20
# of Performance-cores 8
# of Efficient-cores 12
Total Threads 28
Max Turbo Frequency 5.6 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.6 GHz
Performance-core Max Turbo Frequency 5.5 GHz
Efficient-core Max Turbo Frequency 4.3 GHz
Performance-core Base Frequency 3.4 GHz
Efficient-core Base Frequency 2.5 GHz
Cache 33 MB Intel® Smart Cache
Total L2 Cache 28 MB
Processor Base Power 125 W
Maximum Turbo Power 253 W

Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 89.6 GB/s
ECC Memory Supported ‡ Yes

Processor Graphics ‡ Intel® UHD Graphics 770
Graphics Base Frequency 300 GHz
Graphics Max Dynamic Frequency 1.6 GHz
Graphics Output eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units 32
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3
Multi-Format Codec Engines 2
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡ 4
Device ID 0xA780

Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1×16+4 | 2×8+4
Max # of PCI Express Lanes 20

Product Last Updated: 23/11/2025
