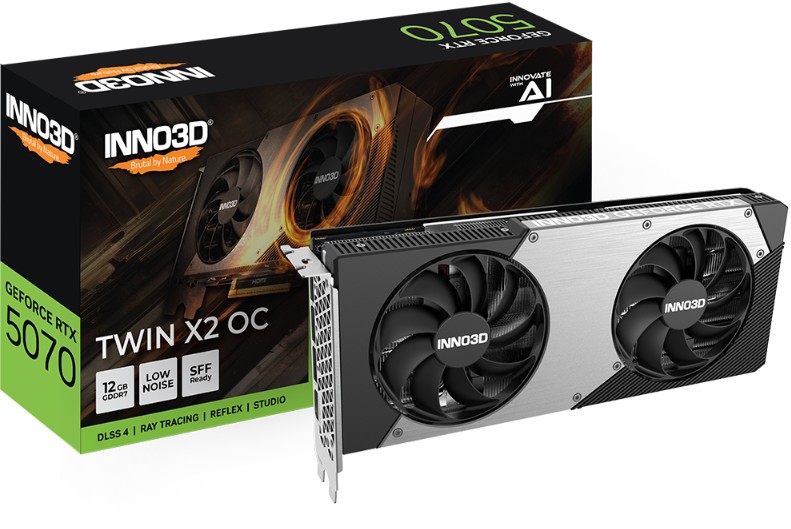

INNO3D nVidia GeForce RTX 5070 TWIN X2 OC 12GB GDDR7 2542 MHz Boost Clock, RAM 28 Gbps, 3x DP, 1xHDMI 250x116x41mm | N50702-12D7X-195064N

INNO3D nVidia GeForce RTX 5070 TWIN X2 OC 12GB GDDR7

GPU Engine Specs
CUDA Cores
6144
Boost Clock (MHz)
2542MHz
Base Clock (MHz)
2325MHz

Thermal and Power Spec
Minimum System Power Requirement (W)
650W
Supplementary Power Connectors
2x PCIe 8-pin cables (adapter in box) OR 300 W or greater PCIe Gen 5 cable

Memory Specs
Memory Clock
28Gbps
Standard Memory Config
12GB
Memory Interface
GDDR7
Memory Interface Width
192-bit
Memory Bandwidth (GB/sec)
672 GB/sec

Feature Support
Real-Time Ray Tracing
Yes
Ray Tracing Cores
4th Generation, 94 TFLOPS
Tensor Cores
5th Generation, 988 AI TOPS
NVIDIA Architecture
Blackwell
Microsoft DirectX
12 Ultimate
NVIDIA DLSS
4
NVIDIA Ansel
Yes
NVIDIA FreeStyle
Yes
Bus Support
PCI Express Gen 5
NVIDIA ShadowPlay
Yes
OS Certification
Windows 11 / 10, Linux, FreeBSDx86
NVIDIA Highlights
Yes
NVIDIA G-SYNC™-Ready
Yes
Game Ready Drivers
Yes
NVIDIA Studio Drivers
Yes
NVIDIA GPU Boost™
Yes
Vulkan API
1.4
OpenGL
4.6
NVIDIA Encoder
1x Ninth Generation
NVIDIA Decoder
1x Sixth Generation

Accessories
Graphics Card Dimensions
Length
250mm
Height
116mm
Width
41mm

Display Support
Multi Monitor
up to 4
Maxmium Digital Resolution
4K at 480Hz or 8K at 165Hz with DSC
HDCP
2.3
Standard Display Connectors
3x DisplayPort 2.1b, 1x HDMI 2.1b

Product Last Updated: 11/12/2025
