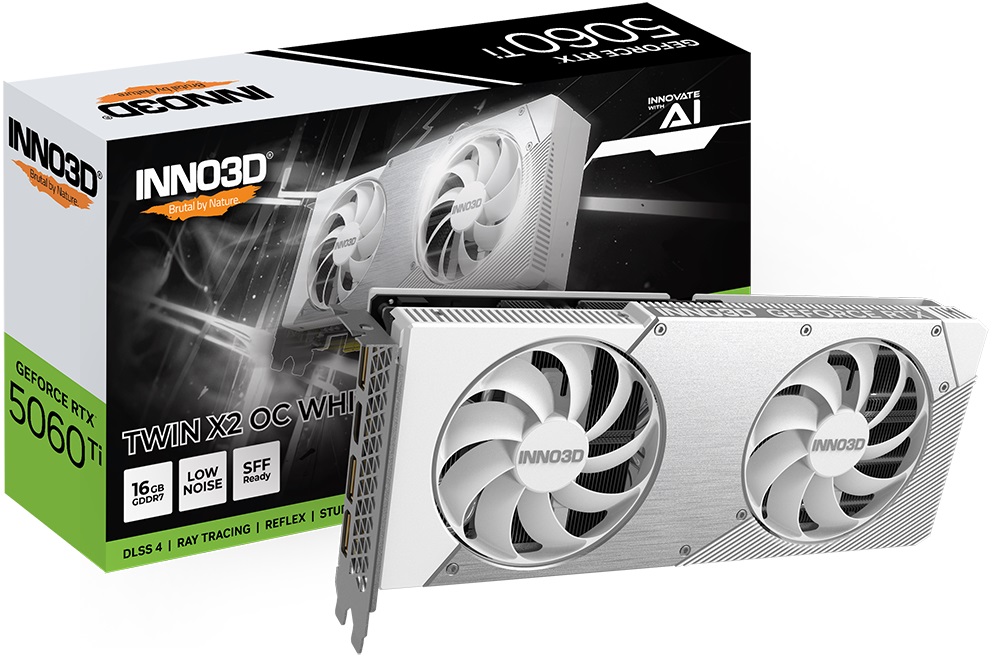

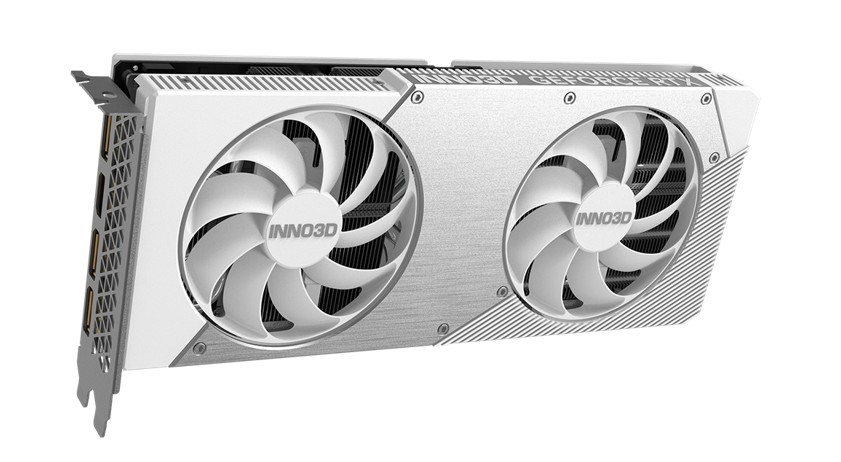

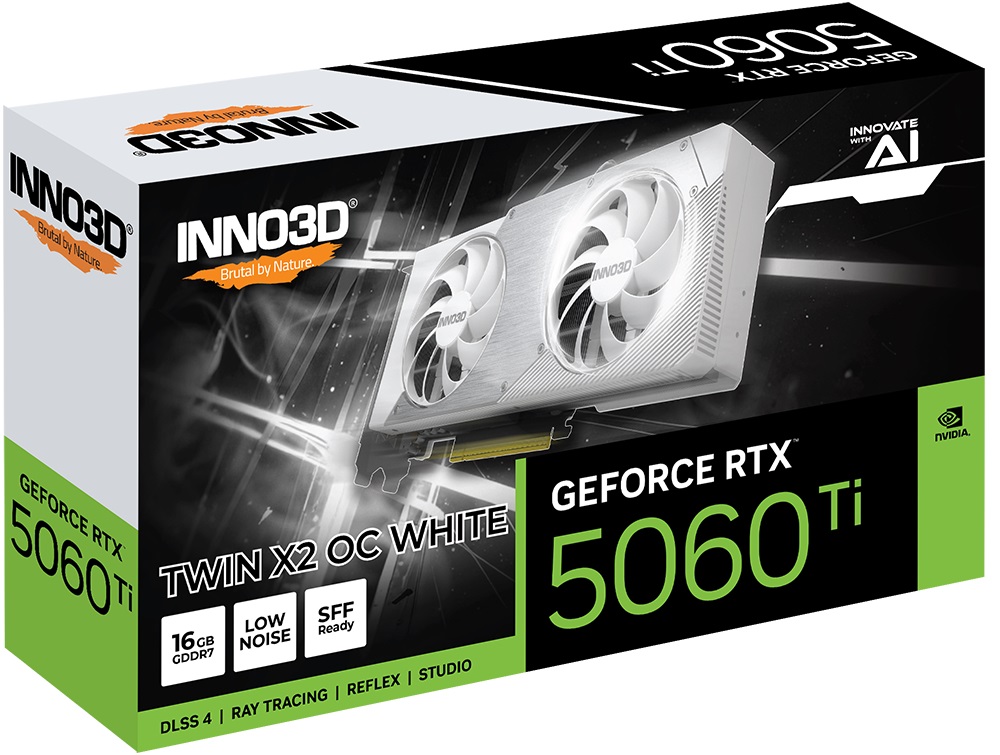

INNO3D nVidia GeForce RTX 5060 Ti TWIN X2 OC White 16GB GDDR7, 2602MHz Boost Clock, RAM 28Gbps, 3xDP, 1xHDMI | N506T2-16D7X-191073W

INNO3D nVidia GeForce RTX 5060 Ti TWIN X2 OC White 16GB GDDR7, 2572MHz Boost Clock, RAM 28Gbps, 3xDP, 1xHDMI

GPU Engine Specs
CUDA Cores 4608
Boost Clock (MHz) 2602MHz
Base Clock (MHz) 2325MHz

Thermal and Power Spec
Minimum System Power Requirement (W) 650W
Supplementary Power Connectors 1x PCIe 8-pin cables

Memory Specs
Memory Clock 28Gbps
Standard Memory Config 16GB
Memory Interface GDDR7
Memory Interface Width 128-bit
Memory Bandwidth (GB/sec) 448 GB/sec

Feature Support
Real-Time Ray Tracing Yes
Ray Tracing Cores 4th Generation, 72 TFLOPS
Tensor Cores 5th Generation, 759 AI TOPS
NVIDIA Architecture Blackwell
Microsoft DirectX 12 Ultimate
NVIDIA DLSS 4
NVIDIA Ansel Yes
NVIDIA FreeStyle Yes
Bus Support PCI Express Gen 5
NVIDIA ShadowPlay Yes
OS Certification Windows 11 / 10, Linux, FreeBSDx86
NVIDIA Highlights Yes
NVIDIA G-SYNC™-Ready Yes
Game Ready Drivers Yes
NVIDIA Studio Drivers Yes
NVIDIA GPU Boost™ Yes
Vulkan API 1.4
OpenGL 4.6
NVIDIA Encoder 1x Ninth Generation
NVIDIA Decoder 1x Sixth Generation

Accessories
Graphics Card Dimensions Length 250mm Height 116mm Width 41mm
Display Support Multi Monitor up to 4
Maxmium Digital Resolution 4K at 480Hz or 8K at 165Hz with DSC
HDCP 2.3
Standard Display Connectors 3x DisplayPort 2.1b, 1x HDMI 2.1b

Product Description Last Updated: 23/09/2025
