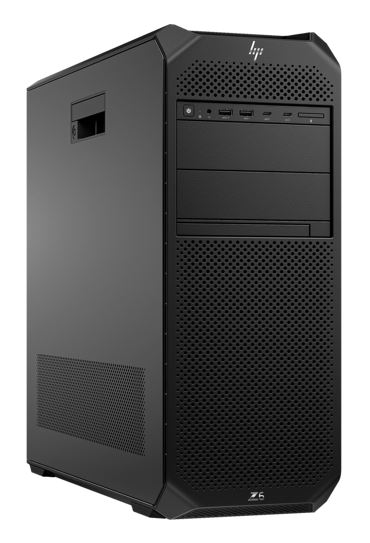

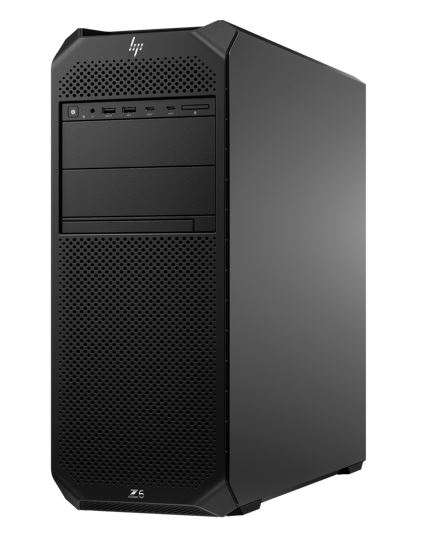

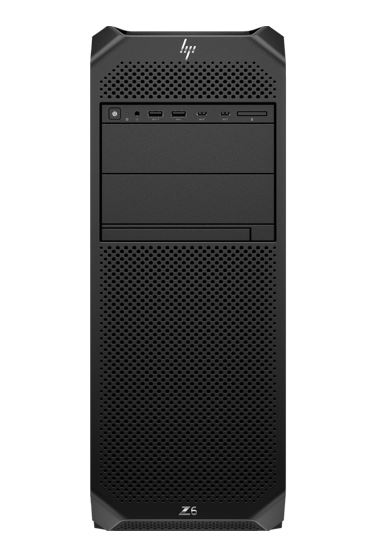

HP Z6 G5 AI Workstation Intel Xeon W5-3435X 128GB DDR5 1TB SSD +2TB HDD Windows 11 PRO DG RTX A4000 16GB NPU 3YR Active Care NBD Onsite CTO | 57D37AV-CTO

HP Z6 G5 AI Workstation Intel Xeon W5-3435X 128GB DDR5 1TB SSD +2TB HDD Windows 11 PRO DG RTX A4000 16GB NPU 100 TOPS 3YR Active Care NBD Onsite

Available Operating Systems Windows 11 Pro 64 Downgrade Win 10 Pro 64 for Workstations 6 Cores Plus
Processor family Intel® Xeon® processor
Available Processors Intel® Xeon® W5-3435X (3.1 GHz base frequency, up to 4.7 GHz with Intel® Turbo Boost Technology, 45 MB L3 cache, 16 cores, 32 threads)
Chipset Intel® W790
Form factor Tower
Memory 128GB (8x16GB) DDR5 4800 DIMM ECC REG 1CPU Memory
Internal storage Z Turbo 1TB PCIe-4×4 2280 TLC M.2 Solid State Drive
HP Z Turbo 2TB PCIe-4×4 2280 TLC M.2 2nd SSD
Optical drive No Included ODD
Graphics NVIDIA RTX A4000 16 GB FH Blower Fan 4DP PCIe x16 Graphics
Audio Realtek ALC3205-CG
Expansion slots 2 PCIe 4 x4; 2 PCIe 4 x16; 1 PCIe 3 x16; 1 PCIe 5 x16(Rear bulkhead access can be achieved through all slots but 2 PCIe 4 x8 are internalaccess only for M.2.)
Ports and connectors Front: 4 USB Type-A 5Gbps signaling rate;
1 headphone/microphone combo;
Type-A SuperSpeed USB 5Gbps Front IO v2 Entry Module
Input devices HP 125 BLK Wired Keyboard
HP Wired 320M Mouse
Communications
LAN Intel X550-T2 10GbE Dual Port NIC
No Load Flex Port
Software HP PC Hardware Diagnostics UEFI;
HP Performance Advisor;
HP Support Assistant;
HP PC Hardware Diagnostics Windows;
HP ImageAssistant;
HP Manageability Integration Kit;
HP Anyware;
HP Services Scan;
HP Data Science Stack Manager
Full volume encryption;
HP Secure Erase;
Kensington lock slot;
Secure authentication;
TPM 2.0 certified;
HP BIOSphere;
HP Sure Run;
HPSure Click;
HP Sure Sense;
HP Sure Admin;
HP Platform Certificate;
HP Sure Start;
HP Sure Recover;
Self-Encrypted Drives
Security Software Licenses HP Wolf Pro Security Edition
Management features HP Driver Packs; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Smart Support
Power 1125W EPA90 WW Power Supply
Dimensions 16.89 x 46.48 x 44.45 cm;
31.3 x 61.0 x 59.3 cm(Package)
Weight Starting at 12.8 kg;
(Exact weights depend upon configuration (System weight only))
Ecolabels EPEAT® registered configurations available; TCO Certified configurations available
Energy star certified ENERGY STAR® certified (configurations available)
Sustainable impactspecifications Low Halogen; 40% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; External powersupply 90% efficiency; Plastic cushion inserts contain 80% recycled content; Ocean-bound plastic in system fan; 10% post-industrialrecycled metal; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable
Compatible displays All HP Z Displays and HP DreamColor Displays are supported.
Warranty HP 3 year Active Care Next Business Day Response OnsiteWorkstationHardware Support

Product Last Updated: 11/12/2025
