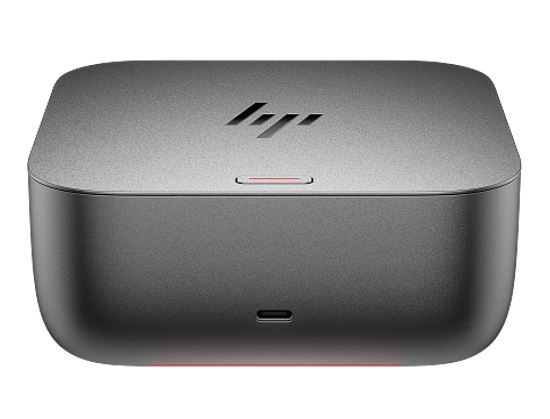

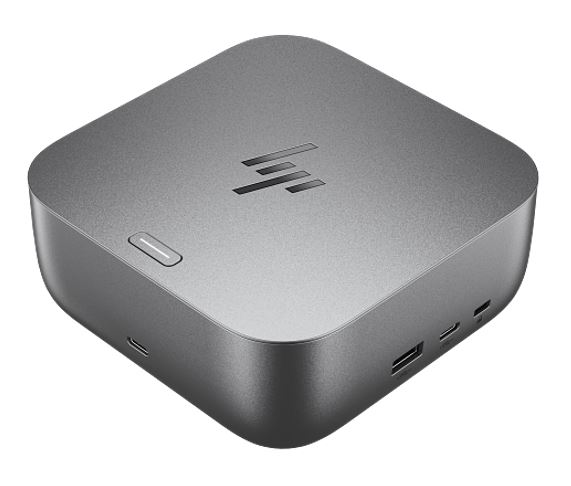

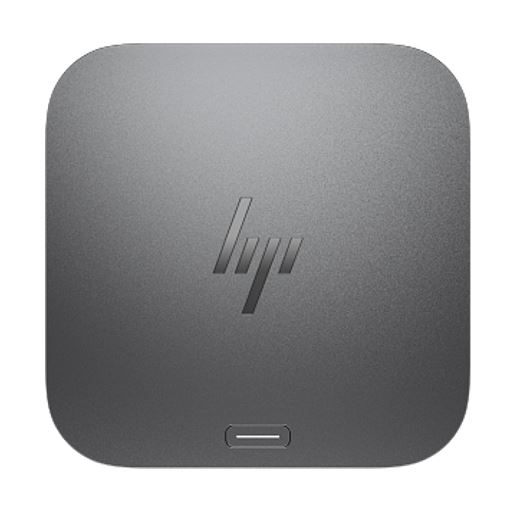

HP Dock G6 Thunderbolt 4 Ulltra Docking Station – 280W Power Delivery 4xDisplays 2xDP 1xHDMI 4xUSB-A 2xUSB-C 1xTB4 2.5GbE RJ45 for HP WS ~4J0G4AA | AW5M5UT

HP Dock G6 Thunderbolt 4 Ulltra Docking Station – 280W Power Delivery 4xDisplays 2xDP 1xHDMI 4xUSB-A 2xUSB-C 1xTB4 2.5GbE RJ45 for HP Workstation

Cable length 1 m
Cable type 1 Thunderbolt™ 4 cable and a 4.5 mm power barrel to connect to host system
Cartons per layer 28
Cartons per pallet 5 (air); 10 (ocean)
Certified collaboration software Intel® Thunderbolt™ 4
Compatibility Tested and supported on select HP commercial PCs. For HP notebook compatibility please visit – https://pcb.inc.hp.com/webapp/#!/us-en and search by notebook. Tested and supported on select 3rd party PCs. Contact your local sales representative to learn more.
Compatibility Statement Note Our docks are tested and validated with most HP USB-C and Thunderbolt 4 systems as well as tested with select 3rd party systems like Dell, Lenovo, and Apple. Contact your local sales representative to learn more.
Compatible Operating Systems Windows 10; Windows 11; macOS; Linux; ThinPro; ChromeOS
Connection type Thunderbolt™ 4 and 4.5 mm power barrel
Country of origin Made in China or Thailand
Current, maximum 6.15 A
Dimensions (W x D x H) 12.1 x 12.1 x 4.95 cm
Display support Up to 3 external displays and 1 PC display or up to 4 external displays
Displays supported Quad monitor
Drivers included Intel® NIC driver; Realtek NIC driver (ARM); Realtek NIC driver (Windows)
I/O Port location Rear
LED Front LED bar: RGB LED (white, blue, amber, green, red); Power button: RGB LED (white, blue, amber, green, red)
Management features HP CMSL; Disconnected Firmware updates; eTag; PXE Boot; Wake on LAN (from the Off, Sleep or Hibernation states); MAC address pass-through (from the On, Off, Sleep or Hibernation states); LAN/WLAN switching; Disable LAN; Event messaging; Intel® vPro® Technology (wired)
Management Software Poly Lens with automatic firmware updates
Manufacturer Warranty HP three-year limited warranty
Material Type for item FERT
Minimum System Requirements USB Type-C® (USB Power Delivery, Alt Mode DisplayPort™); Thunderbolt™ 4 port
Multiple order quantity 1
Non-Operating Humidity Range 5 to 95% non-condensing
Non-operating temperature – Celsius -20 to 60°C
Operating altitude -15 to 3,048 m
Operating humidity range 10 to 90% non-condensing
Operating temperature range 32 to 95°F
Operating voltage 19.5 V
Package dimensions (W x D x H) 39.6 x 17.1 x 9.5 cm
Package weight 1.14 kg
Pallet (layers) 6 (air); 14 (ocean)
Pallet dimensions (W x D x H) 120 x 100 x 14 cm
Physical security 1 nano security lock slot

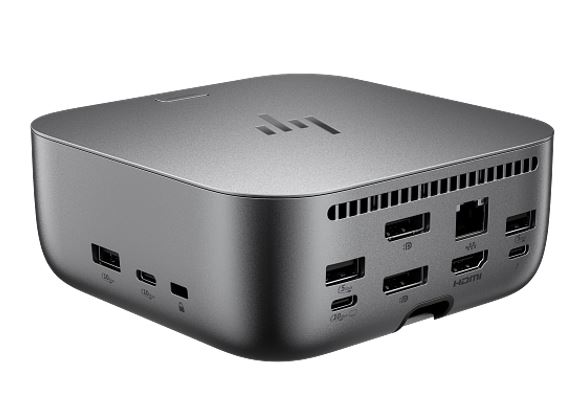

Ports 1 Thunderbolt™ 4 with USB Type-C® 40Gbps signaling rate; 1 USB Type-C® 10Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4); 2 USB Type-A 5Gbps signaling rate (charging); 1 HDMI 2.1; 2 DisplayPort™ 1.4; 1 RJ-45 (2.5 GbE)
Power 330 W external power adapter
Power button type Mechanical power button with RGB LED indicator to power or wake host system
Power delivery (PD) profiles 12V/5A; 15V/5A; 20V/5A; 5V/3A; 9V/3A
Power to host Up to 280 W via 4.5 mm power barrel or up to 180 W via Thunderbolt™ 4 cable (both HP and non-HP host devices that support Power Delivery 3.1)
Products per pallet 168 (air); 392 (ocean)
Products per pallet layer 28
Refresh rate (maximum) 360 Hz
Registration required No
Resolution (maximum) Up to 8K

Product Last Updated: 11/12/2025
