Gigabyte Z790 EAGLE AX Intel LGA 1700 ATX Motherboard, 4x DDR5 ~192GB, 3x PCI-E x16, 3x M.2, 4x SATA, 5x USB 3.2, 1x USB-C, 2x USB 2.0 | Z790 EAGLE AX

Gigabyte Z790 EAGLE AX Intel LGA 1700 ATX Motherboard, 4x DDR5 ~192GB, 3x PCI-E x16, 3x M.2, 4x SATA, 5x USB 3.2, 1x USB-C, 2x USB 2.0

Supports Intel® Core™ 14th/ 13th /12th processors
Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design M.2 Thermal Guard: To Ensure VRM Power Stability M.2 SSD Performance
EZ-Latch：PCIe 5.0×16 Slot with Quick Release Design
Fast Networks：2.5GbE LAN Wi-Fi 6E 802.11ax
Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
* 6+6 phases parallel power design

CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU

Chipset
Intel® Z790 Express Chipset

Memory
14th and 13th Generation Intel® Core™ i9/i7 Pocessors:
– Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
– Support for DDR5 4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

Wireless Communication module
Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)

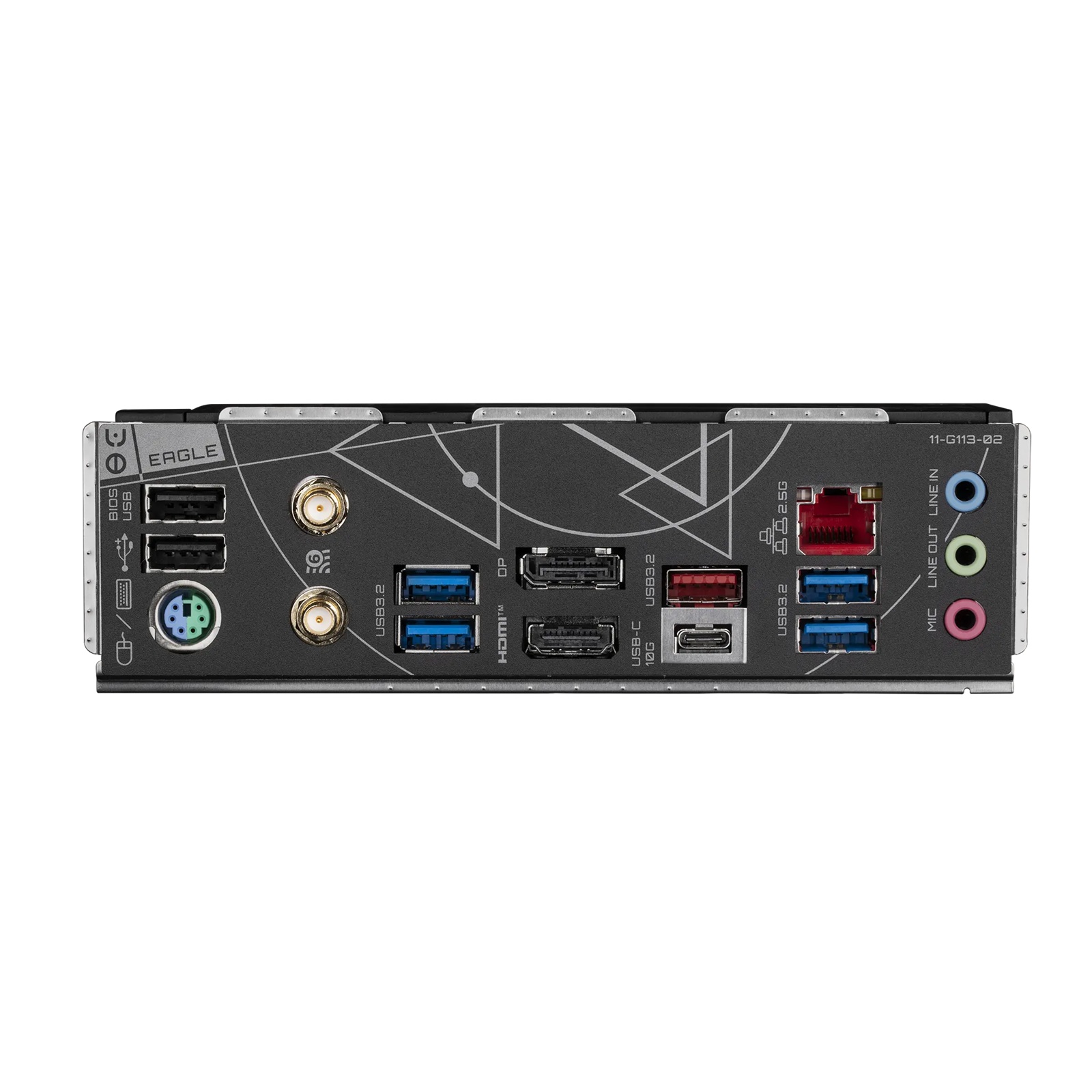

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x SMA antenna connectors (1T1R)
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks

Form Factor
ATX Form Factor; 30.5cm x 24.4cm

Operating System
Windows 11 64-bit / Windows 10 64-bit

Product Last Updated: 28/04/2025
