Gigabyte X870E AORUS XTREME AI TOP AMD AM5 ATX Motherboard 4x DDR5~256GB,3x PCIe x16, 4x M.2, 4x SATA 6, 10x USB 3.2, 6x USB2.0, 2x USB-C, | X870E AORUS XTREME AI TOP

Gigabyte X870E AORUS XTREME AI TOP AMD AM5 ATX Motherboard 4x DDR5~256GB,3x PCIe x16, 4x M.2, 4x SATA 6, 10x USB 3.2, 6x USB2.0, 2x USB-C,

CPU
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors

Chipset
AMD X870E

Memory
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Audio
Realtek® ALC1220 CODEC

LAN
2 x Marvell® AQtion AQC113C 10GbE LAN chips

Expansion Slots
3 x PCI Express x16 slot

Storage Interface
4 x M.2
4 x SATA 6Gb/s

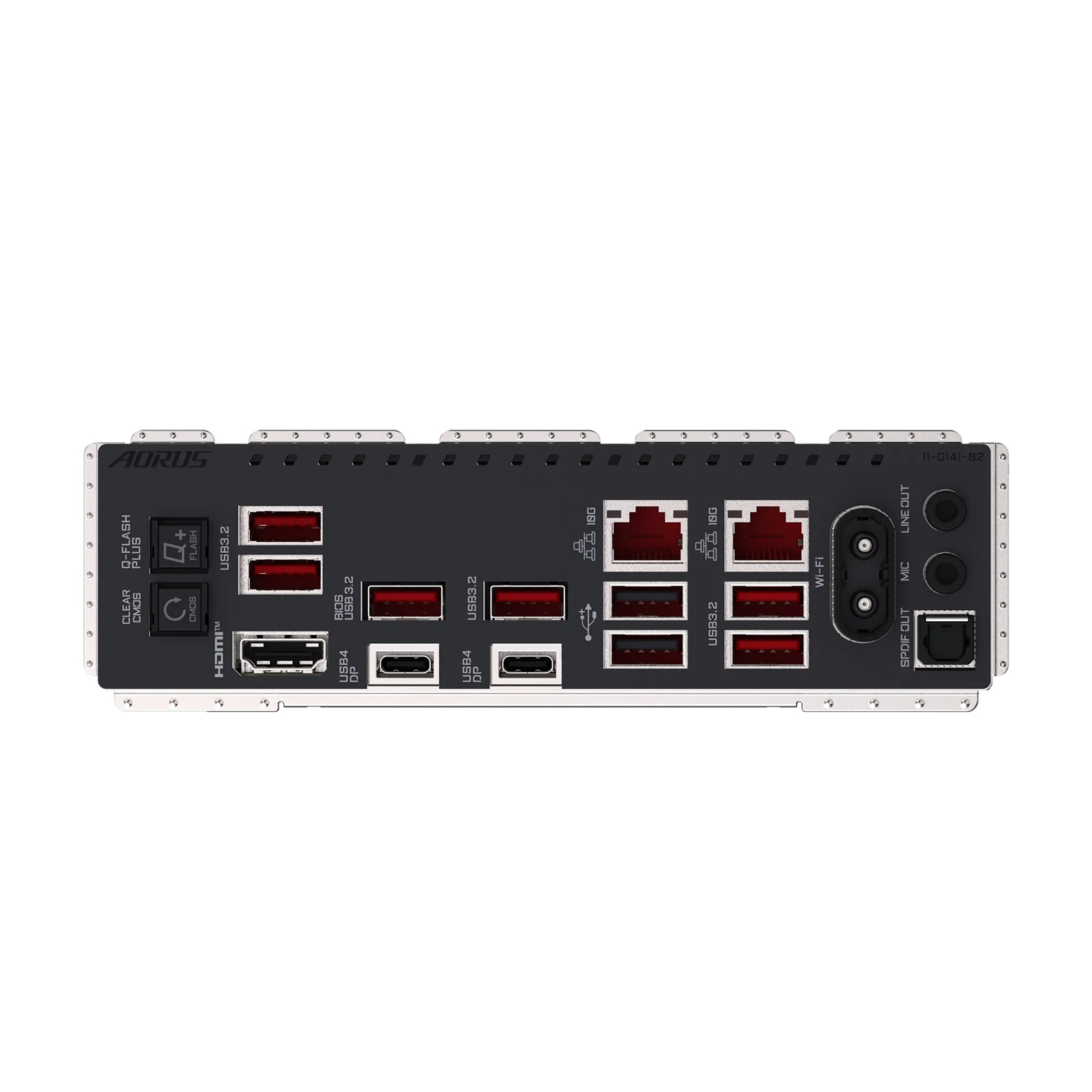

USB
CPU+ASMedia USB4® controller:
– 2 x USB4® USB Type-C® ports on the back panel
CPU:
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
– 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
– 4 x USB 3.2 Gen 1 ports available through the internal USB headers
– 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit

Form Factor
E-ATX Form Factor; 30.5cm x 26.9cm

Product Last Updated: 23/11/2025
