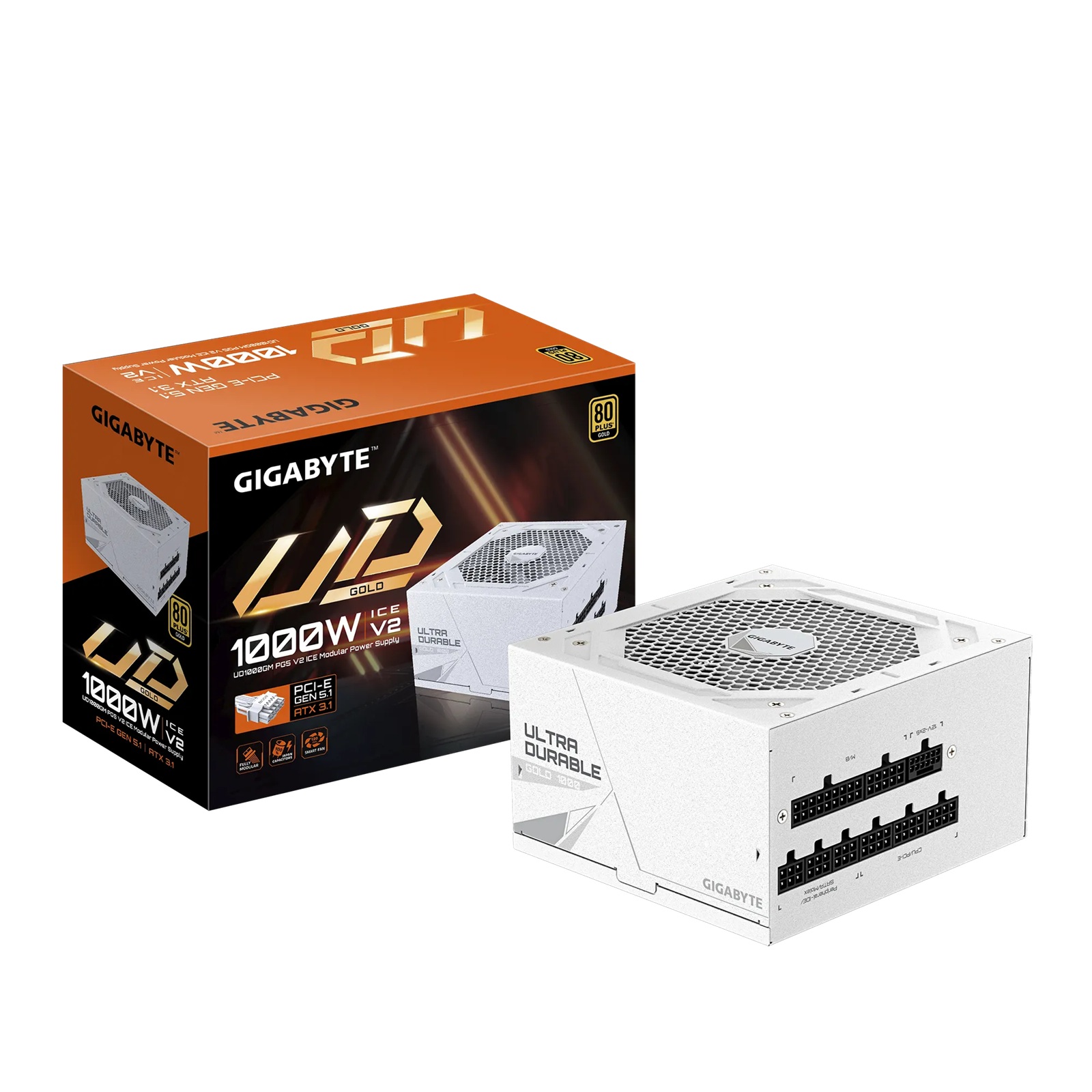

Gigabyte UD1000GM PG5 ICE 1000W ATX PSU Power Supply 80+ Gold >90% 120mm Fan Black Flat Cables Single +12V >100K Hrs | GP-UD1000GM PG5 ICE

Gigabyte UD1000GM PG5 ICE 1000W ATX PSU Power Supply 80+ Gold >90% 120mm Fan Black Flat Cables Single +12V >100K Hrs

KEY FEATURE
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
120mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics cards
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact design
10 years warranty (Adjusted according to different regions)

SPECIFICATION:
Model GP-UD1000GM PG5
Type Intel Form Factor ATX 12V
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 15-6.5A
Input Frequency 60-50 Hz
Output Capacity 1000W
Dimension 150 x 140 x 86 mm
Fan Type 120mm Hydraulic Bearing(HYB)fan
80 PLUS Gold
Efficiency 90% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, black
Connectors:
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1

Product Last Updated: 11/12/2025
