Gigabyte TTRX50 AI TOP AMD Ryzen Motherboard, sTR5 Threadripper, DDR5 ECC RDIMM up to 2TB, PCIe 5.0, USB4, Wi-Fi 7, Dual 10GbE, E-ATX | TRX50 AI TOP

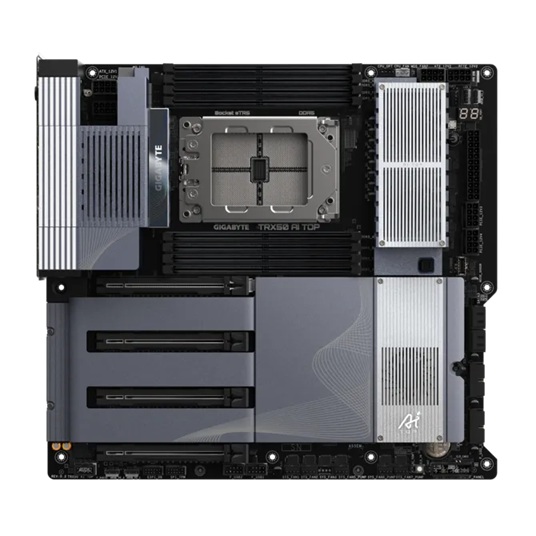

Gigabyte TTRX50 AI TOP AMD Ryzen Motherboard, sTR5 Threadripper, DDR5 ECC RDIMM up to 2TB, PCIe 5.0, USB4, Wi-Fi 7, Dual 10GbE, E-ATX

CPU
AMD Socket sTR5, support for:
AMD Ryzen™ Threadripper™ PRO 9000-WX Series Processors/ AMD Ryzen™ Threadripper™ 9000 Series Processors/ AMD Ryzen™ Threadripper™ PRO 7000-WX Series Processors/ AMD Ryzen™ Threadripper™ 7000 Series Processors

Chipset
AMD TRX50

Memory
Support for DDR5 ECC Registered memory modules (RDIMM/RDIMM-3DS)
8 x DDR5 DIMM sockets supporting up to 2 TB of system memory
– AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX Series Processors support 8-Channel memory architecture
– AMD Ryzen™ Threadripper™ 9000/7000 Series Processors support Quad Channel memory architecture
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Audio
Realtek® ALC4080 CODEC (rear panel audio)
– Support for DTS:X® Ultra
– High Definition Audio
– 2-channel
Realtek® ALC897 CODEC (front panel audio)

LAN
2 x Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps)

Wireless Communication module
Qualcomm® Wi-Fi 7 QCNCM865
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.3
– Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Expansion Slots
CPU:
3 x PCI Express x16 slots (PCIEX16_1/PCIEX16_2/PCIEX16_3), integrated in the CPU:
– AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX Series Processors support PCIe 5.0 x16 mode
– AMD Ryzen™ Threadripper™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.)
1 x PCI Express x16 slot (PCIEX16_4), integrated in the CPU:
– AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX/9000 Series Processors support PCIe 5.0 x16 mode
– AMD Ryzen™ Threadripper™ 7000 Series Processors support PCIe 4.0 x16 mode

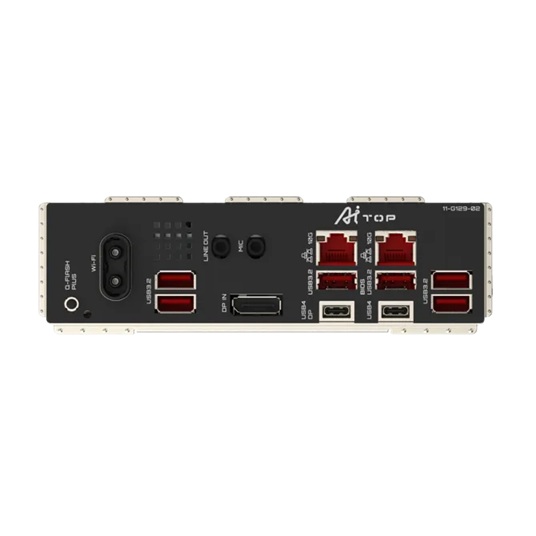

USB
CPU:
– 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+Intel® JHL8540 USB4® controller:
– 2 x USB4® USB Type-C® ports on the back panel

Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x PCIe power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
4 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x power button
1 x Clear CMOS button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper

I/O Controller
iTE® I/O Controller Chip

Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Operating System
Support for Windows 11 64-bit
Support for Ubuntu 24.04 LTS

Form Factor
E-ATX Form Factor; 30.5cm x 33.0cm

Product Last Updated: 24/09/2026
