Gigabyte Radeon™ RX 9070 XT GAMING OC 16G, 20 Gbps, GDDR6, 256 bit, PCI-E 5.0, PSU 850W, 8 pin*3, DisplayPort 2.1a *2 HDMI 2.1b *2 | GV-R9070XTGAMING OC-16GD

Gigabyte Radeon™ RX 9070 XT GAMING OC 16G, 20 Gbps, GDDR6, 256 bit, PCI-E 5.0, PSU 850W, 8 pin*3, DisplayPort 2.1a *2 HDMI 2.1b *2

SPECIFICATION

Graphics Processing
Radeon™ RX 9070 XT

Core Clock
Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz)
Game Clock* : up to 2520 MHz (Reference card: 2400 MHz)

Stream Processors
4096

Memory Clock
20 Gbps

Memory Size
16GB

Memory Type
GDDR6

Memory Bus
256 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680×4320

Multi-view
4

Card size
L=288 W=132 H=56 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
850W

Power Connectors
8 pin*3

Output
DisplayPort 2.1a *2
HDMI 2.1b *2

Accessories
Quick guide

Note
* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147

FEATURES
Powered by Radeon™ RX 9070 XT
Integrated with 16GB GDDR6 256bit memory interface

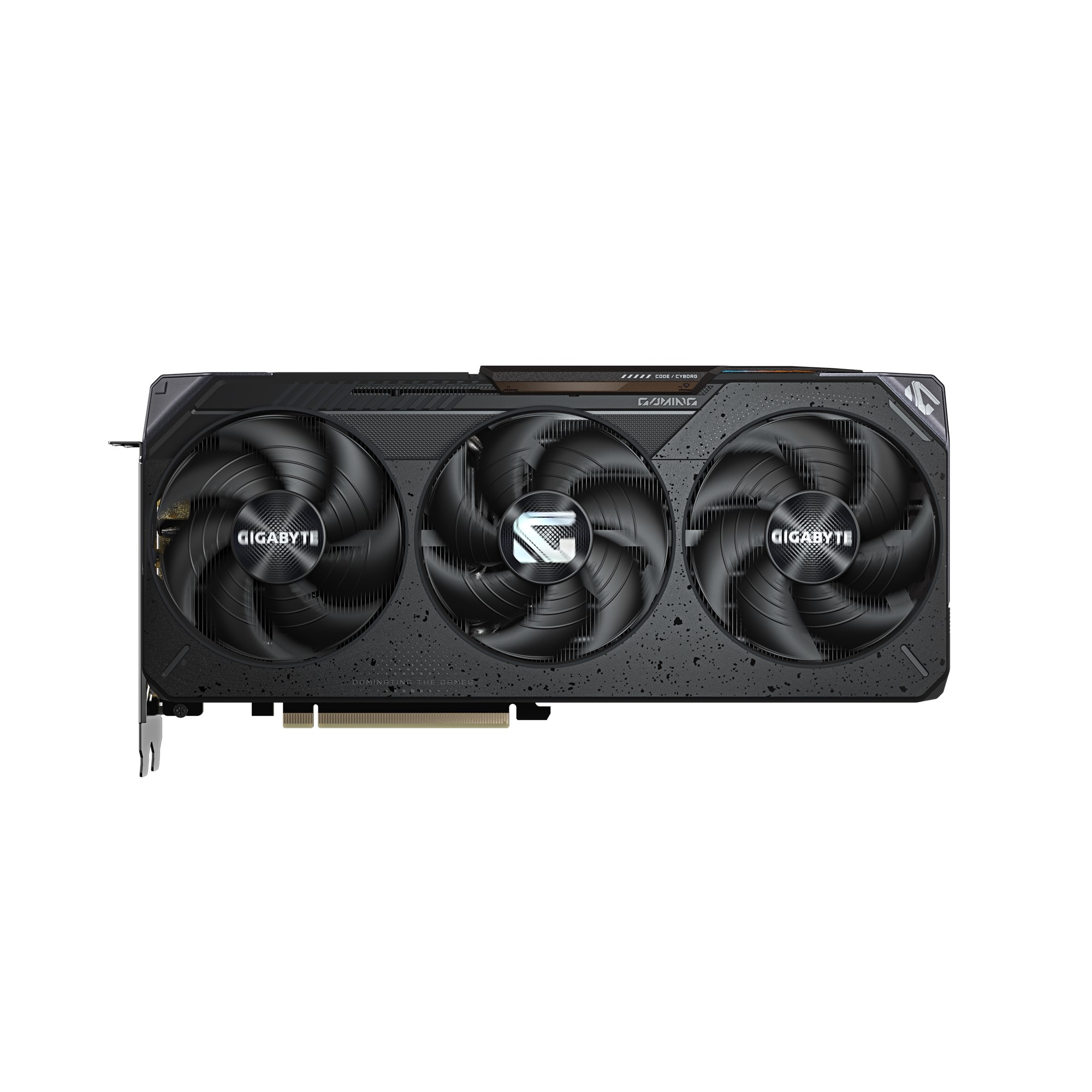

WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
Reinforced structure

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN
The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.

MULTI-LAYERED VISUAL
Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.

UNIQUE TEXTURE
Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.

RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

SLIDING SIDE PLATE
Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.

REINFORCED STRUCTURE

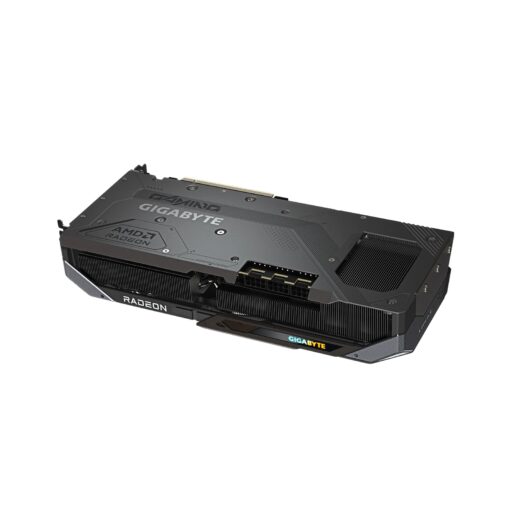

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

Product Description Last Updated: 23/09/2025
