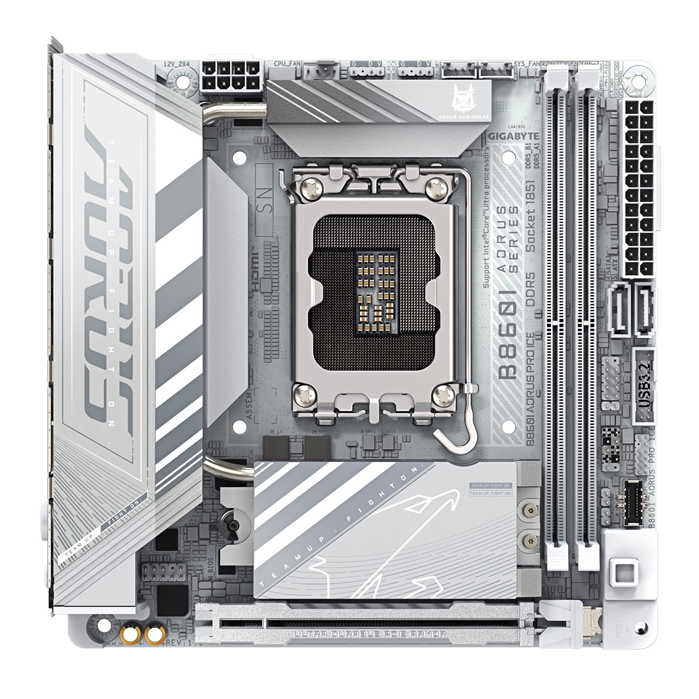

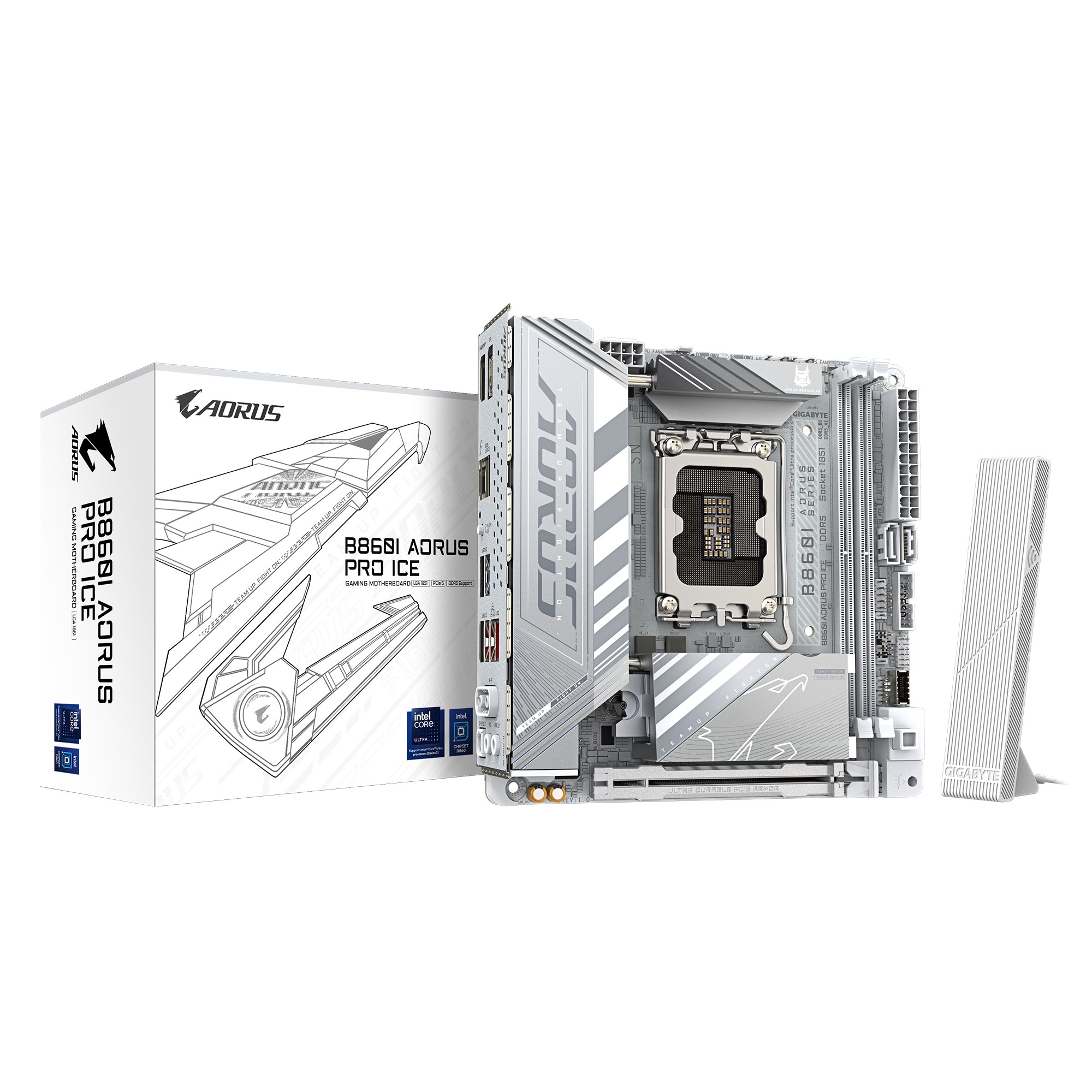

Gigabyte M/B B860I AORUS PRO ICE 1.0, Intel ® B860, 4 x DDR5 up to 128 GB, 1x HDMI, 1 x PCI Express x16, 2 x M.2, 2 x SATA, 8x USB 3.2 | B860I AORUS PRO ICE

Gigabyte M/B B860I AORUS PRO ICE 1.0, Intel ® B860, 4 x DDR5 up to 128 GB, 1x HDMI, 1 x PCI Express x16, 2 x M.2, 2 x SATA, 8x USB 3.2

CPU
LGA1851 socket: Support for Intel ® Core™ Ultra Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
L3 cache varies with CPU

Chipset
Intel ® B860 Express Chipset

Memory
Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to ‘Memory Support List’ on GIGABYTE’s website for more information.)

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
– 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port),supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolutionsupported is 5120×2880@60 Hz with 24 bpp (single display output).When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output).
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, ‘Back Panel Connectors,’ for more information.)
* Support for DisplayPort 2.1 version and HDCP 2.3
– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 2.1 version and HDCP 2.3
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time

LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0)

Expansion Slots
CPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Storage Interface
CPU:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
– 1 x M.2 connector on the back of the motherboard (Socket 3, M key,type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
– 2 x SATA 6Gb/s connectors
RAID 0 and RAID 1 support for SATA storage devices

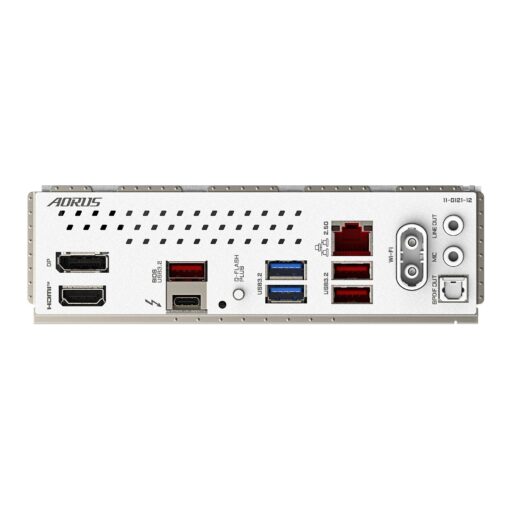

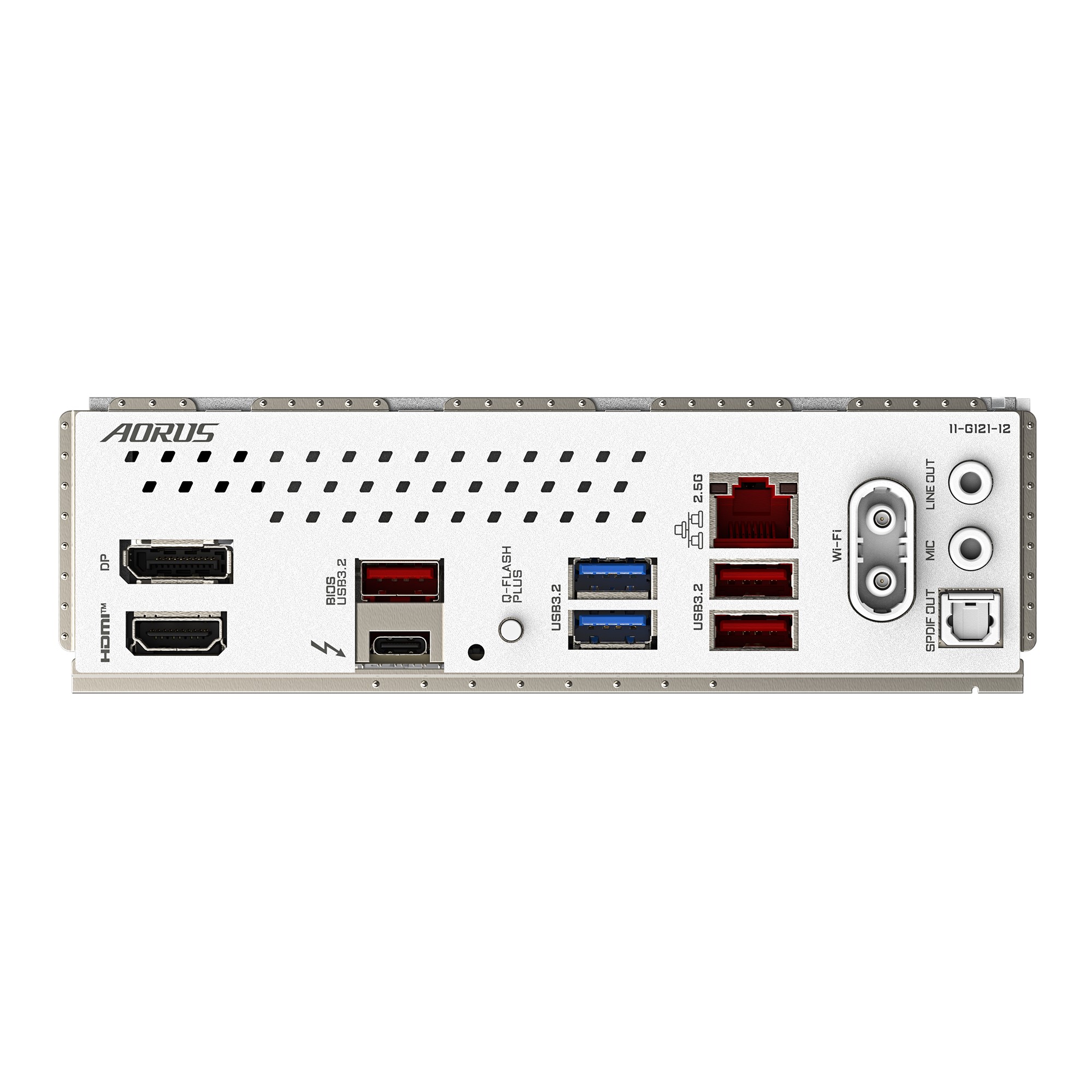

USB
CPU:
– 1 x USB4® USB Type-C® port on the back panel
Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
– 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
– 2 x USB 2.0/1.1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Product Last Updated: 28/04/2025
