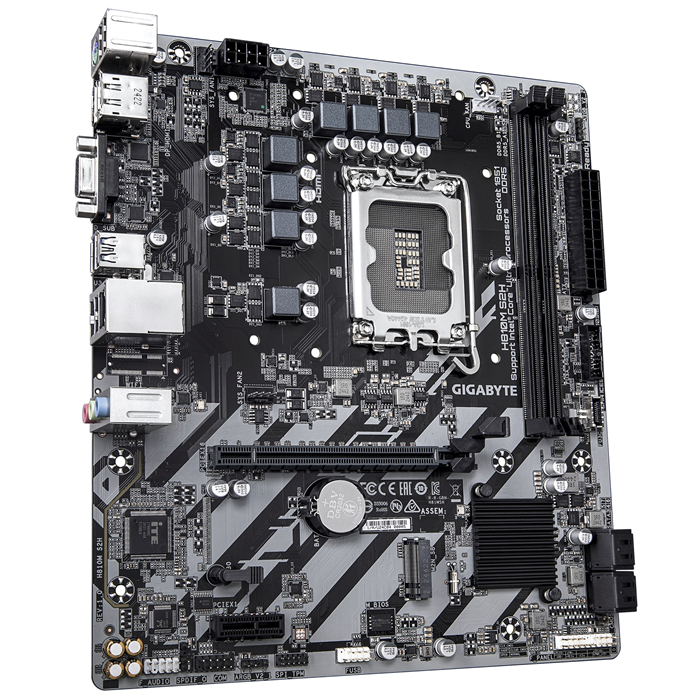

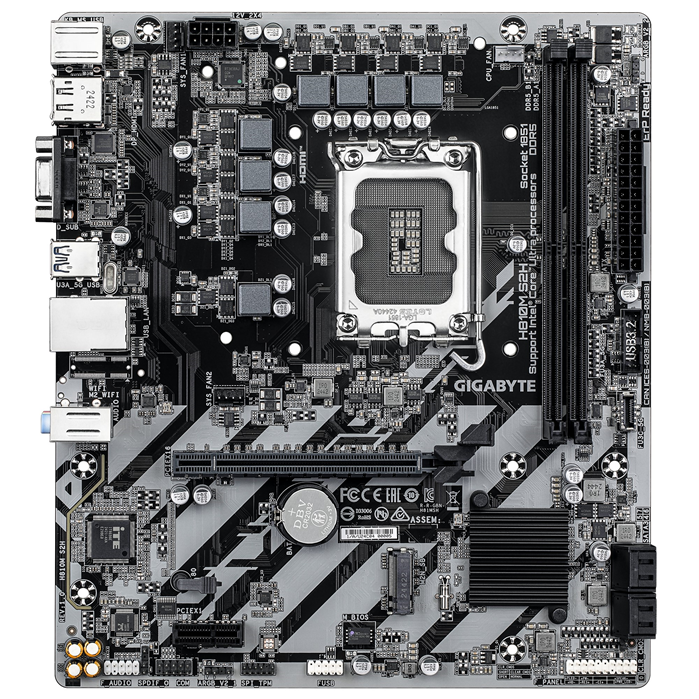

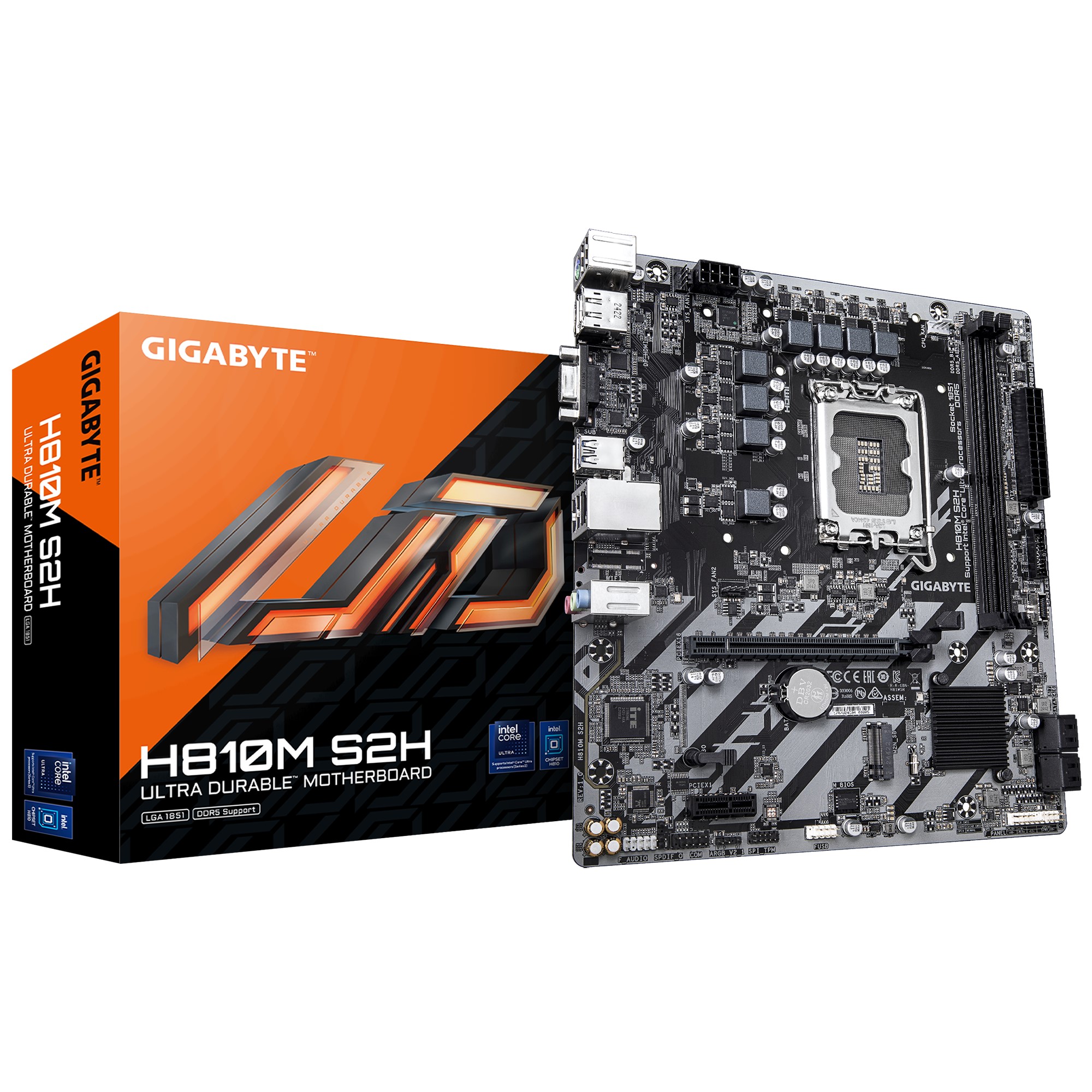

Gigabyte H810M S2H Intel LGA 1851 ATX Motherboard, 2x DDR5 ~128GB, 1x PCI-E x16, 1x PCI-E x1, 1x M.2, 4x SATA, 3x USB 3.2, 3x USB 2.0 | H810M S2H

Gigabyte H810M S2H Intel LGA 1851 ATX Motherboard, 2x DDR5 ~128GB, 1x PCI-E x16, 1x PCI-E x1, 1x M.2, 4x SATA, 3x USB 3.2, 3x USB 2.0

Specification:

CPU
LGA1851 socket: Support for Intel® Core™ Ultra Processors

Chipset
Intel® H810 Express Chipset

Memory
Support for DDR5 6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@60 Hz
* Support for DisplayPort 2.1 version.
– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

Expansion Slots
1 x PCI Express x16 slot
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface
1 x M.2 connector
4 x SATA 6Gb/s connectors

USB
Chipset:
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
– 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
– 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm

Product Last Updated: 23/11/2025
