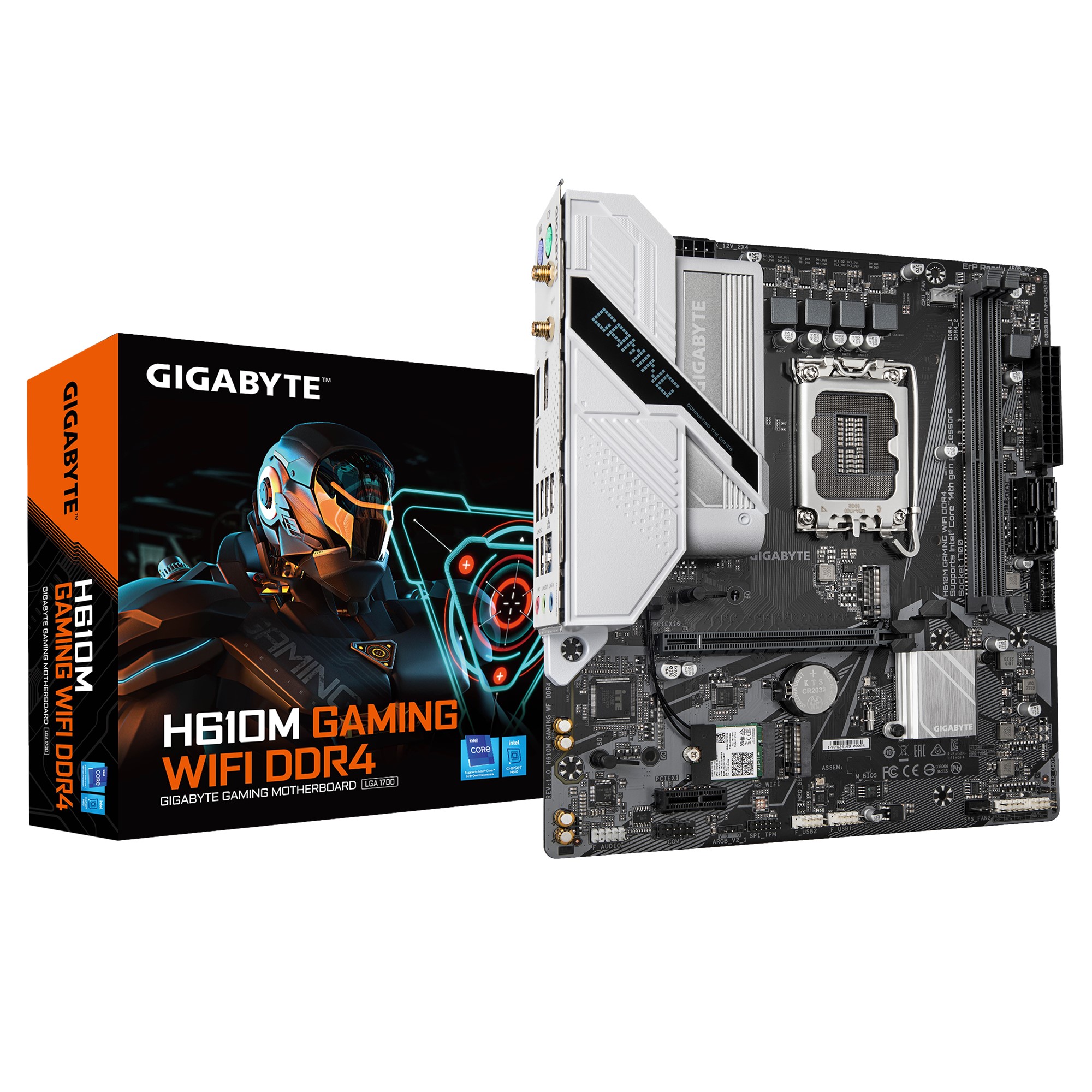

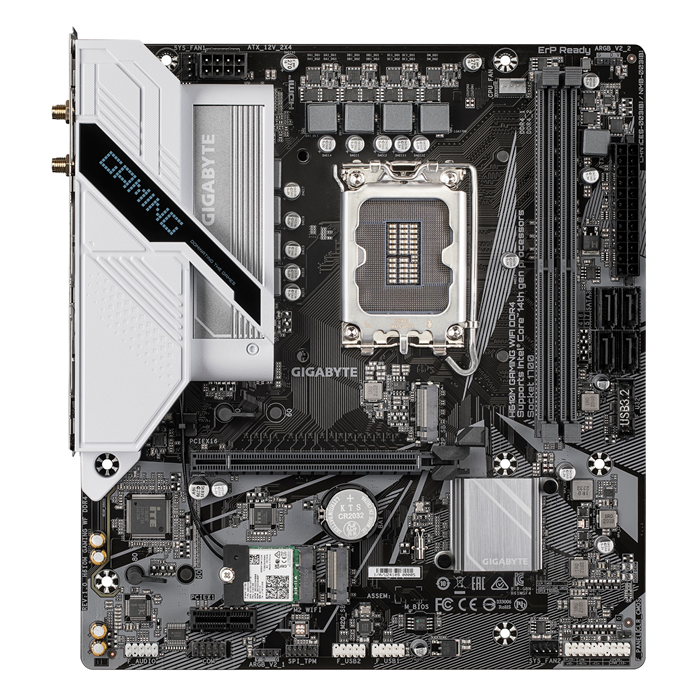

Gigabyte H610M GAMING WF DDR4, Intel® H610, 2 x DDR4 up to 64 GB, 1 x HDMI , 1 x PCI Express x16, 1 x PCI Express x1, 2 x M.2, 4 x SATA, 4 x USB 3.2 | H610M GAMING WF DDR4

Gigabyte H610M GAMING WF DDR4, Intel® H610, 2 x DDR4 up to 64 GB, 1 x HDMI , 1 x PCI Express x16, 1 x PCI Express x1, 2 x M.2, 4 x SATA, 4 x USB 3.2

Specification:

CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE’s website for the latest CPU support list.) L3 cache varies with CPU
Chipset Intel® H610 Express Chipset

Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to ‘Memory Support
List’ on GIGABYTE’s website for more information.)

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:

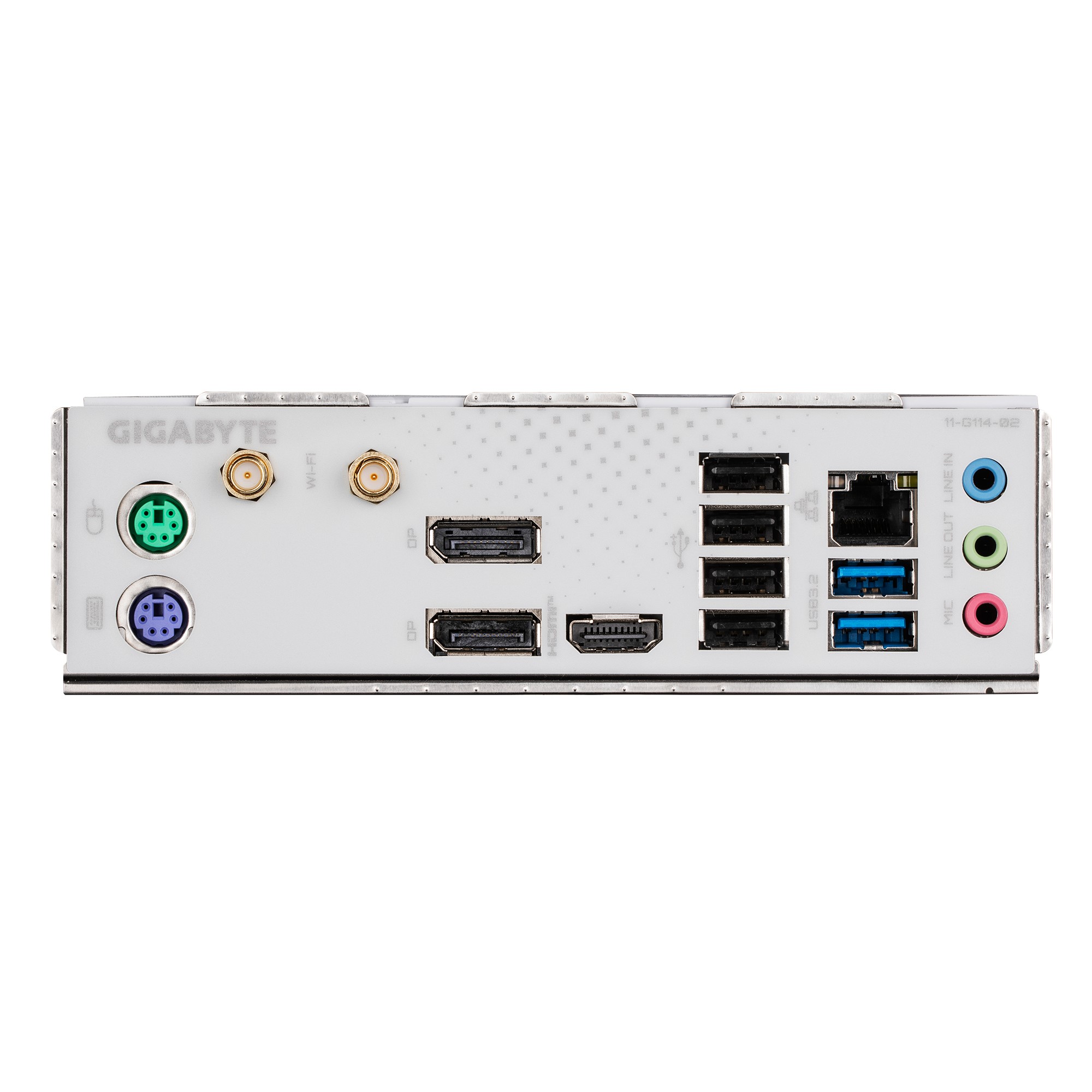

– 2 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time

Wireless Communication module
Intel® Wireless- AC 9560 (PCB rev. 1.0)
– WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
– BLUETOOTH 5.1
– Support 11ac 160MHz wireless standard
(Actual data rate may vary depending on environment and equi

Expansion Slots
CPU:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) (M2P_SB)
– 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x2 SSD support) (M2Q_SB)
– 4 x SATA 6Gb/s connectors

USB
Chipset:
– 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through
the internal USB header)
– 2 x USB 2.0/1.1 ports available through the internal USB header
Chipset+2 USB 2.0 Hubs:
– 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through
the internal USB header)
