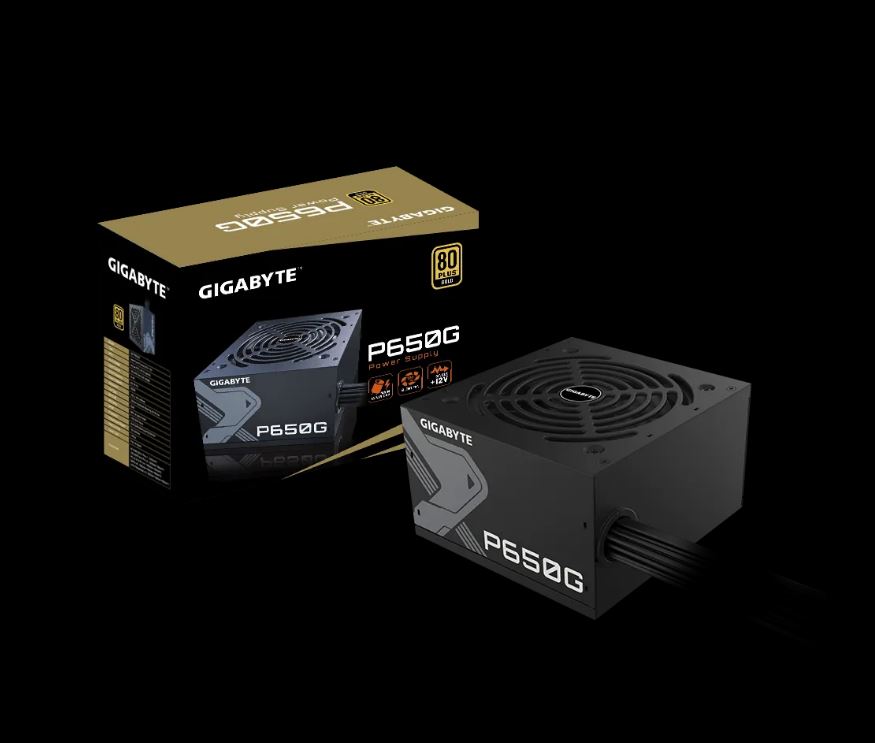

Gigabyte GP-P650G 650W ATX PSU Power Supply 80+ 120mm 12V >100K Hrs 60-50 Hz 650W 120mm Fan 80 PLUS Gold | GP-P650G

Gigabyte GP-P650G 650W ATX PSU Power Supply 80+ 120mm 12V >100K Hrs 60-50 Hz 650W 120mm Fan

Model
GP-P650G

Type
Intel Form Factor ATX 12V

PFC
Active PFC(>0.9 typical)

Input Voltage
100-240 Vac(full range)

Input Current
9-4A

Input Frequency
60-50 Hz

Output Capacity
650W

Dimension
150 x 140 x 86 mm

Fan Type
120mm Hydraulic Bearing (HYB) Fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
>100,000 hours

Protection
OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal
100-500ms

Hold Up Time
>16ms

Cable Type
Flat, All black

Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
PCI-e 6+2 Pin x 4 : 500mm+150mm*2

Product Last Updated: 23/11/2025
