Gigabyte GeForce RTX™ GV-N5060EAGLEMAX OC-8GD, GDDR7, 2550MHz, 3840CUDA, 28Gbps, PCI-E 5.0, PSU 550W, 8 Pin*1, DisplayPort 2.1b *3, HDMI 2.1b *1 | GV-N5060EAGLEMAX OC-8GD

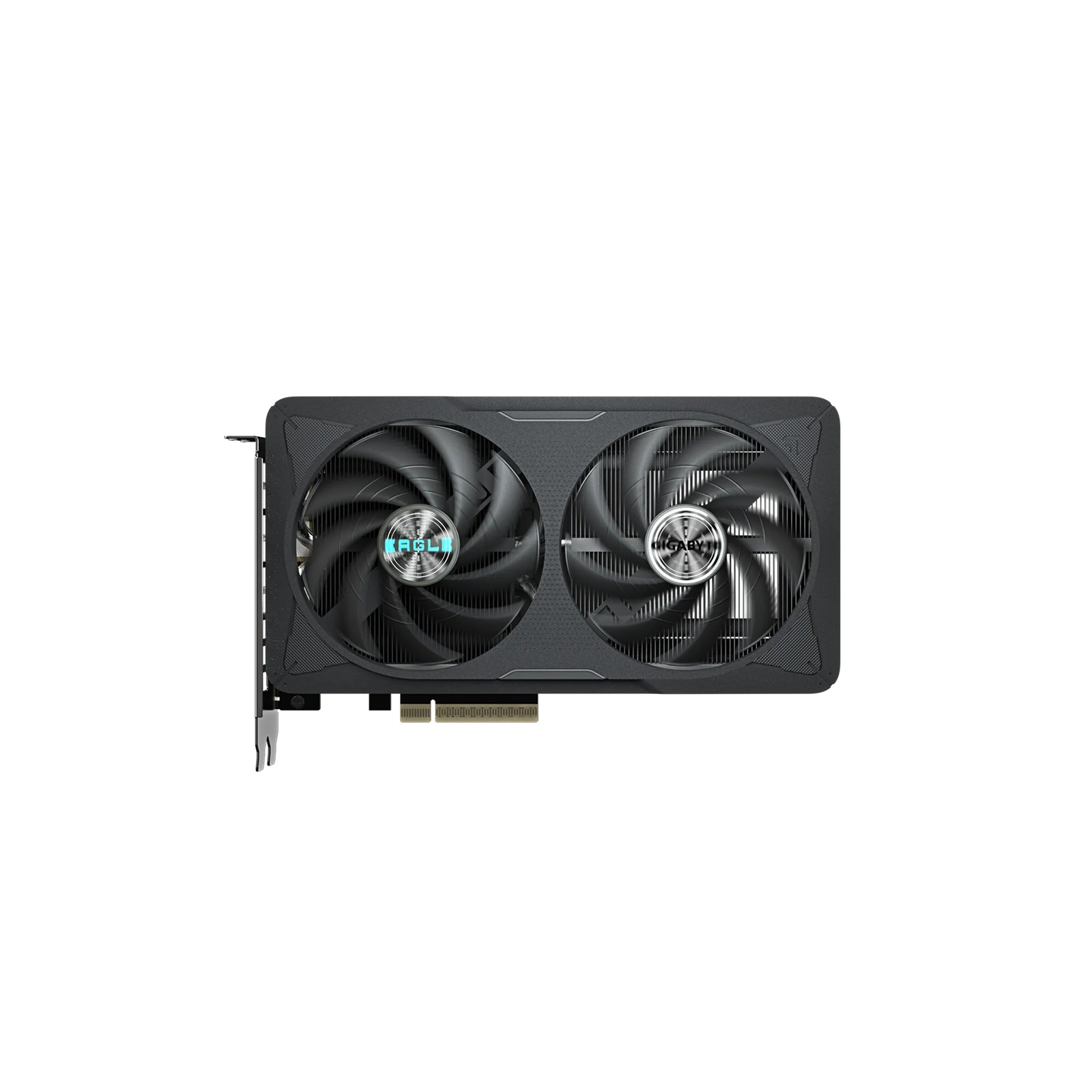

Gigabyte GeForce RTX™ GV-N5060EAGLEMAX OC-8GD, GDDR7, 2550MHz, 3840CUDA, 28Gbps, PCI-E 5.0, PSU 550W, 8 Pin*1, DisplayPort 2.1b *3, HDMI 2.1b *1

SPECIFICATION

Graphics Processing
GeForce RTX™ 5060

Core Clock
2550 MHz (Reference card : 2497MHz)

CUDA® Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680×4320

Multi-view
4

Card size
L=208 W=120 H=40

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
550W

Power Connectors
8 Pin*1

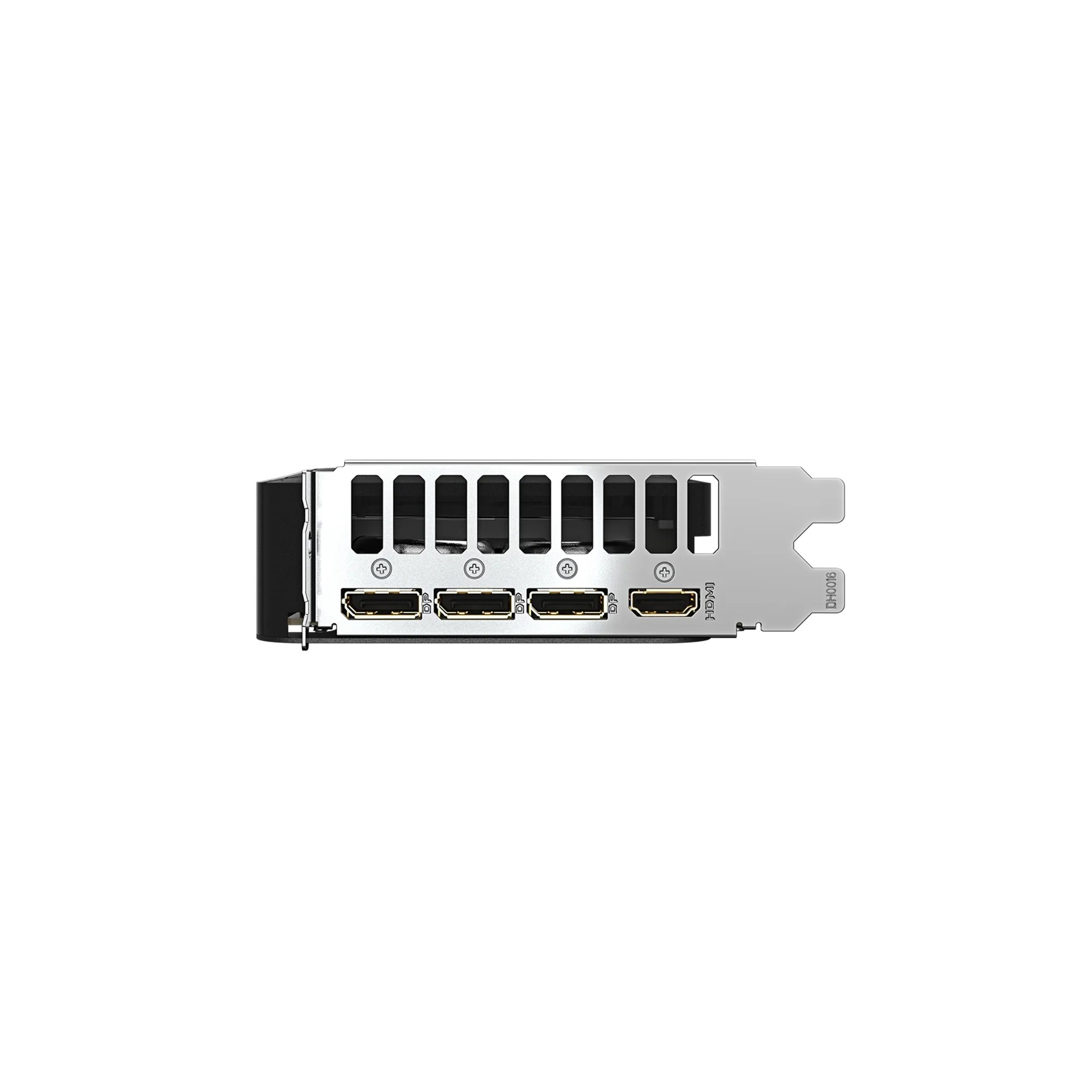

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

FEATURES
•Powered by the NVIDIA Blackwell architecture and DLSS 4
•Powered by GeForce RTX™ 5060
•Integrated with 8GB GDDR7 128bit memory interface
•WINDFORCE cooling system
•Hawk fan
•Server-grade Thermal conductive gel
•Reinforced structure

Product Description Last Updated: 23/09/2025
