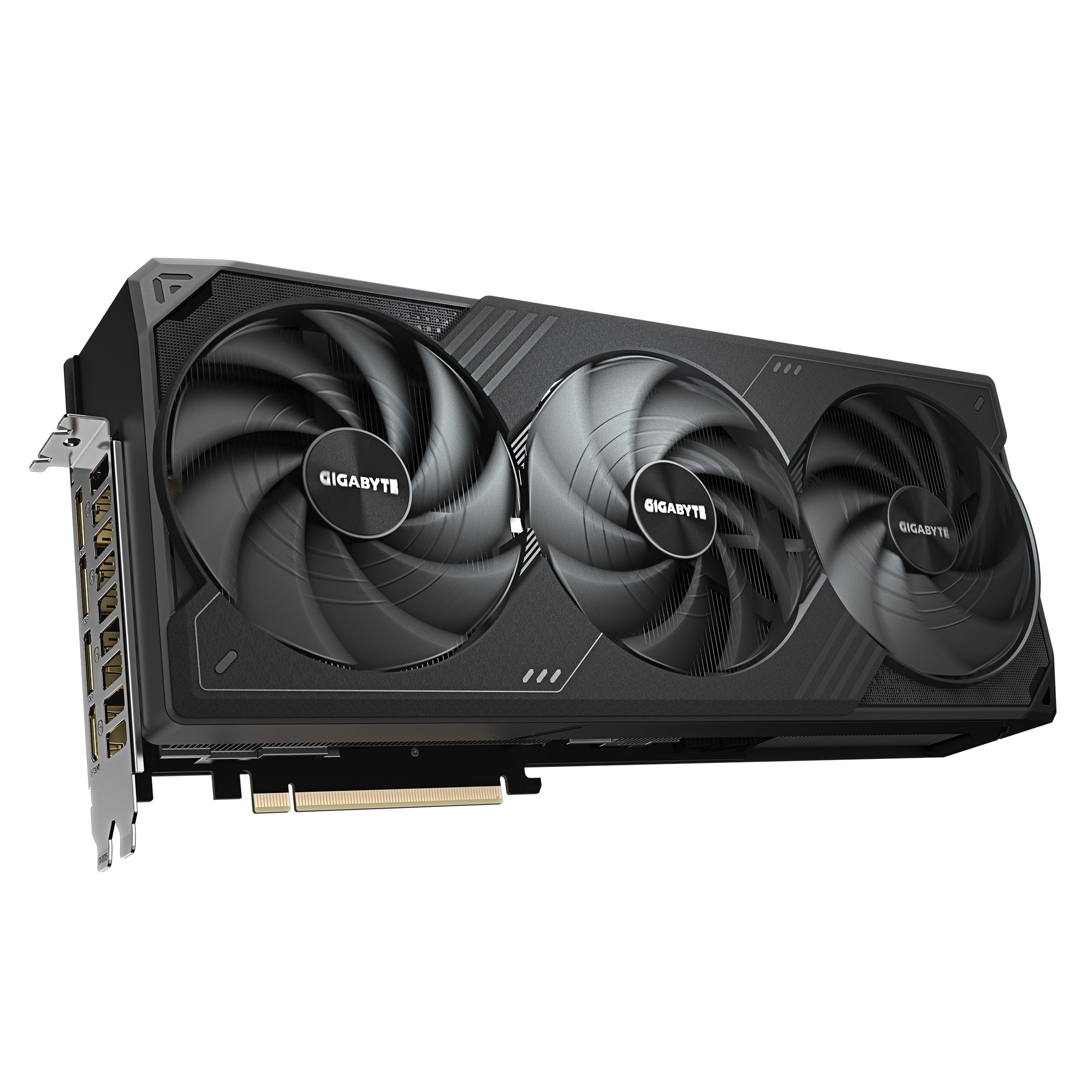

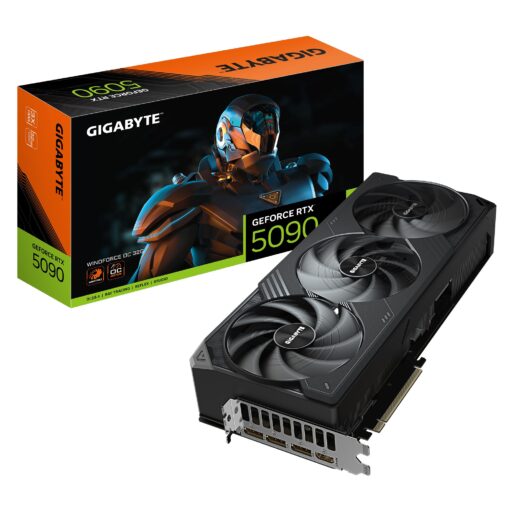

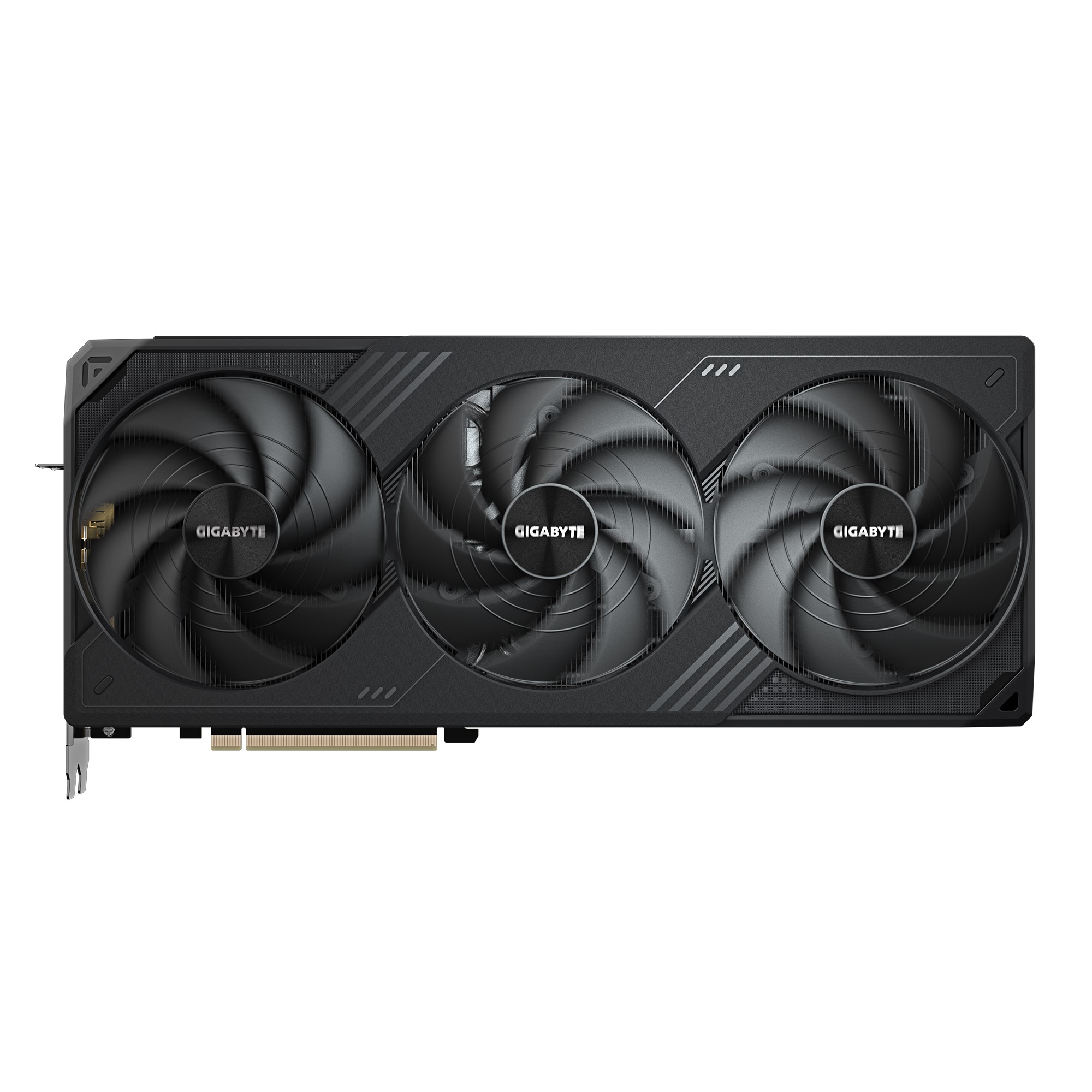

Gigabyte GeForce RTX™ 5090 WINDFORCE OC 32G, 2467 MHz, CUDA 21760, 28 Gbps, GDDR7, 512 bit, PCI-E 5.0, PSU 1000W, DisplayPort 2.1b *3 HDMI 2.1b *1 | GV-N5090WF3OC-32GD

Gigabyte GeForce RTX™ 5090 WINDFORCE OC 32G, 2467 MHz, CUDA 21760, 28 Gbps, GDDR7, 512 bit, PCI-E 5.0, PSU 1000W, DisplayPort 2.1b *3 HDMI 2.1b *1

SPECIFICATION

Graphics Processing
GeForce RTX™ 5090

Core Clock
2467 MHz (Reference card : 2407MHz)

CUDA® Cores
21760

Memory Clock
28 Gbps

Memory Size
32 GB

Memory Type
GDDR7

Memory Bus
512 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680×4320

Multi-view
4

Card size
L=342 W=150 H=65 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
1000W

Power Connectors
16 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
1. Quick guide
2. 1x 12V-2×6 to 4x PCIe 8pin adapter
3. Versatile VGA holder
4. Versatile VGA holder manual

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5090
Integrated with 32GB GDDR7 512bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Dual BIOS (Performance / Silent)
Reinforced structure
Versatile VGA holder

NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

LARGE VAPOR CHAMBER COMPOSITE COPPER HEAT PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

EXCELLENCE IN ESSENTIAL

DUAL BIOS (Performance / Silent)
The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.

REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

VERSATILE VGA HOLDER
Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.

SUPERIOR CRAFTSMANSHIP

ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the convention
