Gigabyte GeForce RTX™ 5060 Ti WINDFORCE MAX OC 8G, 2587 MHz, CUDA 4608, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1 | GV-N506TWF2MAX OC-8GD

Gigabyte GeForce RTX™ 5060 Ti WINDFORCE OC 8G, 2587 MHz, CUDA 4608, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1

SPECIFICATION

Graphics Processing
GeForce RTX™ 5060 Ti

Core Clock
2587 MHz (Reference card :2572 MHz)

CUDA® Cores
4608

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680×4320

Multi-view
4

Card size
L=208 W=120 H=40 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
650W

Power Connectors
8 Pin*1

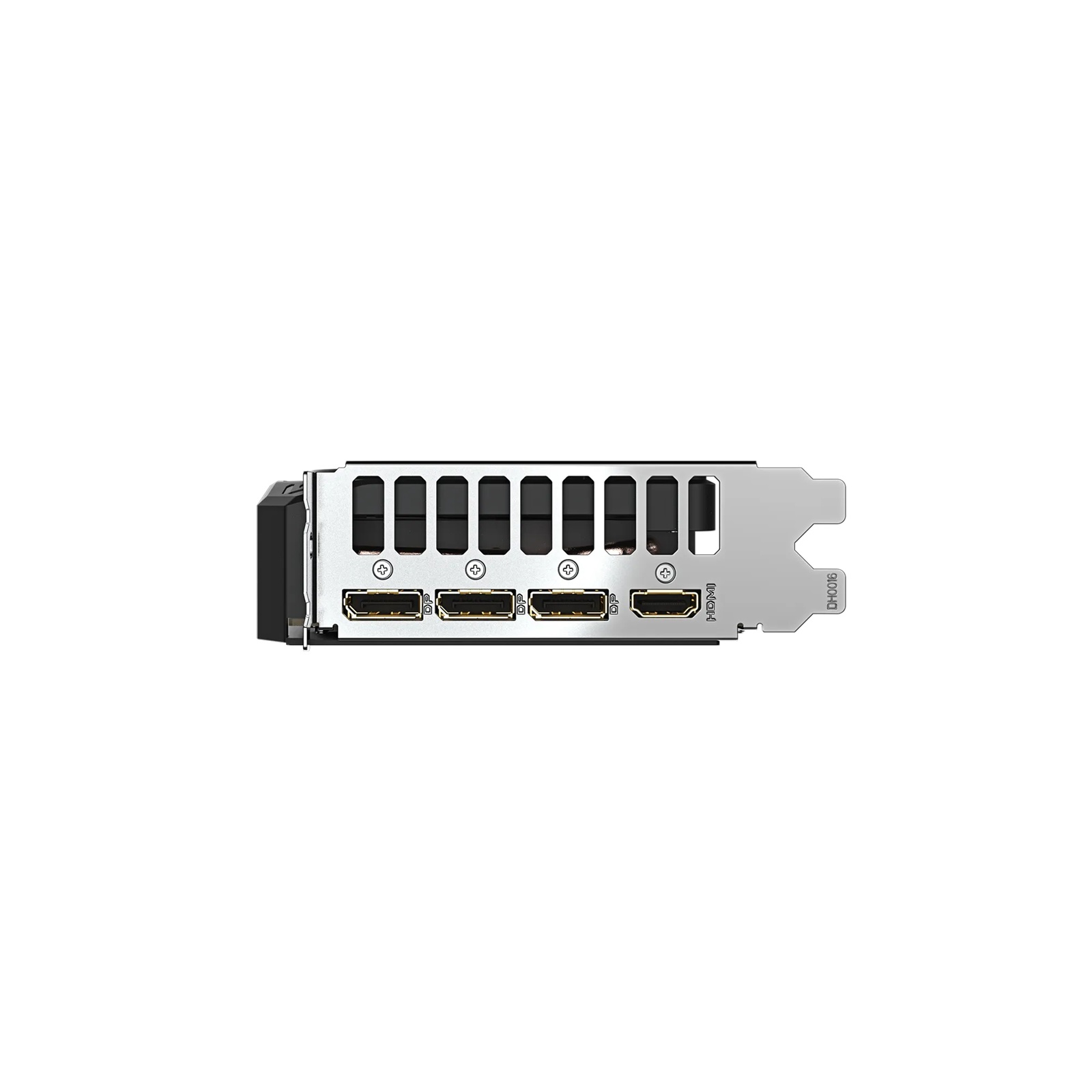

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5060 Ti
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure

Product Last Updated: 23/11/2025
