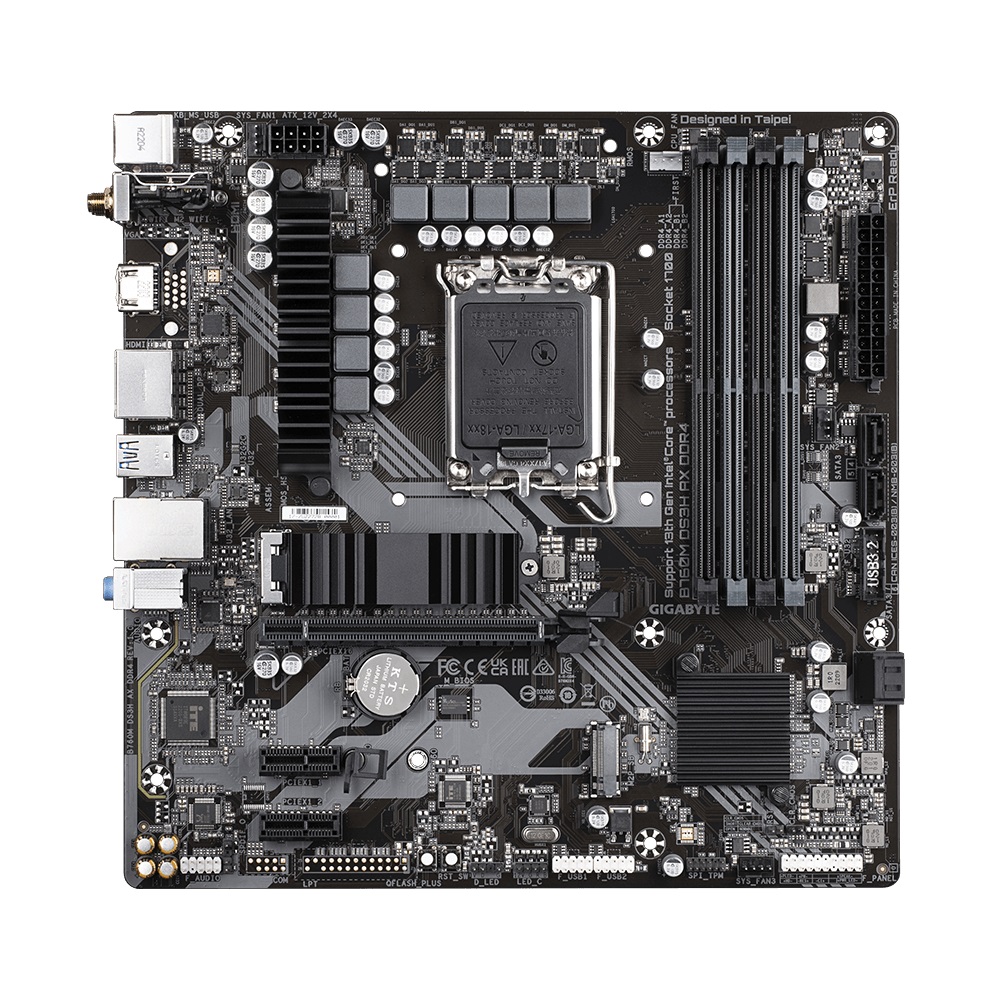

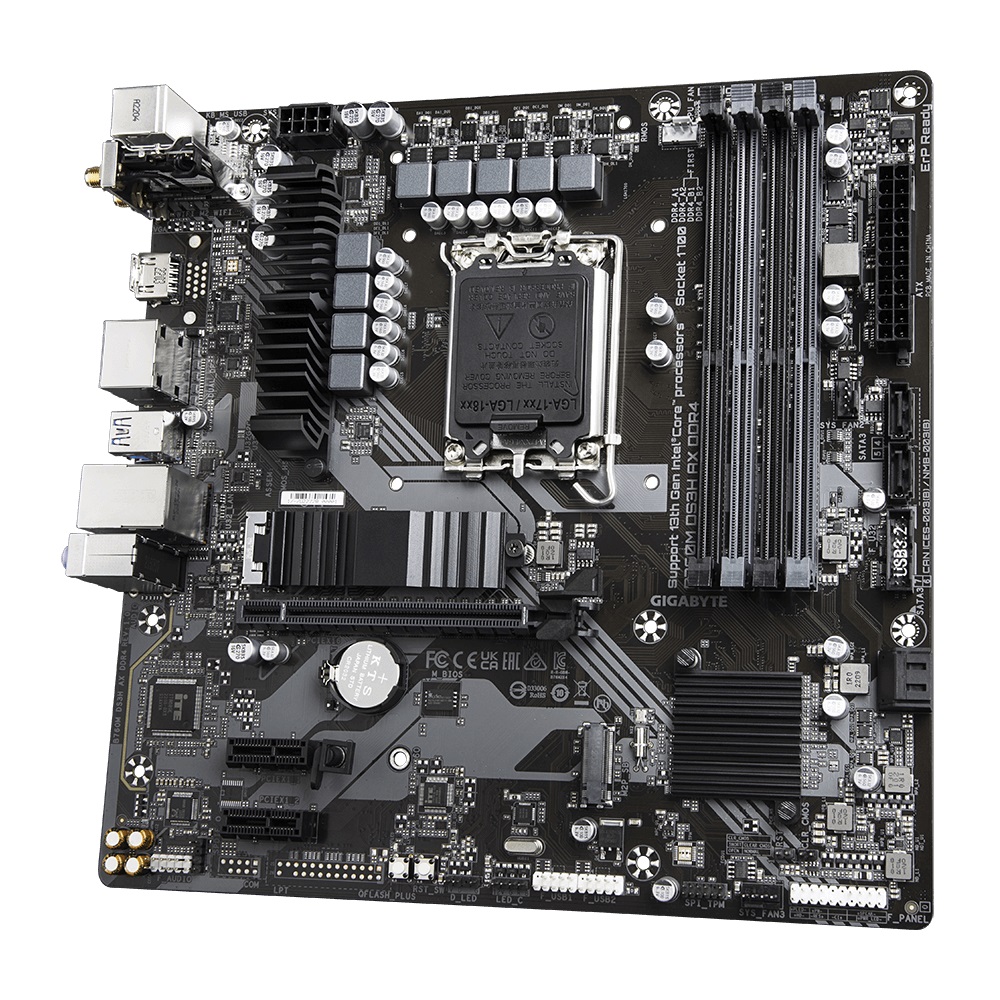

Gigabyte B760M DS3H AX DDR4 Intel LGA 1700 m-ATX Motherboard, 4x DDR4 ~128GB, 1x PCI-E x16, 1x PCI-E x1, 2x M.2, 4x SATA, 3x USB 3.2, 2x USB 2.0, 1x T | GA-B760M DS3H AX DDR4

Gigabyte B760M DS3H AX DDR4 Intel LGA 1700 m-ATX Motherboard, 4x DDR4 ~128GB, 1x PCI-E x16, 1x PCI-E x1, 2x M.2, 4x SATA, 3x USB 3.2, 2x USB 2.0, 1x Type-C

Specification:
CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU

Chipset
Intel® B760 Express Chipset

Memory

Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture

Onboard Graphics
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version.

Expansion Slots
1 x PCI Express x16 slot
2 x PCI Express x1 slots

Storage Interface
2 x M.2 connector
4 x SATA 6Gb/s connectors

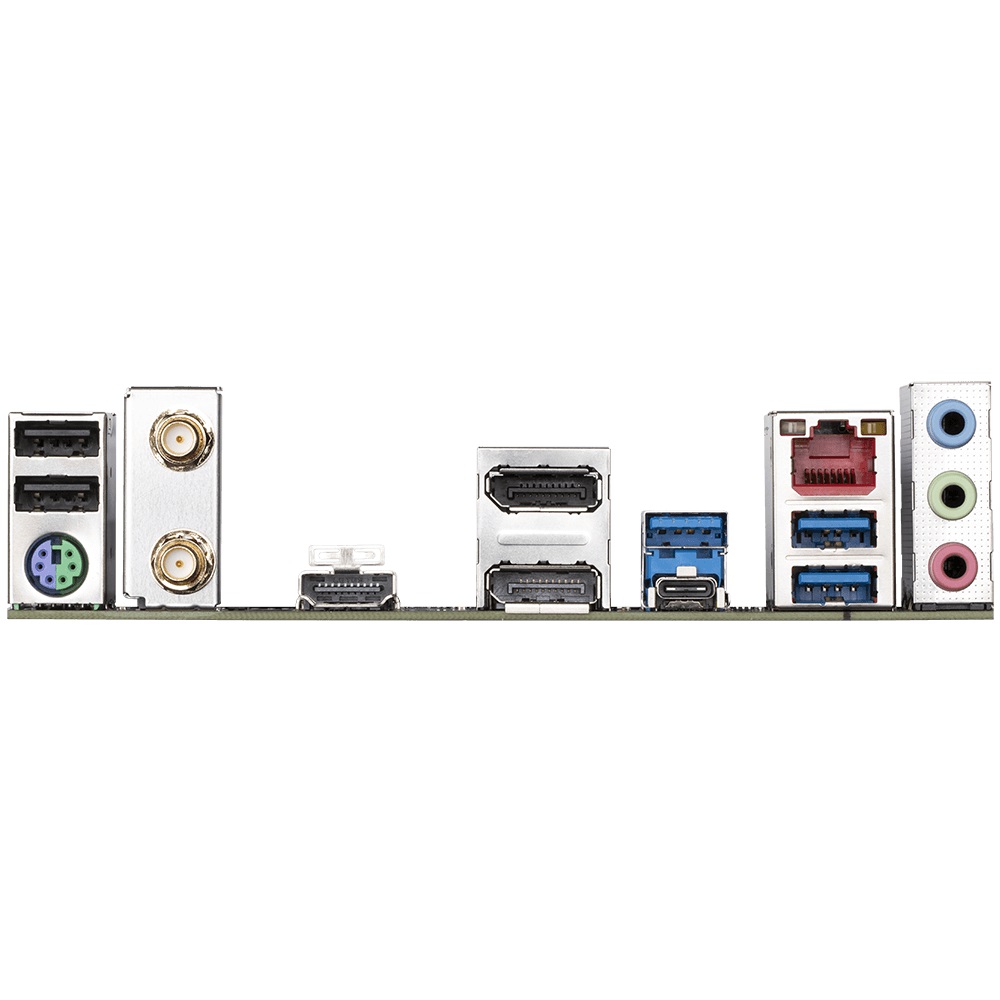

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x HDMI port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Product Last Updated: 11/12/2025
