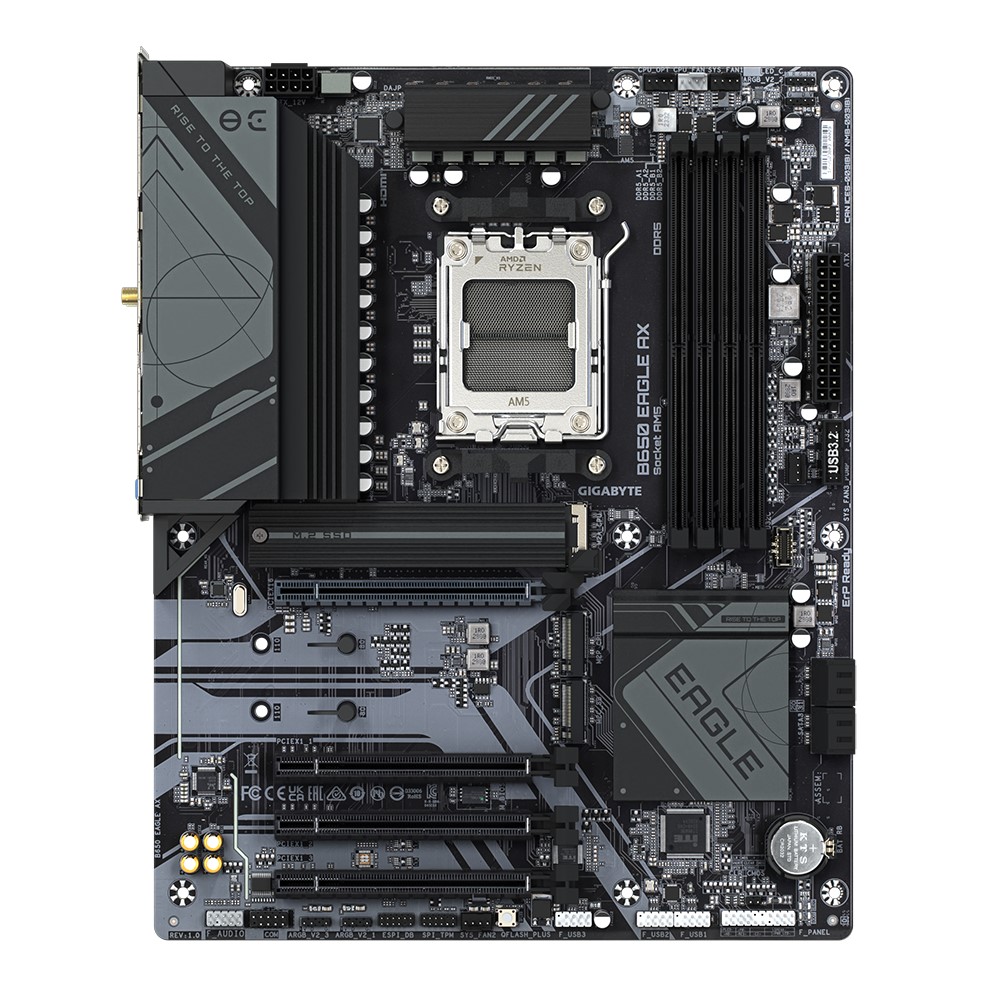

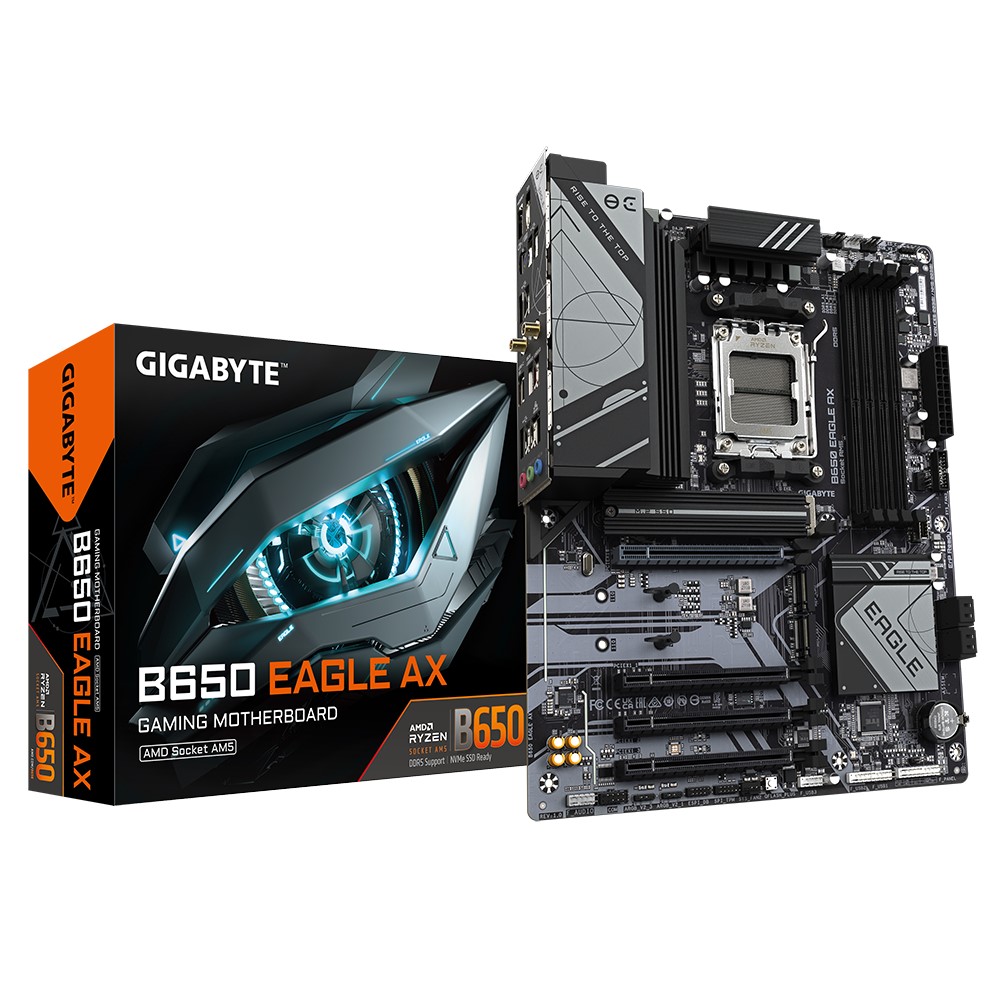

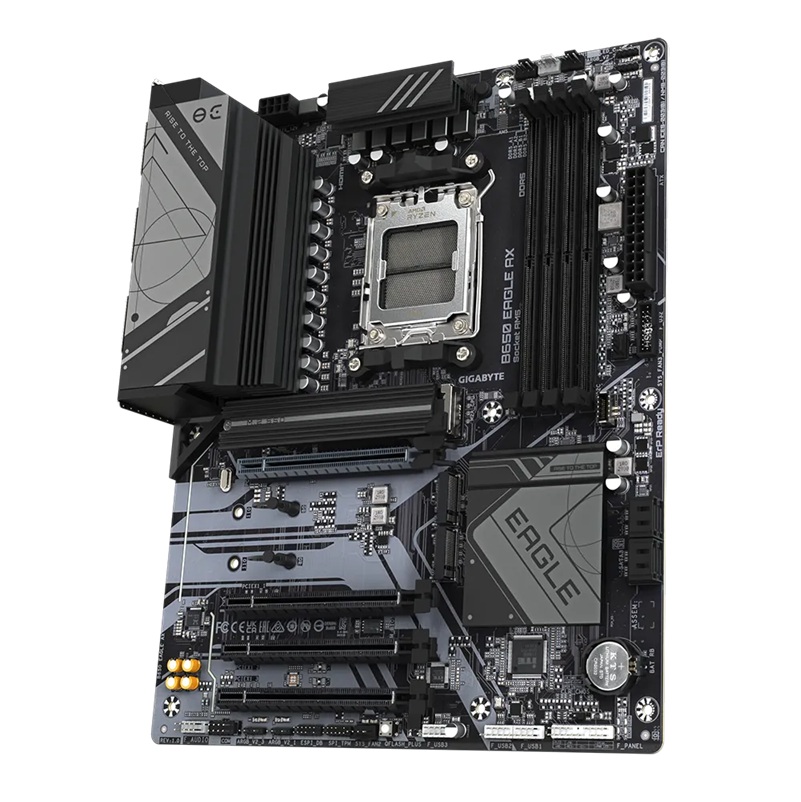

Gigabyte B650 EAGLE AX, AM5, 4 x DDR5 up to 256 GB, 1 x HDMI port, 4x PCI Express x16, 3x M.2. 4x USB 3.2 | B650 EAGLE AX

Gigabyte B650 EAGLE AX, AM5, 4 x DDR5 up to 256 GB, 1 x HDMI port, 4x PCI Express x16, 3x M.2. 4x USB 3.2

Special order for Gigabyte SI customers only

CPU
AMD Socket AM5, support for:
DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
(Go to GIGABYTE’s website for the latest CPU support list.)

Chipset
AMD B650

Memory
Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to ‘Memory Support List’ on GIGABYTE’s website for more information.)

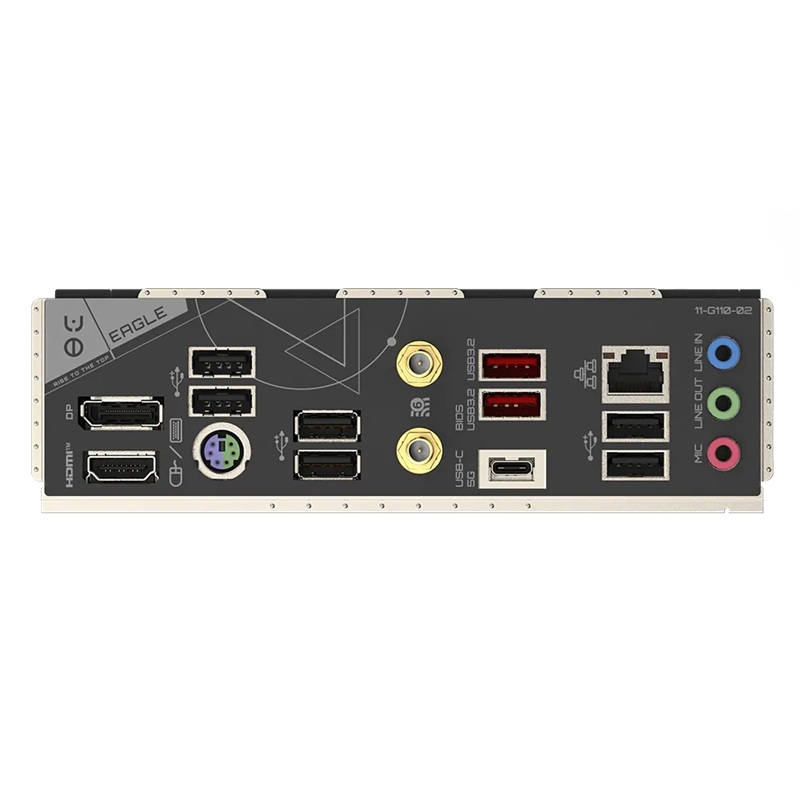

Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:
– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 1.4 version.
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)

Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
– AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1
1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1

Product Last Updated: 28/04/2025
