Gigabyte AORUS Radeon™ RX 9070 XT ELITE 16G, 20 Gbps, GDDR6, 256 bit, PCI-E 5.0, DirectX 12 API, PSU 850W, 8 pin*3, DisplayPort 2.1a *2 HDMI 2.1b *2 | GV-R9070XTAORUS E-16GD

Gigabyte AORUS Radeon™ RX 9070 XT ELITE 16G, 20 Gbps, GDDR6, 256 bit, PCI-E 5.0, DirectX 12 API, PSU 850W, 8 pin*3, DisplayPort 2.1a *2 HDMI 2.1b *2

SPECIFICATION

Graphics Processing
Radeon™ RX 9070 XT

Core Clock
Boost Clock* : up to 3100 MHz (Reference card: 2970 MHz)
Game Clock* : up to 2570 MHz (Reference card: 2400 MHz)

Stream Processors
4096

Memory Clock
20 Gbps

Memory Size
16GB

Memory Type
GDDR6

Memory Bus
256 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680×4320

Multi-view
4

Card size
L=339 W=136 H=59 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
850W

Power Connectors
8 pin*3

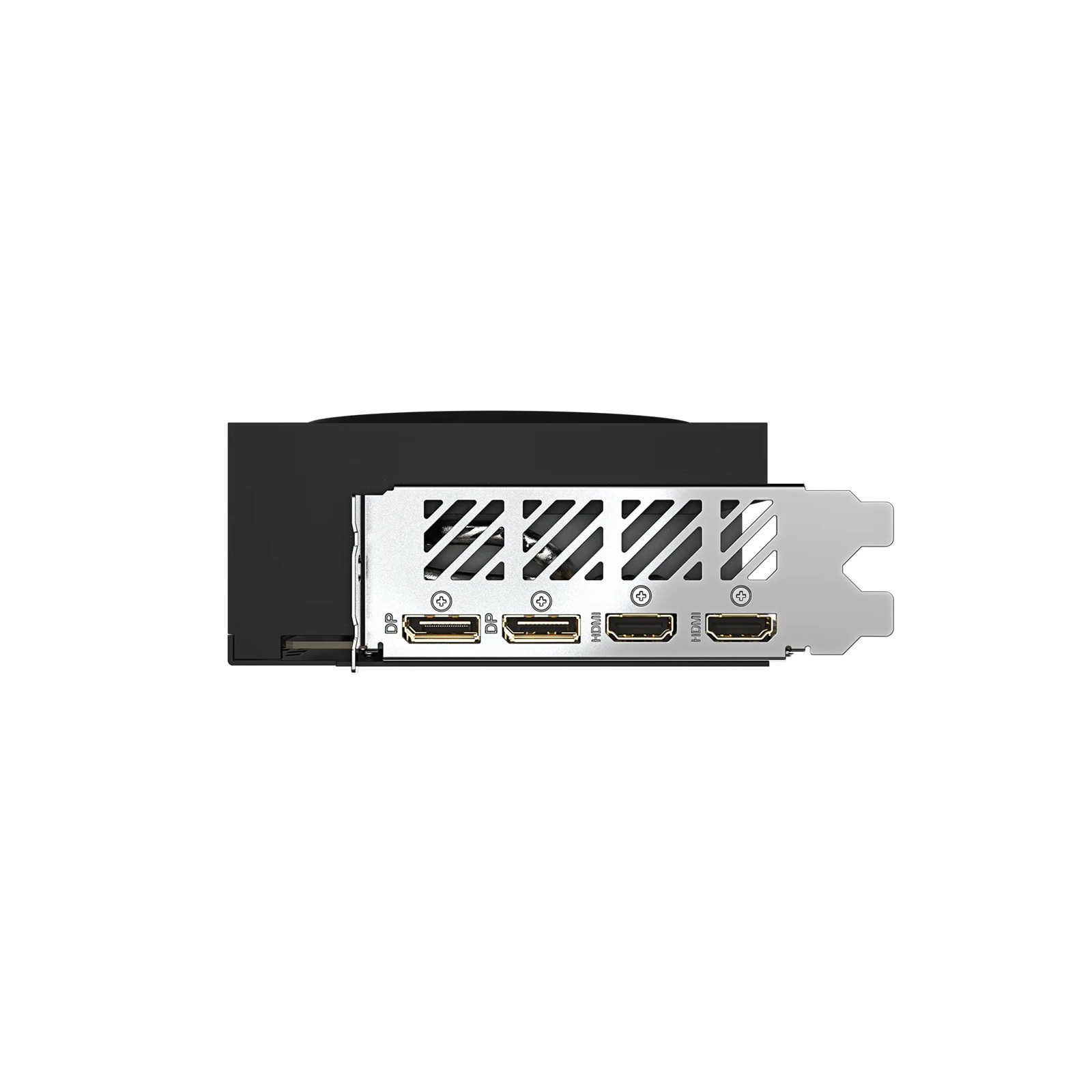

Output
DisplayPort 2.1a *2
HDMI 2.1b *2

Accessories
1. Quick guide
2. Warranty registration
3. AORUS metal sticker
4. Versatile VGA holder
5. Versatile VGA holder manual

Note
* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147

FEATURES
FEATURES
Powered by Radeon™ RX 9070 XT
Integrated with 16GB GDDR6 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB Halo
Dual BIOS (Performance / Silent)
Reinforced structure
Versatile VGA holder
4 years warranty (Online registration required)

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

UNCOMPROMISING CRAFTSMANSHIP PERFORMANCE
Shuttling through the AORUS universe, the iconic light slices through the visual field, while extreme speed leaves afterimages that culminate in a truly one-of-a-kind symbol.

SPEED WITH AFTERIMAGE EFFECT
The design focuses on extensive afterimage effects to convey an intense sense of extreme speed on the front cover, with the visuals converging into the fans. Paired with a matte surface texture, the overall appearance is imbued with a mysterious yet dynamic aura.

OVERLAY DESIGN
The AORUS logo on the side utilizes an overlay design to create a gradient effect, enriching the visual layers while also presenting a dynamic and vibrant aesthetic.

RGB HALO
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
