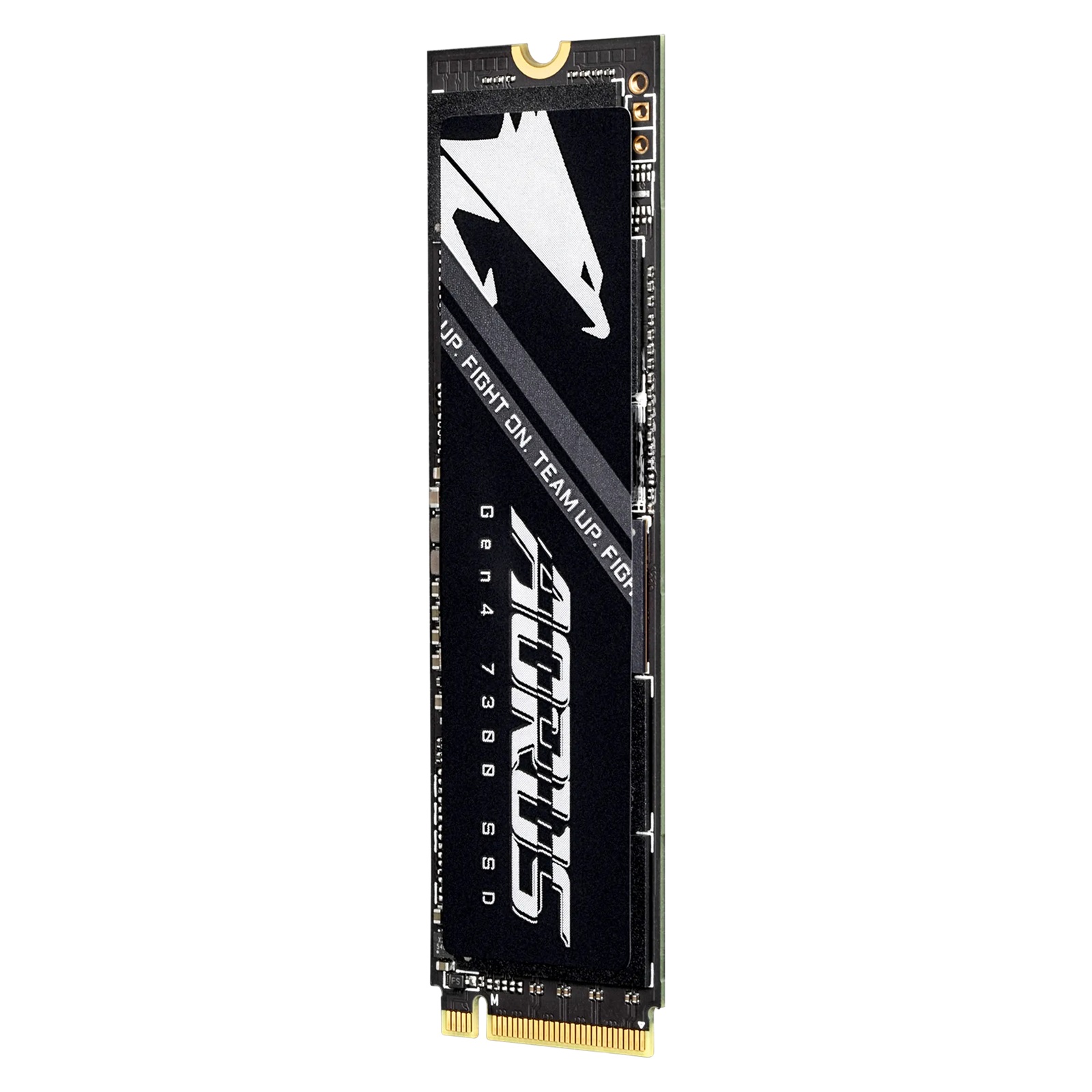

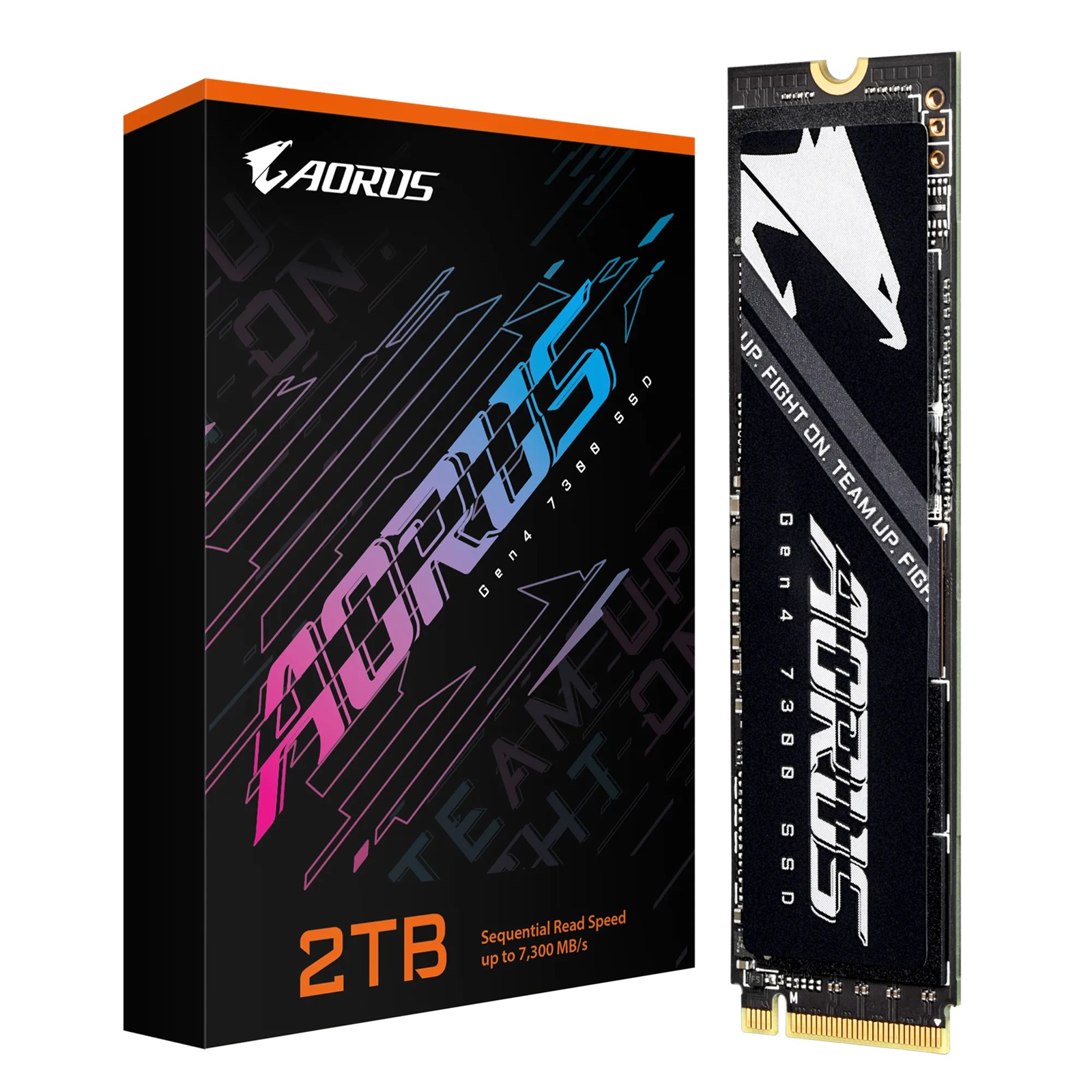

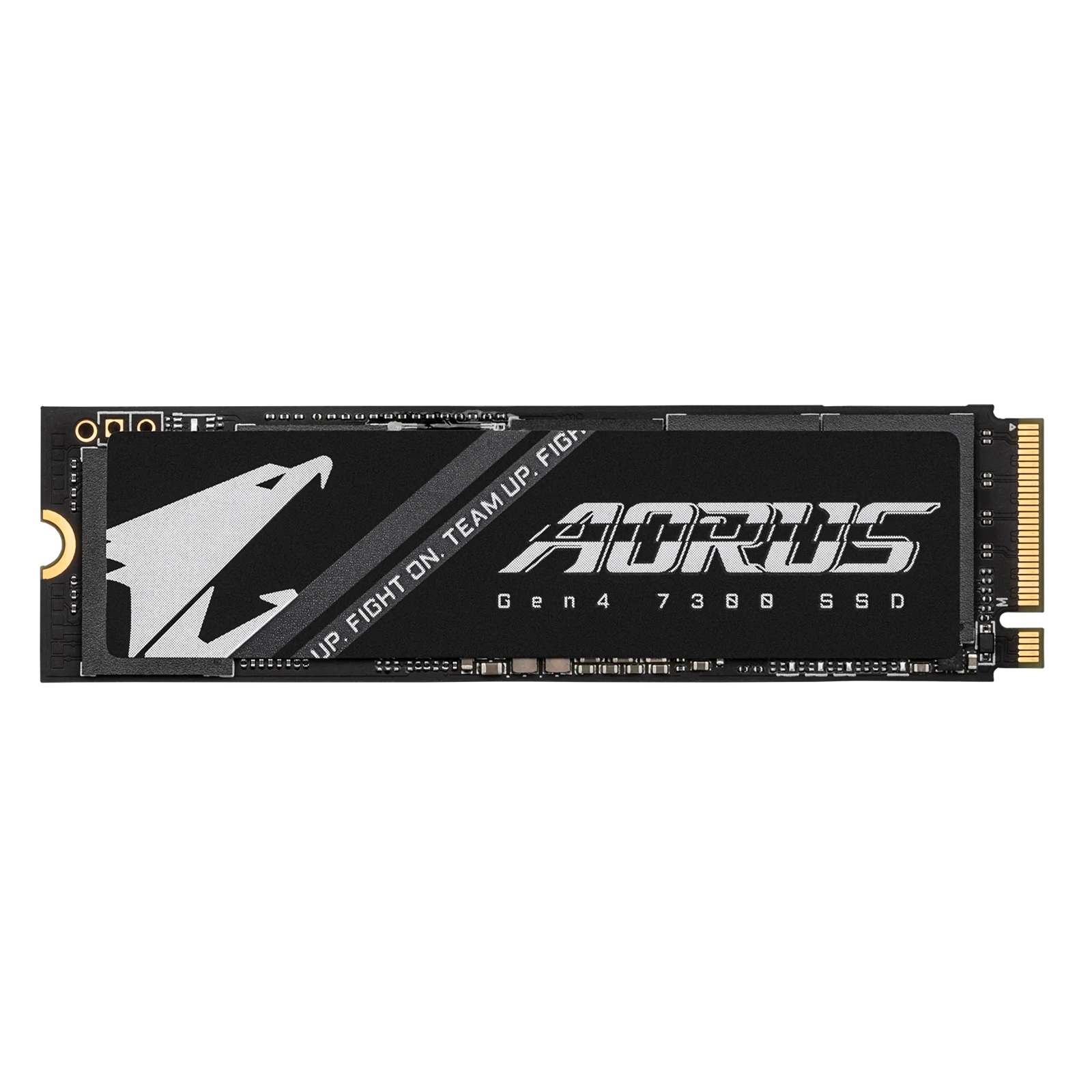

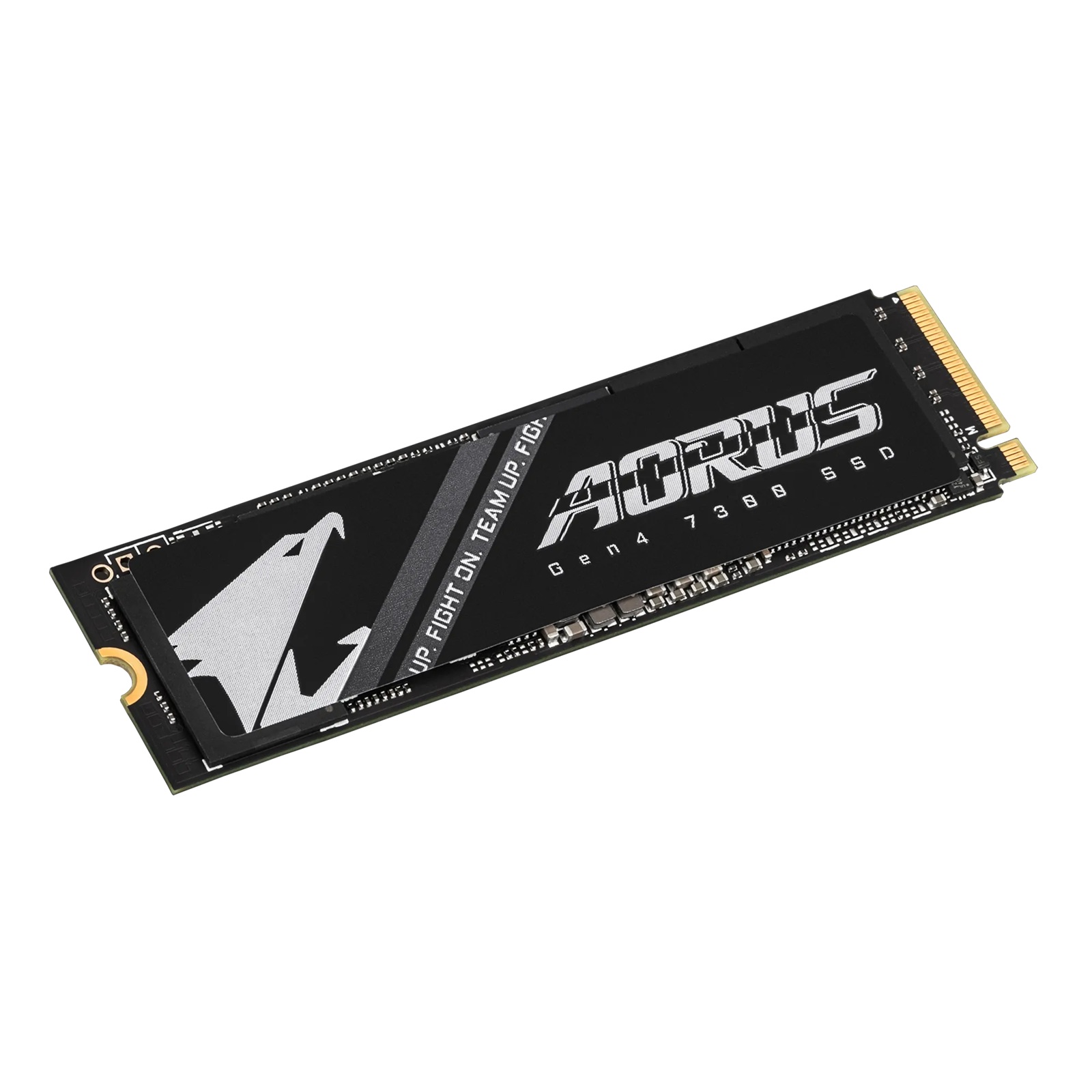

Gigabyte AORUS Gen4 7300 SSD 2TB PCIe4x4 NVMe1.4 M.2 2280 3D TLC DDR4 2GB 7300/6850MB/s 80×22×3.5mm MTBF1.6M 8.1W/7.4W 5yr/1400TBW | SSD AG4732TB N M2 2TB

Gigabyte AORUS Gen4 7300 SSD 2TB PCIe4x4 NVMe1.4 M.2 2280 3D TLC DDR4 2GB 7300/6850MB/s 80×22×3.5mm MTBF1.6M 8.1W/7.4W 5yr/1400TBW

Interface PCI-Express 4.0 x4, NVMe 1.4
Form Factor M.2 2280
Total Capacity 2000GB
NAND 3D TLC NAND Flash
External DDR Cache DDR4 2GB
Sequential Read speed Up to 7300 MB/s
Sequential Write speed Up to 6850 MB/s
Dimension 80 x 22 x 3.5 mm (Double Side)
Mean time between failure (MTBF) 1.6 million hours

Max. Operating Power
Read: 8.1W
Write: 7.4W

Power Consumption (Idle, PS3) 30mW
Power Consumption(PS4, L1.2) 3mW
Temperature (Operating) 0°C to 70°C
Temperature (Storage) -40°C to 85°C

Warranty
1. Limited 5-years or 1400TBW.
2. Limited warranty based on 5 years or 1400TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the ‘Percentage Used’ (SMART ID: 05) in SMART page of ‘GIGABYTE SSD toolbox’ reaches 100 means out of warranty. (A new unused product will show the number of 0)

Note
• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD’s firmware version and system hardware configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.

Test Configuration
OS: Windows 11 22H2 (OS build 22621.819)
CPU: AMD Ryzen 9 7950X 16-Core Processor 4.5G
Memory: DDR5 5600 16GBx2
Chipset: AM5 X670 (X670E AORUS MASTER)

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
