Fanvil Y501 2 SIP Lines Healthcare Intercom, HD Audio, Waterproof Dustproof, PoE Enabled, Wall Mountable, 10/100Mbps, 3 Button. Auto answe, No Wi-Fi | Y501(w)

Y501 Series SIP Healthcare Intercom
Fanvil Y501 series SIP healthcare intercoms are specially designed for home-based care, nursing houses and other indoor applications, realising emergency communication, security protection, broadcasting, etc. They feature HD audio, 2 SIP accounts, detachable DSS keys, IP54 waterproof and dust-proof, and built-in 2.4G 5G Wi-Fi(Y501W/Y501W-E). Y501 series provides different installation modes of standard 86 box embedded and wall mountable, bringing you a timely healthcare communication experience.

IP SIP Healthcare Intercom
– 2 SIP Accounts
– 3 antibacterial material detachable function buttons
– Support specific 433MHz wireless button
– IP54 waterproof and dustproof
– Built-in 1 short circuit input/output interface
– PoE
Generic
⚫ 2 SIP Lines
⚫ Auto answer
⚫ HD Voice
⚫ PoE Enabled
⚫ Built-in 2.4GHz 5G Wi-Fi(Y501W/Y501W-E)
⚫ Intercom function
⚫ External Power Supply (Optional)
Highlights
□√ Support specific 433MHz wireless button
□√ Features 2 SIP accounts and 3 antibacterial material detachable function
buttons
□√ Support HD audio with codec G.722 and Opus
□√ Built-in 2.4G5G Wi-Fi(Y501W/Y501W-E)
□√ Built-in 1 short circuit input/output interface
□√ IP54 waterproof and dustproof
□√ Support PoE power supply
□√ Support wall mountable installation (Y501/Y501W) and 86 box embedded
installation(Y501-E/Y501W-E)

Physical Specifications

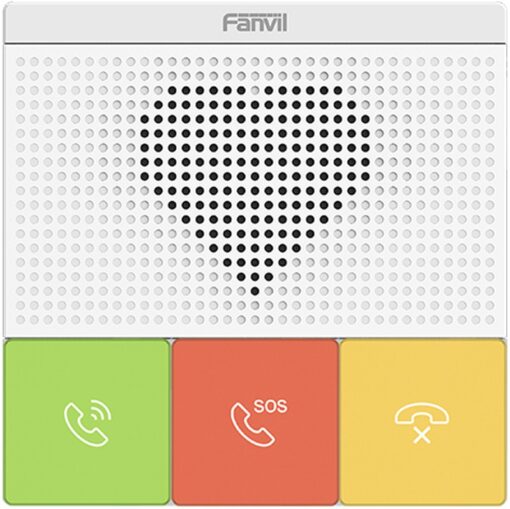

⚫ Y501 Series: 3 DSS buttons (Speed dial, Emergency, Cancel)
⚫ Up to 10 wireless buttons supported
⚫ Status indicator light: Red(registration failed、network
anomaly)、Green(registration successful、call)
⚫ 1 RJ45 por
