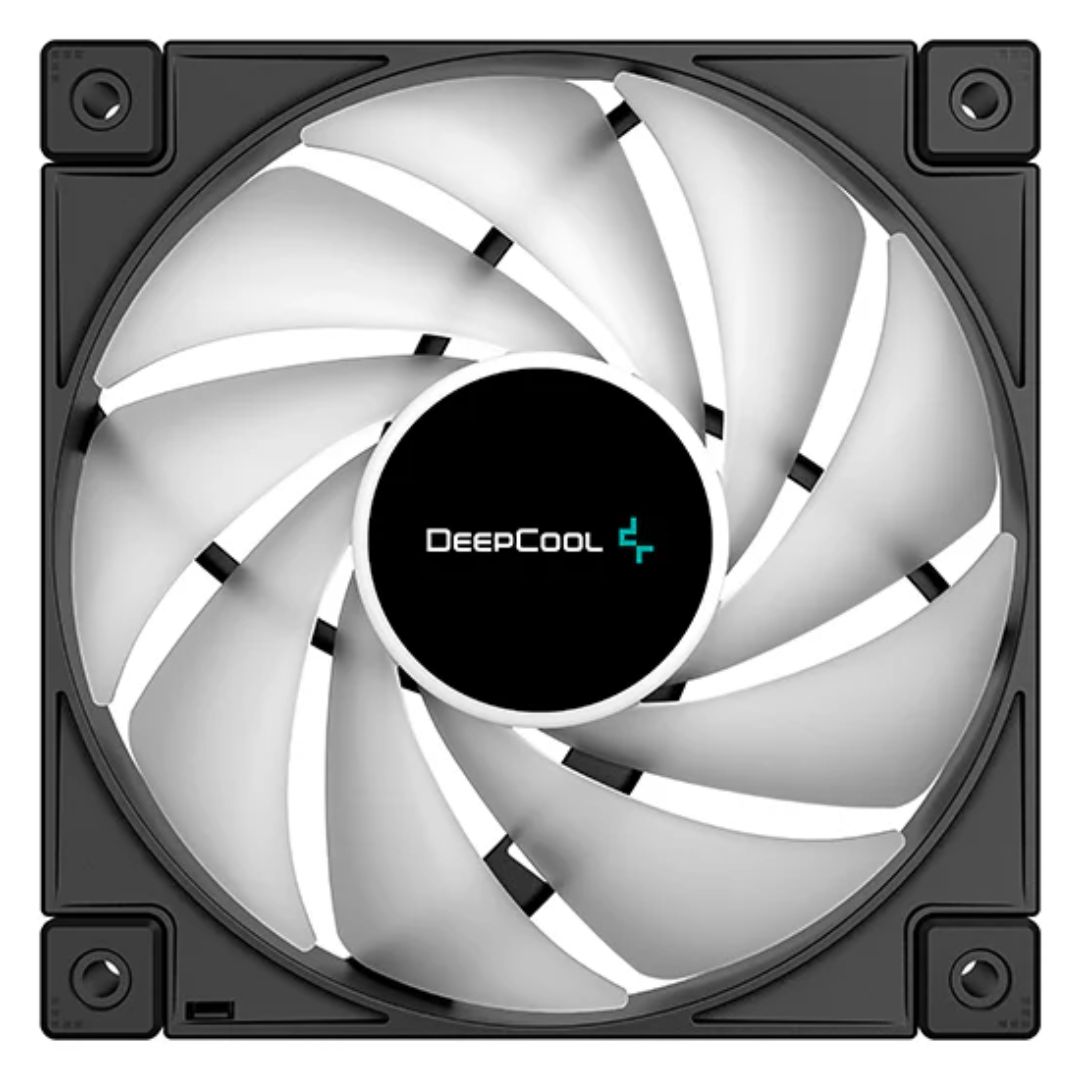

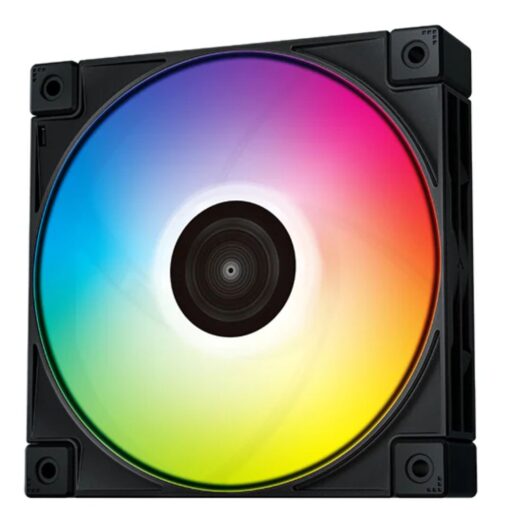

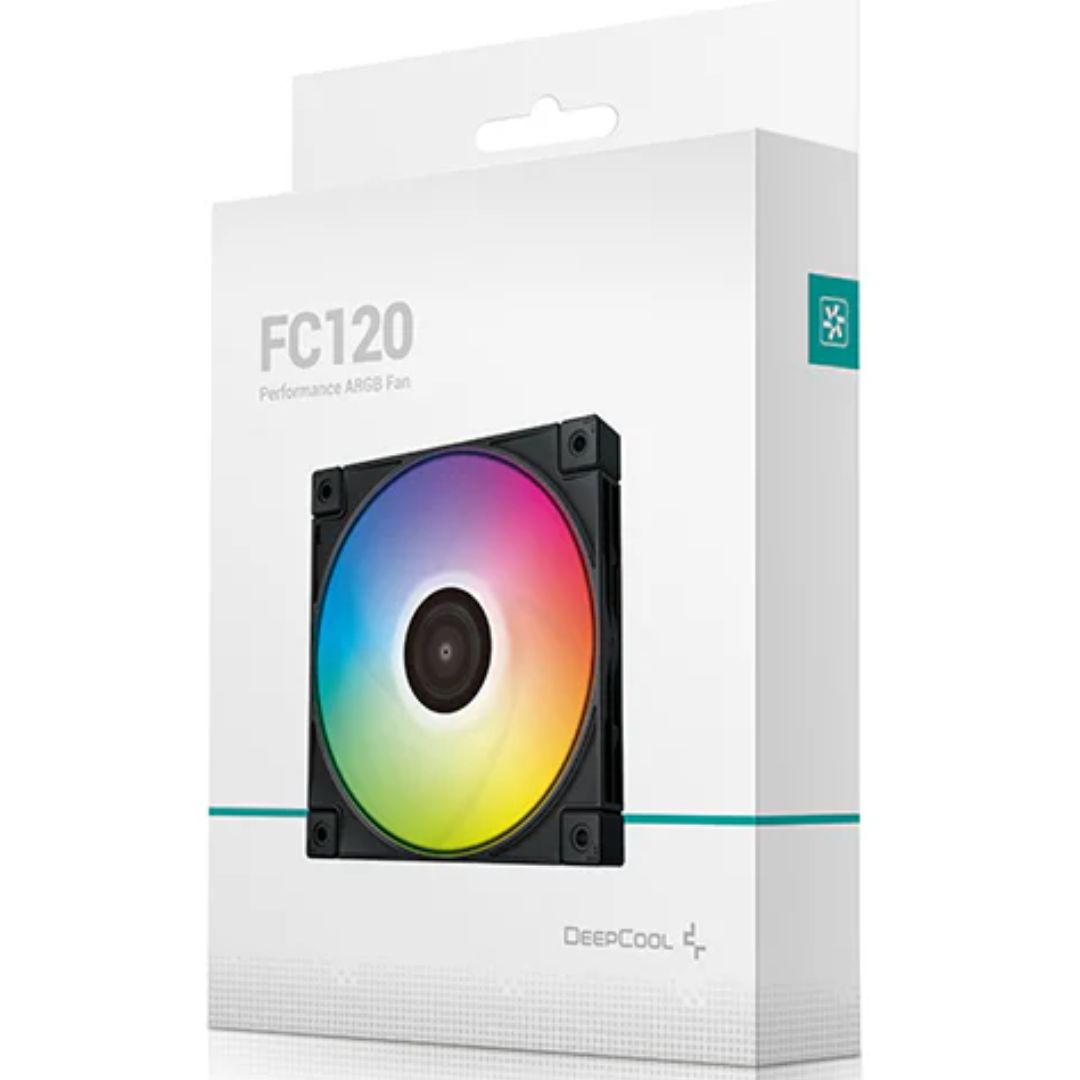

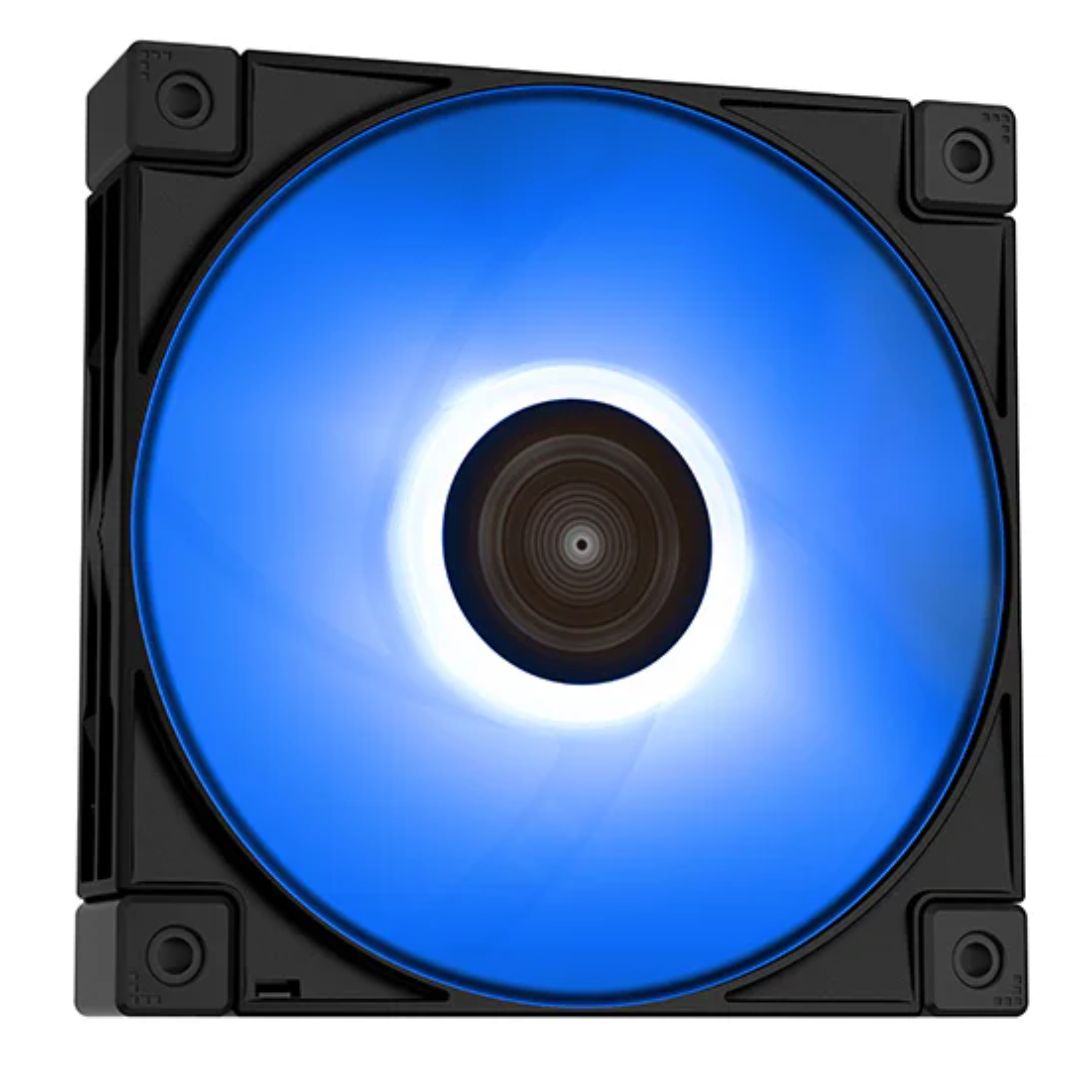

DeepCool FC120 Cooling Fan, 120mm Performance RGB PWM, Cable Management With Dasiy Chainable Cable, RGB Power Interconnect, Reduce Cable Clutter | R-FC120-BKAMN1-G-1

DeepCool FC120 performance RGB PWM fan simplifies cable management with a novel daisy-chainable cable that carries both RGB and power functions that interconnects between fans and reduces cable clutter.

RGB POWER INTERCONNECT Each FC120 fan features a single cable that transmits both power and RGB data signals that can be daisy-chained in a series of fans to reduce cable clutter. The fan interconnect system removes the need for a hub and makes it easy to synchronize control of PWM and RGB for up to 4 fans.

Technical Spec
Fan Dimensions 120×120×25 mm
Net Weight 164 g
Fan Speed 500~1800 RPM±10%
Fan Airflow 61.91 CFM
Fan Air Pressure 1.83 mmAq
Fan Noise ≤28 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.13 A
Fan Power Consumption 1.56 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 1.05 W
EAN 6933412710554
P/N R-FC120-BAMN1-G-1

Product Last Updated: 11/12/2025
