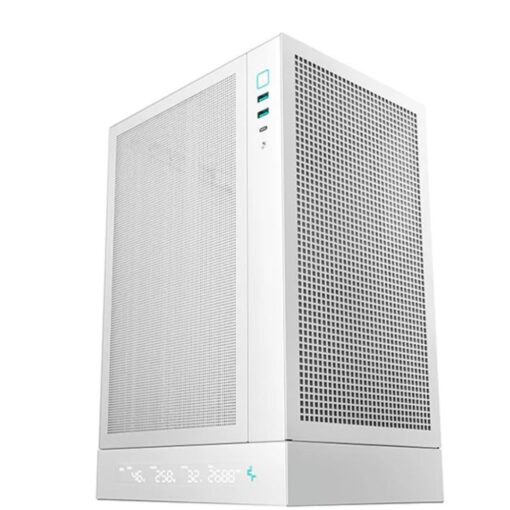

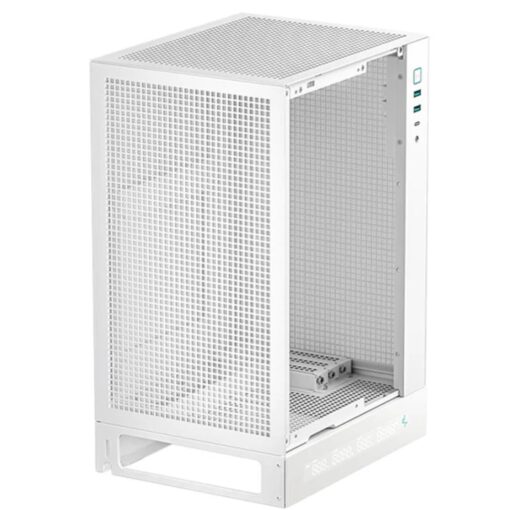

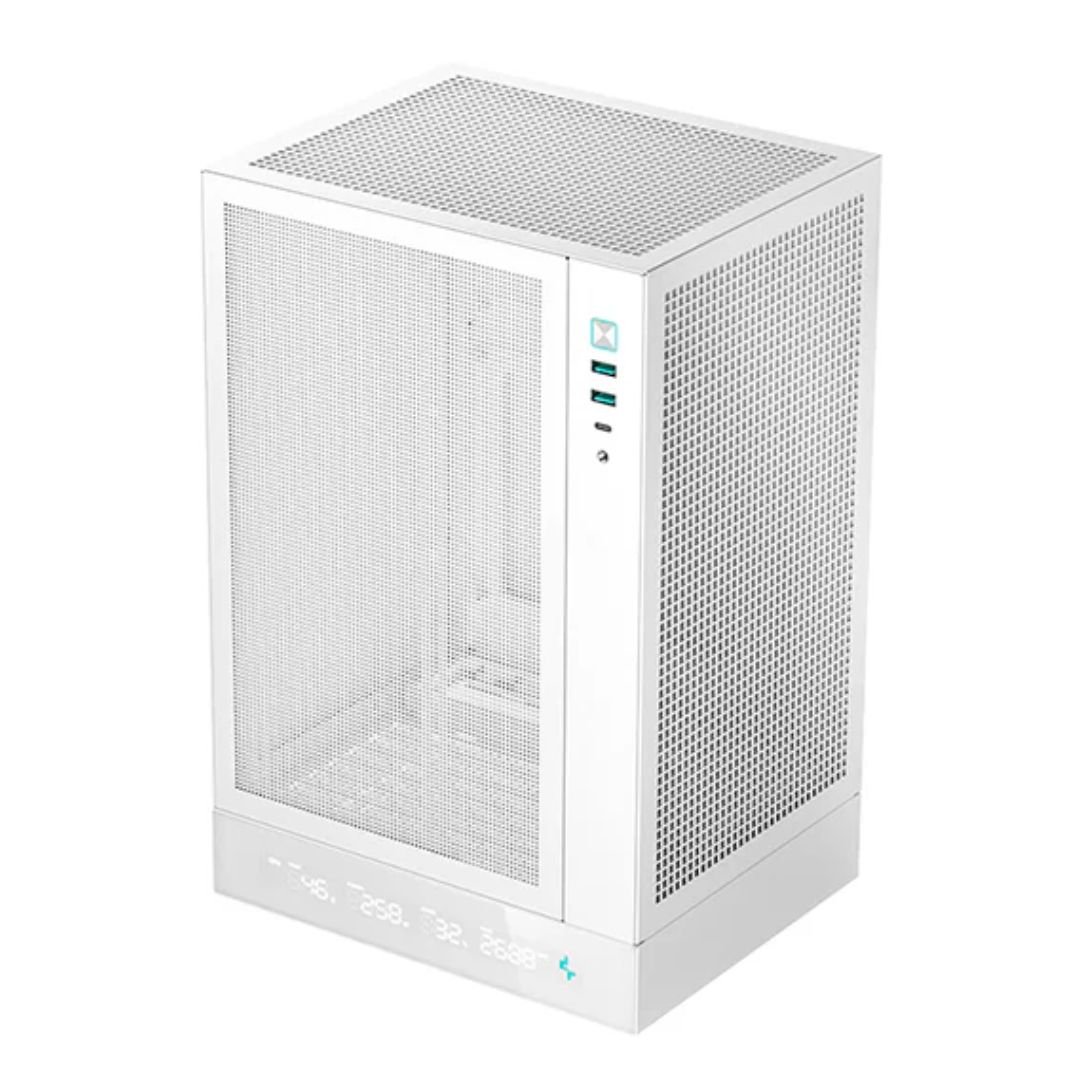

DeepCool CH170 DIGITAL WHT ITX Case, Digital Status Display, Extremely portable size, Abundant Airflow Ventilation, Mesh panels, Full sized air cooler | R-CH170-WHNPI0D-G-1

ITX case with digital, Extremely portable size, Abundant Airflow Ventilation, Mesh panels, Full sized air cooler support, 240mm AIO support, USB3.0/Type-C/Hybrid audio ports in I/O,3 Dust Filters, Direct install GPU

Technical Spec
Product Dimensions 380x200x250mm(L×W×H)
Net Weight 3.5Kg
Materials ABS+SPCC
Motherboard Support Mini-ITX
Front I/O Ports USB3.0×2、Audio×1、Gen2 TypeC×1
3.5′ Drive Bays 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
2.5′ Drive Bays 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
Expansion Slots 3 Slots
Pre-Installed Fans None
Fan Support Top:1×120 mm
Front: NA
Rear: 2×120 mm
Bottom:1×120 mm
Side : 2×120 mm
Radiator Support Side : 240mm
CPU Cooler Height Limit 172mm
GPU Size Limit Length: SFX/SFX-L: 305mm / ATX: 230mm
Height: 138mm
Width: 65mm (3 Slots)
Power Supply Type ATX PS2（maximum length: 140mm）/ SFX / SFX-L

Product Last Updated: 11/12/2025
