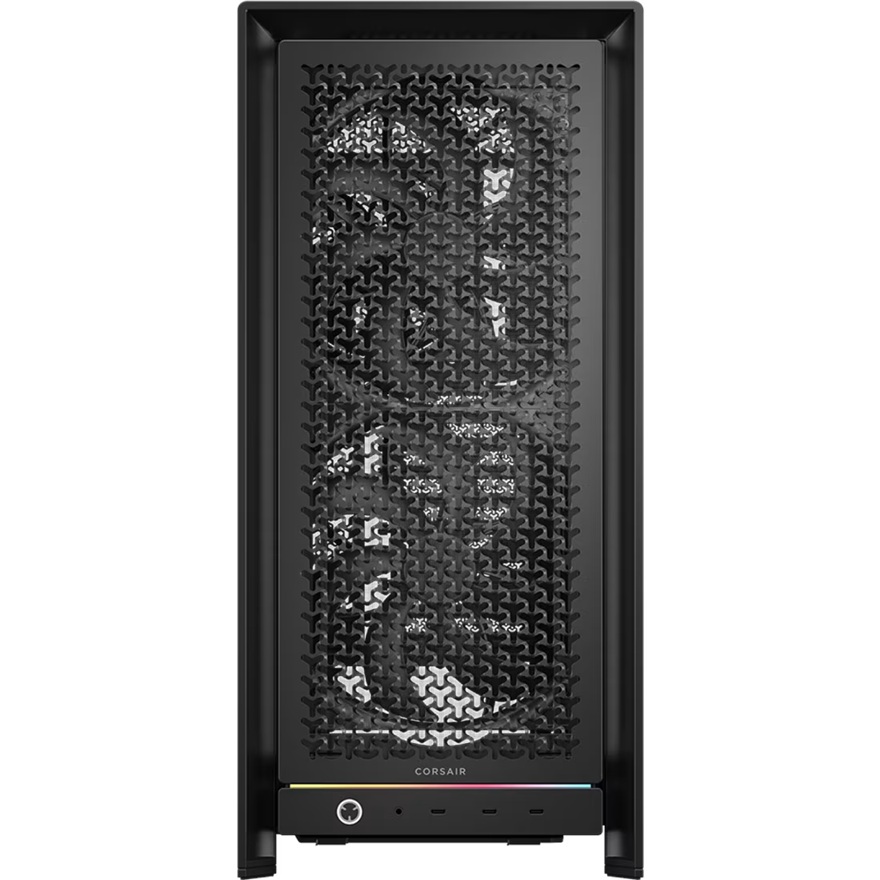

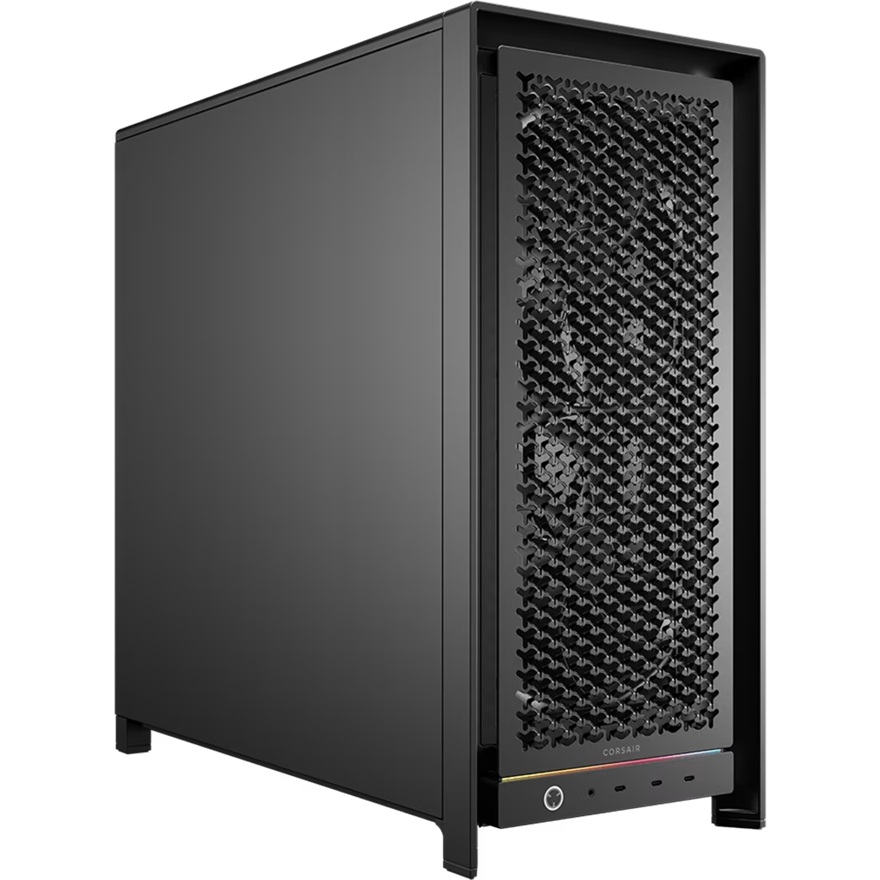

Corsair FRAME 5000D WORKSTATION Mid-Tower Case – Black, supports E-ATX, tempered glass, high airflow design, 420mm radiator, 450mm GPU support | CC-9011330-WW

Corsair FRAME 5000D WORKSTATION Mid-Tower Case – Black, supports E-ATX, tempered glass, high airflow design, 420mm radiator, 450mm GPU support

•A roomy chassis with 9 PCI slots for multi-GPU builds
•Steel side panels feature sound dampening material
•GPU immobilization and anti-sag options
•Support for SSI-EEB/CEB, reverse-connector motherboards

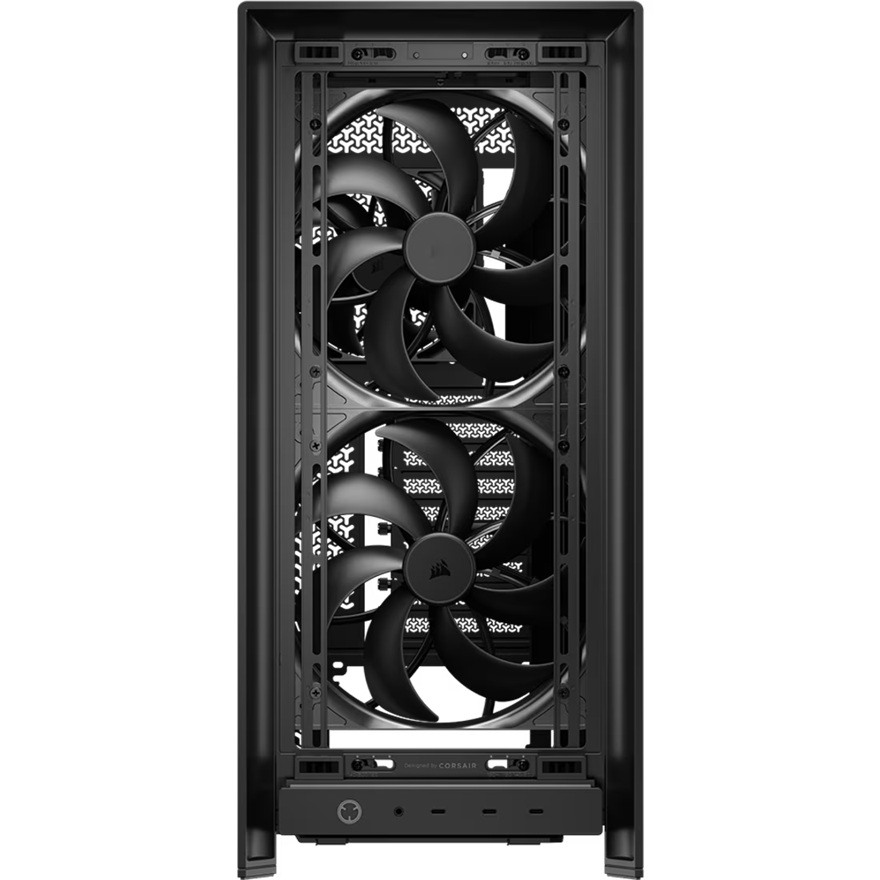

•Dual 200mm intake fans for quiet, powerful airflow
•Optional UV printing and custom hardware configurations available

Tech Specs
Case Supported Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm), SSI-CEB, SSI-EEB
Case Height 542mm
Case Length 556mm
Case Width 250mm
Material Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic
Color BLACK
Case Size Mid-Tower
Case Window Tempered Glass
Compatible Liquid Coolers H60, H100, H115, H150, NAUTILUS, TITAN
Maximum CPU Cooler Height 175mm
Case Front IO (1x) USB 3.2 Gen 2×2 Type-C, (2x) USB 3.2 Gen 1 Type-C, (1x) Audio in/out
Maximum GPU Length 450mm
Weight 15.48kg

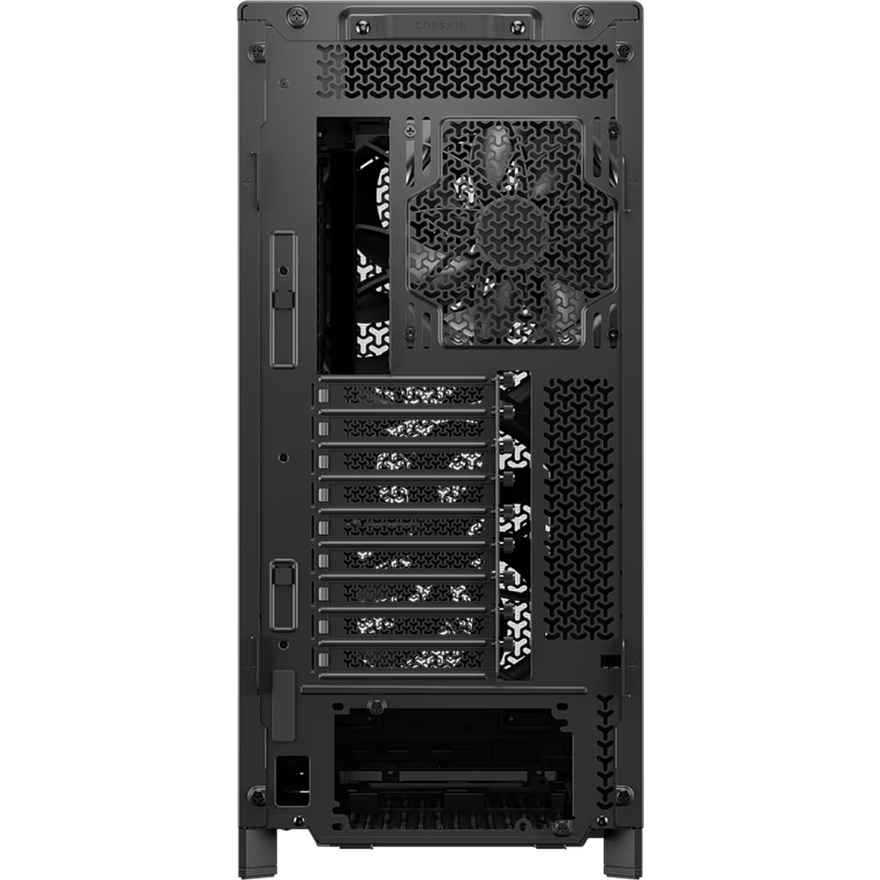

Case Expansion Slots 8 Horizontal or 3 Vertical
Case Power Supply ATX
Radiator Support – Top 420mm, 360mm, 280mm, 240mm
Radiator Support – Front 360mm, 280mm, 240mm
Radiator Support – Bottom None
Radiator Support – Side 360mm, 280mm, 240mm
Radiator Support – Rear 140mm, 120mm
Fan Support – Top 3x 120mm, 3x 140mm
Fan Support – Front 3x 120mm, 3x 140mm, 2x 200mm
Fan Support – Bottom 4x 120mm
Fan Support – Side 3x 120mm, 3x 140mm
Fan Support – Rear 1x 140mm, 1x 120mm
Front IO Motherboard Connections 1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio
Reverse Connector Motherboard Support Yes
Included Fans RS Series
Dust Filtration Yes
Cable Routing Space 42mm
RapidRoute Included Yes
Left Side Panel Tempered Glass
Right Side Panel Steel
Vertical Mount Support Supported (Riser Card Sold Separately)
