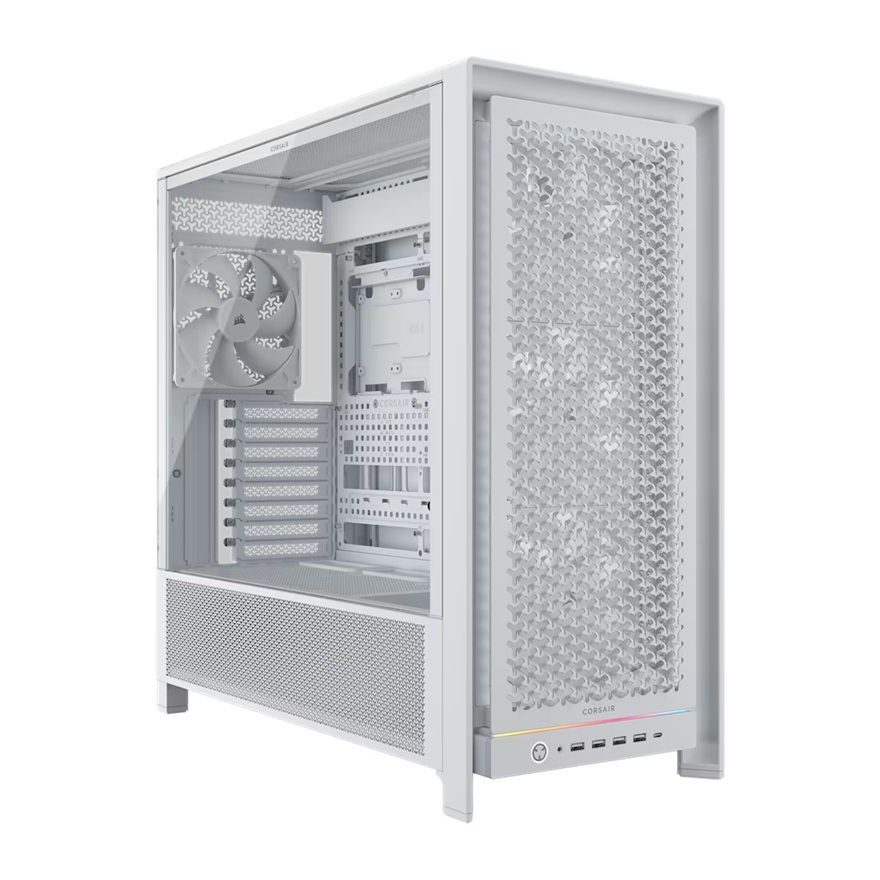

Corsair FRAME 5000D RS HIGH-AIRFLOW MID-TOWER PC CASE – WHITE, ATX, 450mm GPU, 175mm CPU cooler, 360mm rad, 4x RS140, 1x USB-C 3.2 Gen2 | CC-9011308-WW

Corsair FRAME 5000D RS HIGH-AIRFLOW MID-TOWER PC CASE – WHITE, ATX, 450mm GPU, 175mm CPU cooler, 360mm rad, 4x RS140, 1x USB-C 3.2 Gen2

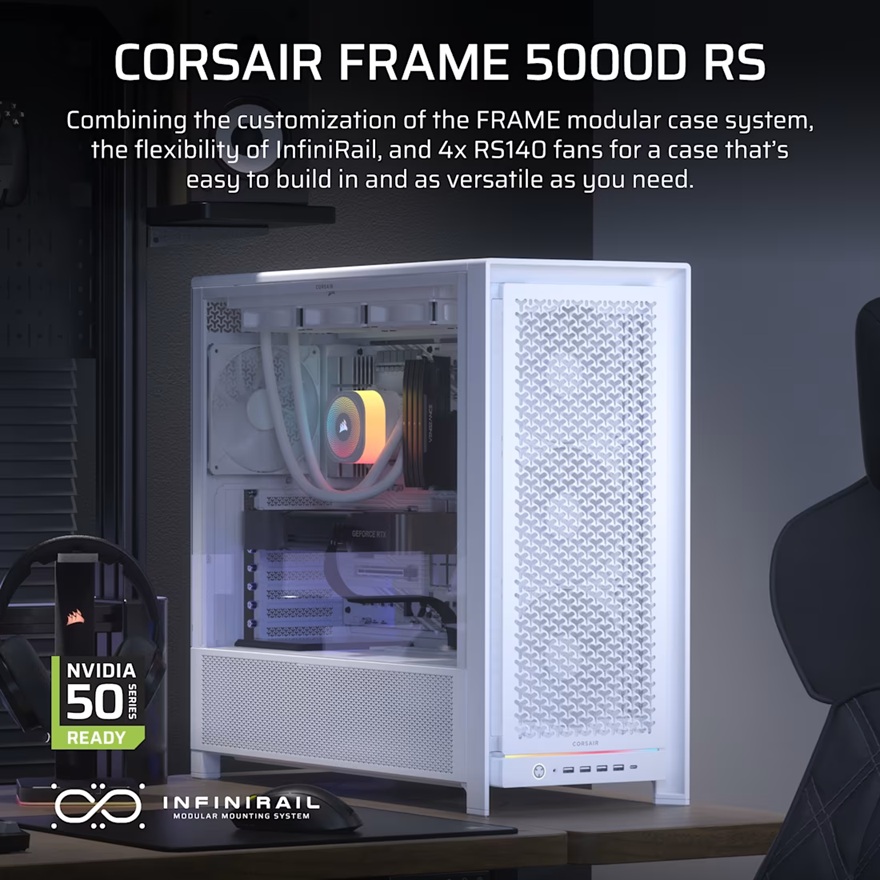

The CORSAIR FRAME 5000D RS is a modular and spacious mid-tower PC case featuring InfiniRail™ Fan Mounting System, RapidRoute 2.0 cable management, and is compatible with reverse connector motherboards.

Includes
•Fully-modular design for next-level customization
•4x RS140 Fans with daisy-chain connections
•InfiniRail Fan Mounting System for easier building
•Triple 360mm radiator support
•GPU anti-sag stabilization arm
•Compatible with reverse connector motherboards
•RapidRoute 2.0 pegboard motherboard tray and cable looms

TECH SPECIFICATION
Case Supported
Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Case Height
542

Case Length
556

Case Width
250

Material
Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic

Color
WHITE

Case Size
Mid-Tower

Case Window
Tempered Glass

Internal 3.5′ Drive Bays
2

Internal 2.5′ Drive Bays
6

Maximum CPU Cooler Height
175mm

Case Front IO

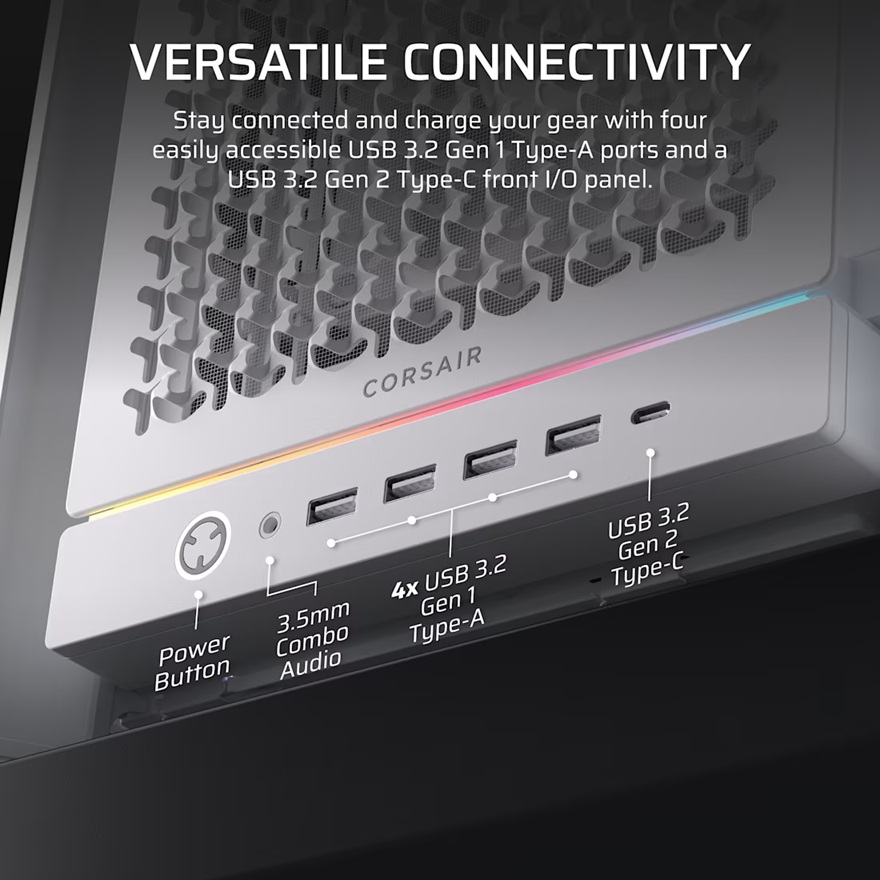

(1x) USB 3.2 Gen 2 Type-C, (4x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out

Maximum GPU Length
450mm

Weight
15.48kg

Case Expansion Slots
8 Horizontal or 3 Vertical

Case Power Supply
ATX

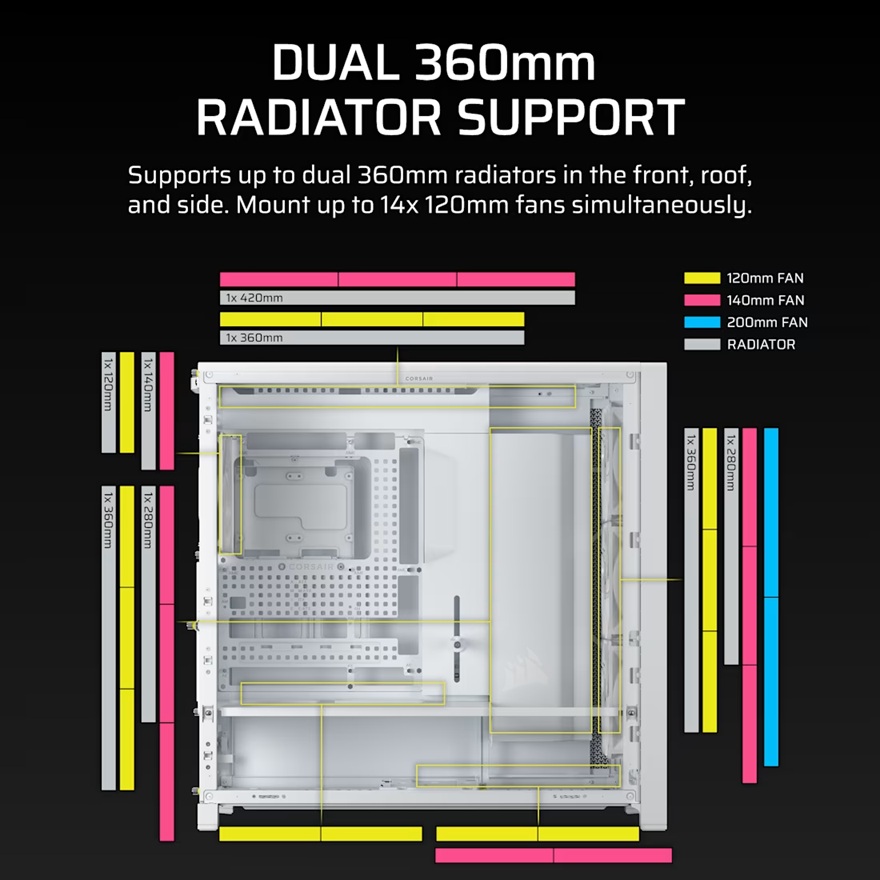

Radiator Support – Top
420mm, 360mm, 280mm, 240mm

Radiator Support – Front
360mm, 280mm, 240mm

Radiator Support – Bottom
None

Radiator Support – Side
360mm, 280mm, 240mm

Radiator Support – Rear
140mm, 120mm

Fan Support – Top
3x 120mm, 3x 140mm

Fan Support – Front
3x 120mm, 3x 140mm, 2x 200mm

Fan Support – Bottom
4x 120mm

Fan Support – Side
3x 120mm, 3x 140mm

Fan Support – Rear
1x 140mm, 1x 120mm

Front IO Motherboard Connections
1x HD Audio, 1x USB 3.2 Gen1, 1x USB-3.2 Gen2 Type-E, 1x F_PANEL, 1x 5V ARGB

Reverse Connector Motherboard Support
Yes

Included Fans
RS Series

Dust Filtration
Yes

Cable Routing Space
42mm

RapidRoute Included
Yes

Left Side Panel
Tempered Glass

Right Side Panel
Steel

Vertical Mount Support
Supported (Riser Card Sold Separately)

Product Last Updated: 11/12/2025
