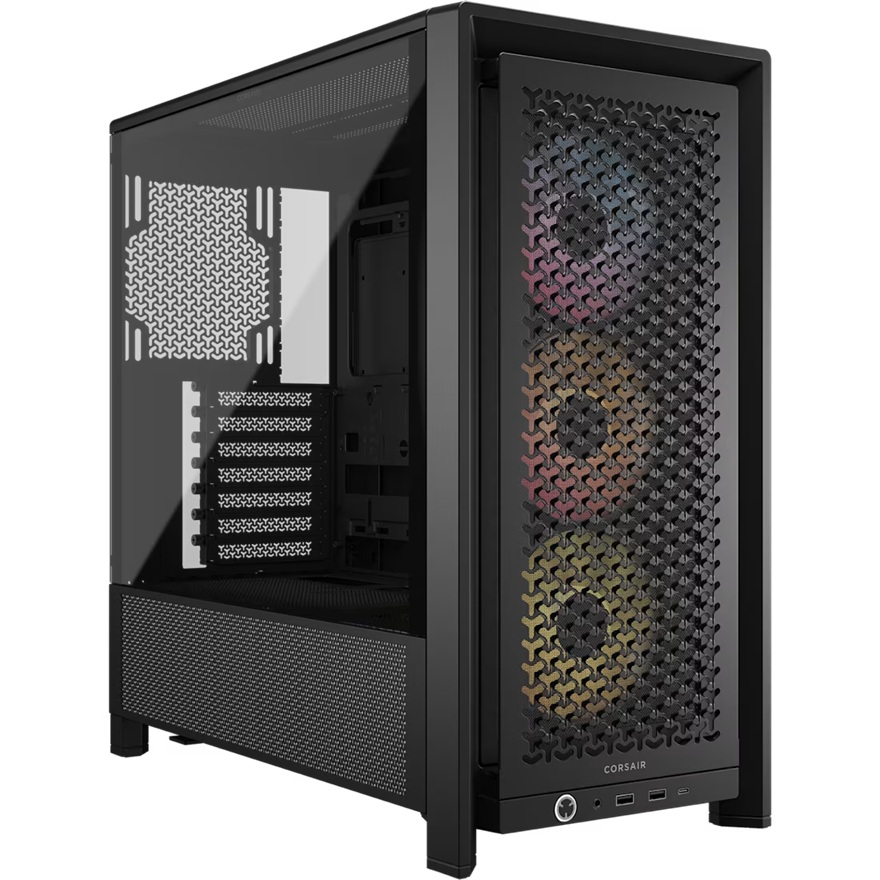

Corsair FRAME 4000D RS ARGB Modular Mid-Tower PC Case – Black, ATX, 430mm GPU, 170mm CPU cooler, 220mm PSU, 360mm rad, 1x USB-C 3.2 Gen2 | CC-9011296-WW

Corsair FRAME 4000D RS ARGB Modular Mid-Tower PC Case – Black, ATX, 430mm GPU, 170mm CPU cooler, 220mm PSU, 360mm rad, 1x USB-C 3.2 Gen2

The CORSAIR FRAME 4000D RS ARGB is a fully-modular and spacious mid-tower PC case featuring InfiniRail™ Fan Mounting System and compatible with reverse connector motherboards.

Includes

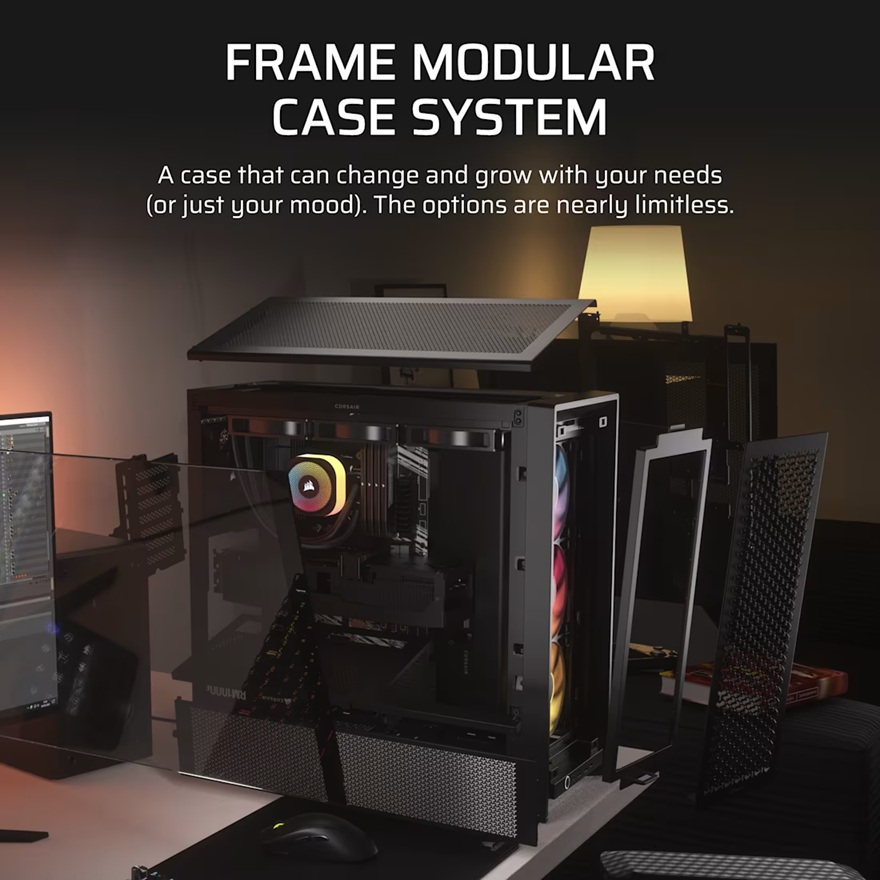

•Fully-modular design for next-level customization
•InfiniRail™ Fan Mounting System for easier building

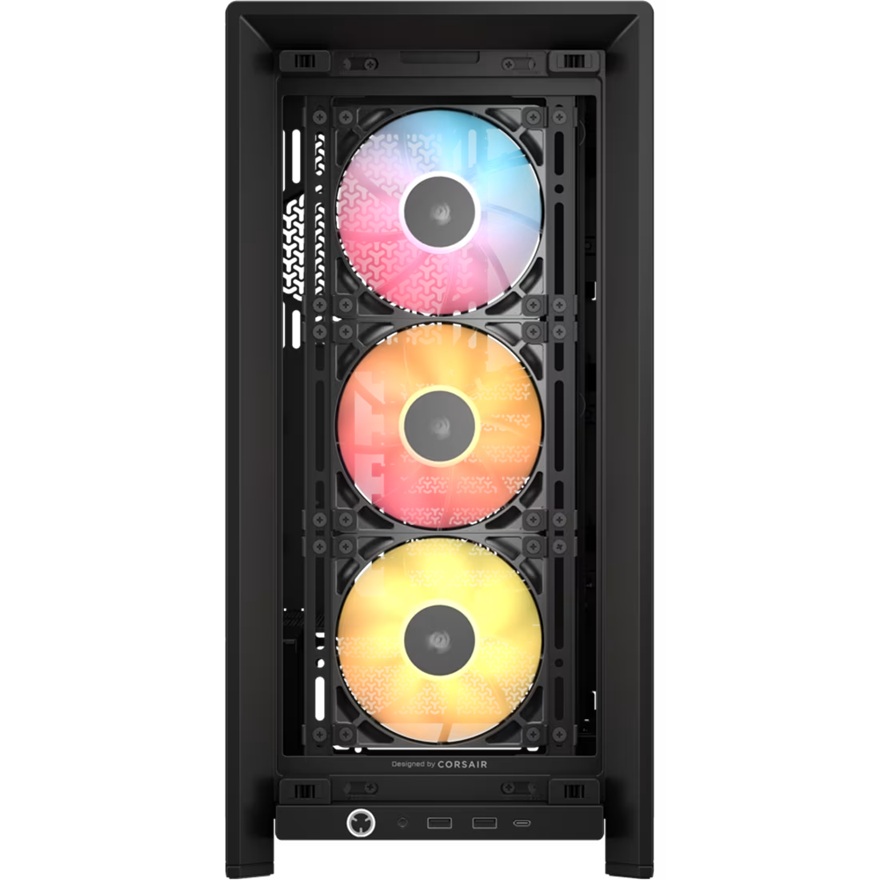

•Includes three RS120 ARGB performance fans
•Dual 360mm radiator support
•GPU anti-sag stabilization arm
•Compatible with reverse connector motherboards including ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH

TECH SPECIFICATIONS
Case Supported
Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Case Height
486

Case Length
490

Case Width
239

Material
Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic

Motherboard Support
Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Color
BLACK

Case Size
Mid-Tower

Radiator Compatibility
120mm, 140mm, 240mm, 280mm, 360mm

Compatible Liquid Coolers
H60, H100, H115, H150, NAUTILUS, TITAN

Case Warranty
2 Year

Internal 3.5′ Drive Bays
2

Internal 2.5′ Drive Bays
4

Maximum CPU Cooler Height
170mm

Maximum PSU Length
220mm

Case Front IO
(1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out

Maximum GPU Length
430mm

Weight
10.38kg

Case Expansion Slots
7 Horizontal or 3 Vertical

Case Power Supply
ATX

Radiator Support – Top
360mm, 280mm, 240mm

Radiator Support – Front
360mm, 280mm, 240mm

Radiator Support – Bottom
None

Radiator Support – Side
360mm, 280mm, 240mm

Radiator Support – Rear
140mm, 120mm

Fan Support – Top
3x 120mm, 2x 140mm

Fan Support – Front
3x 120mm, 2x 140mm, 2x 200mm

Fan Support – Bottom
2x 120mm

Fan Support – Side
3x 120mm, 2x 140mm

Fan Support – Rear
1x 120mm, 1x 140mm

Front IO Motherboard Connections
1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL

Reverse Connector Motherboard Support
Yes

Included Fans
RS ARGB Series

Dust Filtration
Yes

Cable Routing Space
37mm

RapidRoute Included
No

Left Side Panel
Tempered Glass

Right Side Panel
Steel

Vertical Mount Support
Supported (Riser Card Sold Separately)

Product Last Updated: 23/11/2025
