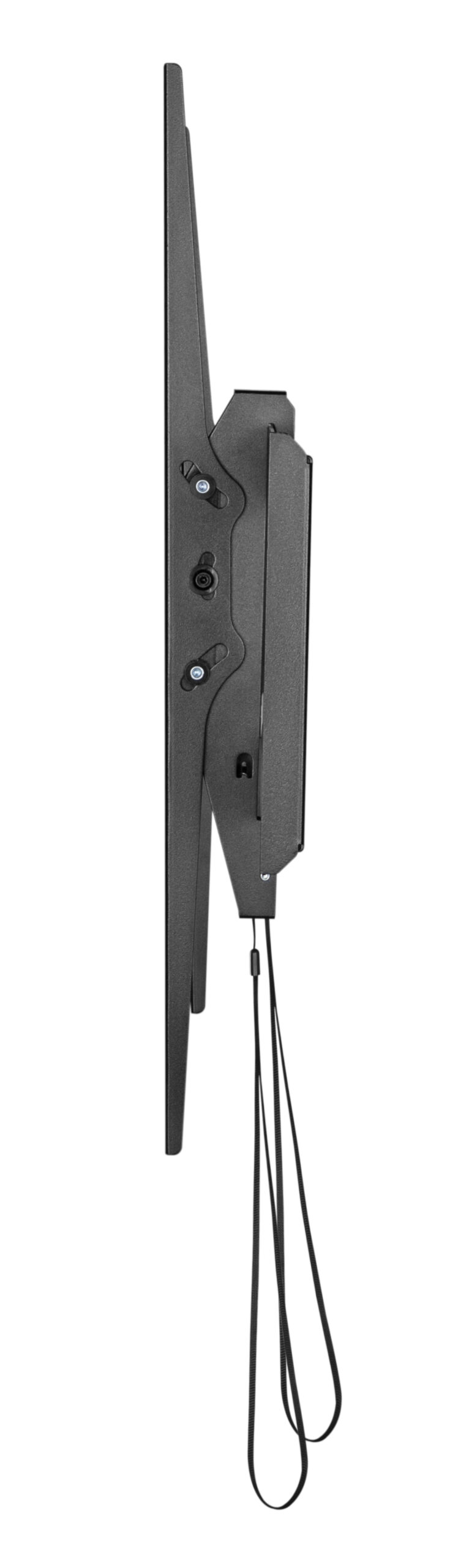

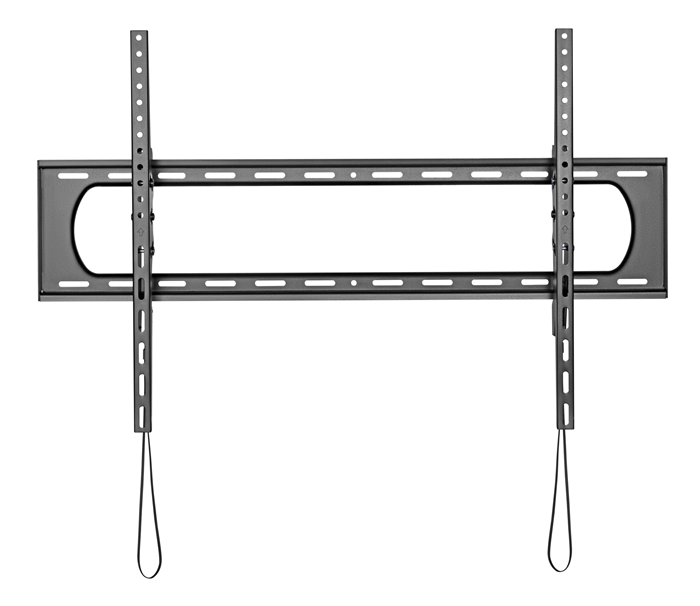

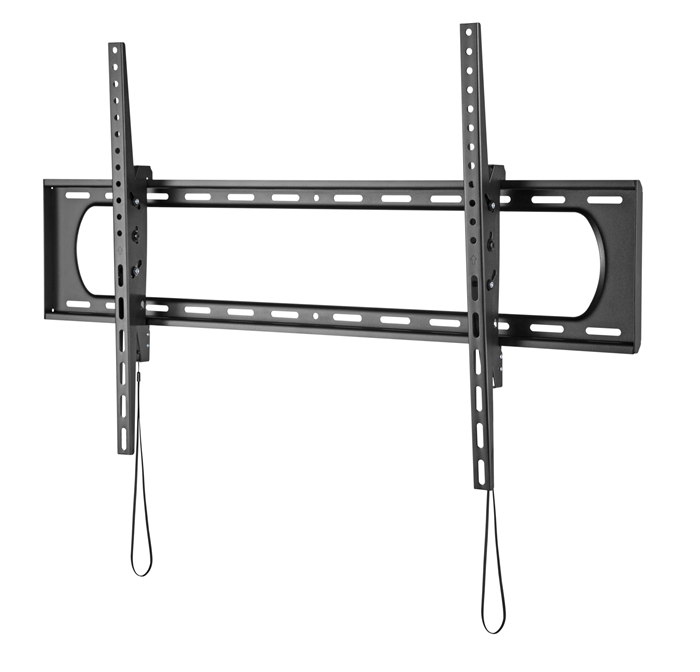

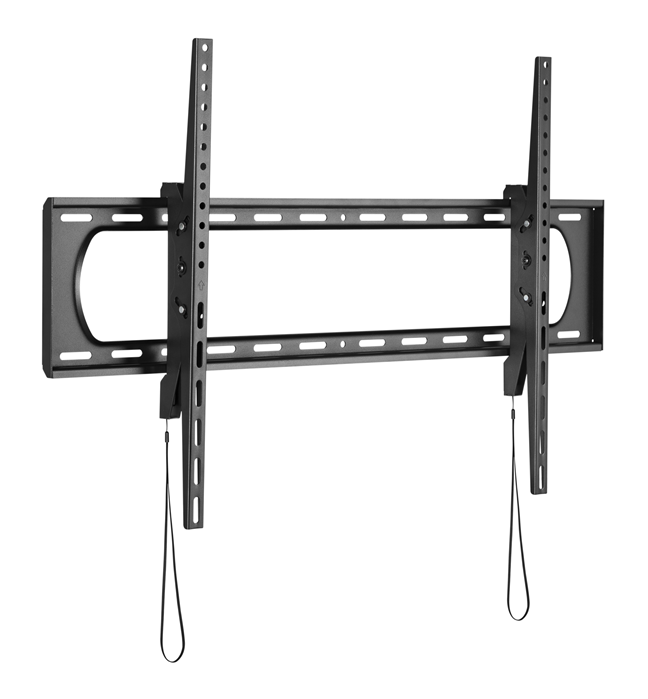

BrateckAffordable Heavy-Duty Tilt TV Wall Mount For 60’’~120’’ Fit Curved TV up to 120KG, VESA 50×50 up to 900×600 Fine Texture Black (LS) | LP73-69T

BrateckAffordable Affordable Heavy-Duty Tilt TV Wall Mount For 60’’~120’’ Fit Curved TV up to 120KG, VESA 50×50 up to 900×600 Fine Texture Black

FEATURES:
●Heavy-Duty Construction: provides extra strength and durability
●Toolless Tilt: allows for effortless positioning
●Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)
●Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
●Open Architecture: provides increased ventilation and easier access to wires

SPECIFICATIONS
Product Category: Tilt TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=2mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (Bracket Arm THK=0.079′ cold-rolled sheet,Wall Plate THK=0.079′ cold-rolled sheet)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 80x1005x602mm (3.1’x39.6’x23.7′)
Fit Screen Size: 60′-120′
Fit Curved TV: Yes
Mounting Hole Pattern: VESA Universal
VESA Compatible: 50×50,75×75,100×100,100×150,150×100,100×200,200×100,150×150,200×200,200×300,300×200,200×400,400×200,300×300,300×400,400×300,600×200,400×400,600×300,400×600,600×400,700×400,800×400,600×600,800×500,800×600,900×600
Max. Mounting Hole: 965x602mm
Weight Capacity: 120kg (264lbs)
Strength Tested: 4 Times Approved
Profile: 80mm (3.1′)
Tilt Range: +10°~-10°
Screen Freely Tilting: Yes
Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Bubble Level: Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
Certification: UL
Silk Screen: Can be silkscreen printed

Product Last Updated: 11/12/2025
